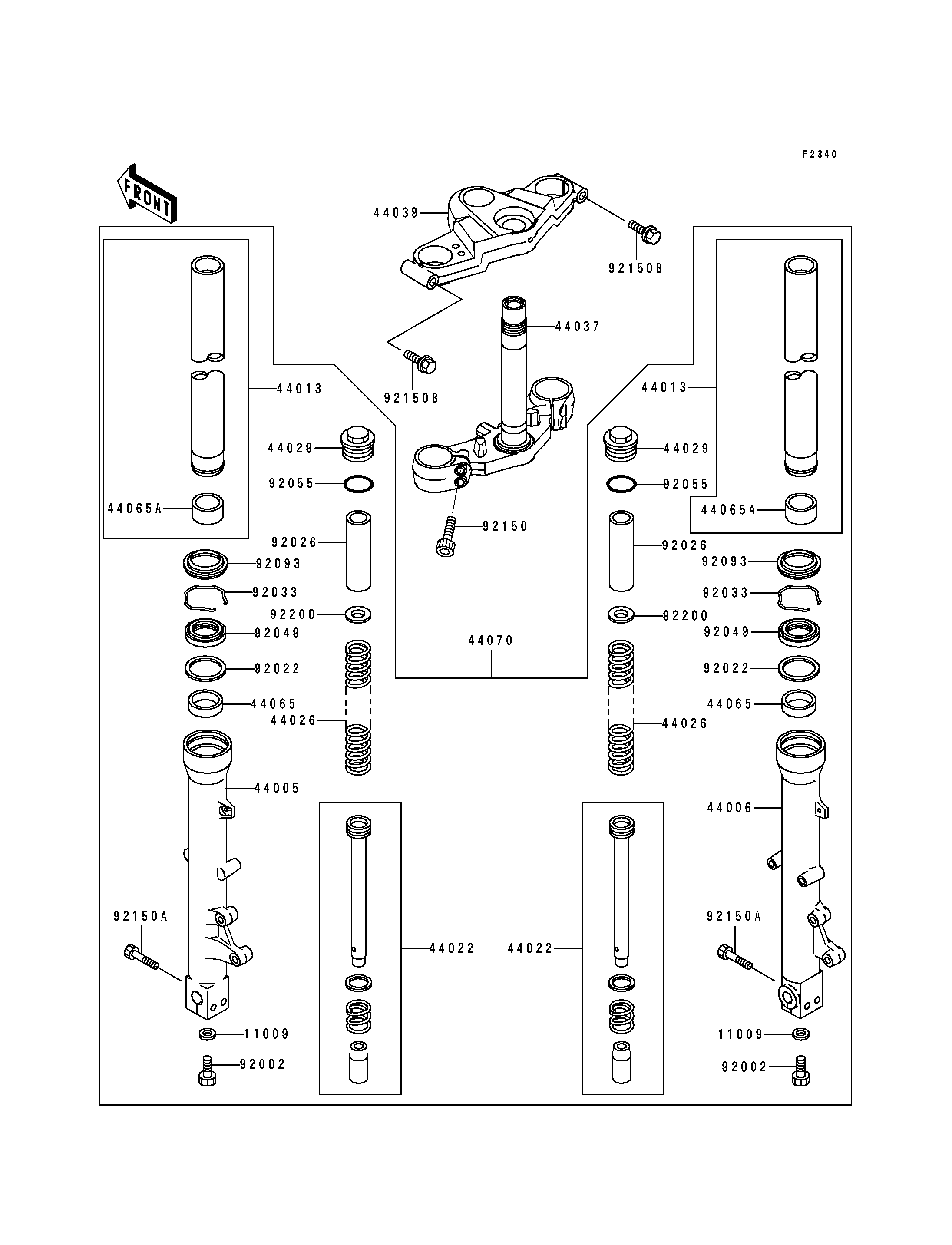

1996 GPZ 1100 ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK DRAIN PLUG 11009 11009-1553 2
PIPE-LEFT FORK OUTER 44005 44005-1351 1
PIPE-RIGHT FORK OUTER 44006 44006-1349 1
PIPE-FORK INNER 44013 44013-1408 2
CYLINDER-FORK 44022 44022-1305 2
SPRING-FRONT FORK 44026 44026-1578 2
SEAT-FORK SPRING 44029 44029-1147 2
HOLDER-FORK UNDER 44037 44037-1336 1
HOLDER-FORK UPPER 44039 44039-1258 1
BUSHING-FRONT FORK 44065 44065-1085 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1086 2
DAMPER-ASSY,FORK 44070 44070-1408 1
BOLT,FORK DRAIN 92002 92002-1650 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
SPACER,FORK,L=183 92026 92026-1465 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1356 2
RING-O 92055 92055-1321 2
SEAL,FORK OUTER TUBE 92093 92093-1359 2
BOLT,SOCKET,8X25 92150 92150-1172 4
BOLT,SOCKET,8X40 92150A 92150-1194 4
BOLT,FLANGED,10X45 92150B 92150-1210 2
WASHER 92200 92200-1191 2
