Parts Diagrams |

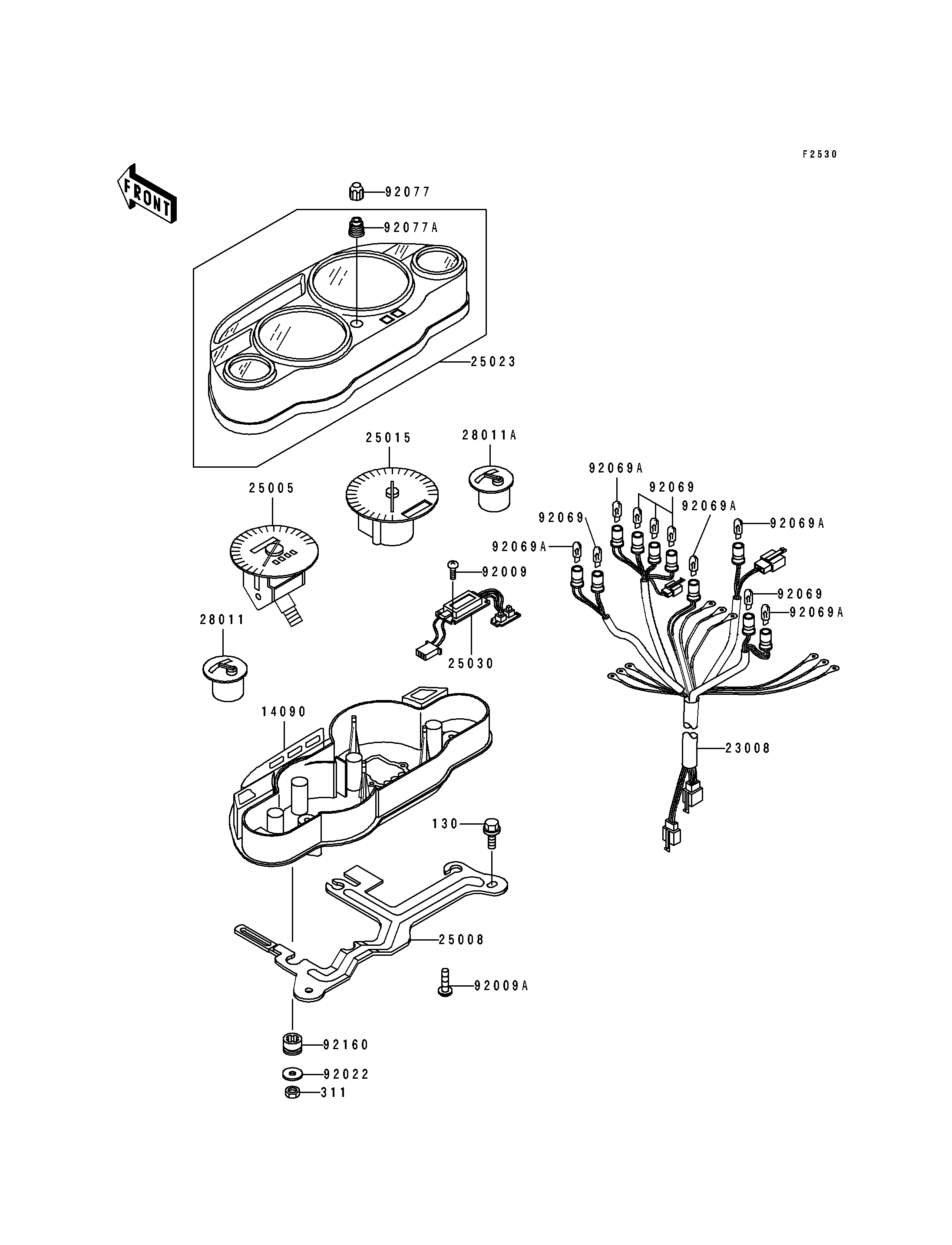

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,METER HOUSING | 14090 | 14090-1621 | 1 | ||
SOCKET-ASSY,METER | 23008 | 23008-1552 | 1 | ||
SPEEDOMETER,MPH | 25005 | 25005-1578 | 1 | ||
BRACKET-METER | 25008 | 25008-1199 | 1 | ||
TACHOMETER,X1000R/MIN | 25015 | 25015-1332 | 1 | ||
COVER-METER CASE,UPP | 25023 | 25023-1219 | 1 | ||
CLOCK,DIGITAL | 25030 | 25030-1003 | 1 | ||
METER,FUEL | 28011 | 28011-1145 | 1 | ||
METER,TEMP | 28011A | 28011-1146 | 1 | ||
SCREW,TAPPING,3X12 | 92009 | 92009-1255 | 2 | ||
SCREW,TAPPING,4X14 | 92009A | 92009-1503 | 4 | ||
WASHER,6.2X18X1.2 | 92022 | 92022-1369 | 3 | ||
BULB,12V 3.4W | 92069 | 92069-1007 | 5 | ||
BULB,12V 1.7W | 92069A | 92069-1059 | 5 | ||
KNOB,TRIP RESET | 92077 | 92077-1094 | 1 | ||
KNOB,TRIP RESET | 92077A | 92077-1112 | 1 | ||
DAMPER | 92160 | 92160-1461 | 3 | ||
BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 2 | ||
NUT-HEX,6MM | 311 | 311B0600 | 3 |
COVER,METER HOUSING | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,METER | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPEEDOMETER,MPH | |
REF # | 25005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-METER | |
REF # | 25008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TACHOMETER,X1000R/MIN | |
REF # | 25015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-METER CASE,UPP | |
REF # | 25023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLOCK,DIGITAL | |
REF # | 25030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
METER,FUEL | |
REF # | 28011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
METER,TEMP | |
REF # | 28011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,3X12 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X14 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,6.2X18X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BULB,12V 3.4W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BULB,12V 1.7W | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
KNOB,TRIP RESET | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB,TRIP RESET | |
REF # | 92077A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X14,BLACK | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX,6MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
