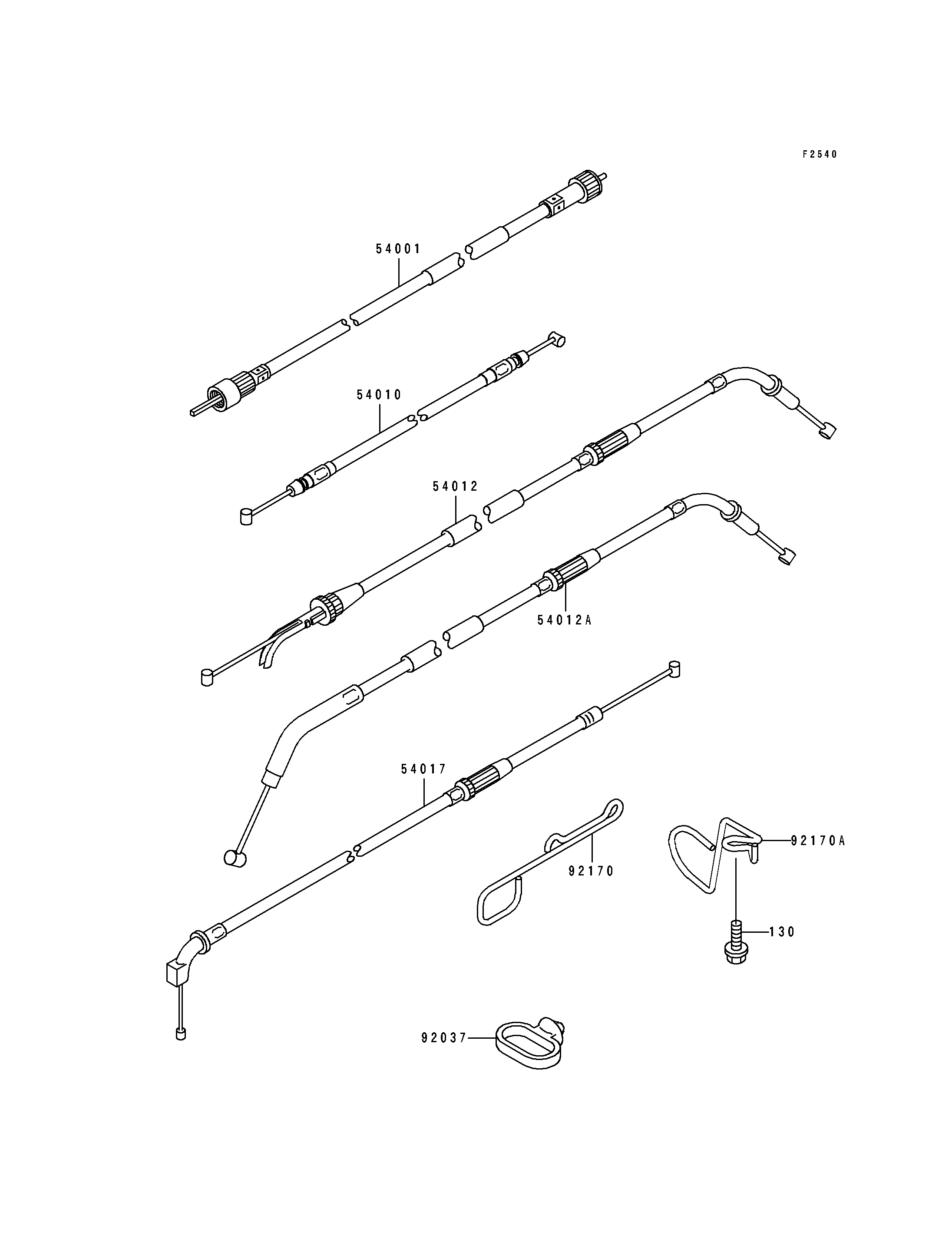

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-SPEEDOMETER 54001 54001-1184 1
CABLE,SEAT LOCK 54010 54010-1101 1
CABLE-THROTTLE,OPENING 54012 54012-1493 1
CABLE-THROTTLE,CLOSING 54012A 54012-1494 1
CABLE-STARTER 54017 54017-1171 1
CLAMP,CABLE 92037 92037-1459 1
CLAMP,CABLE 92170 92170-1183 1
CLAMP,CABLE 92170A 92170-1627 1
BOLT-FLANGED 130 130J0610 1
