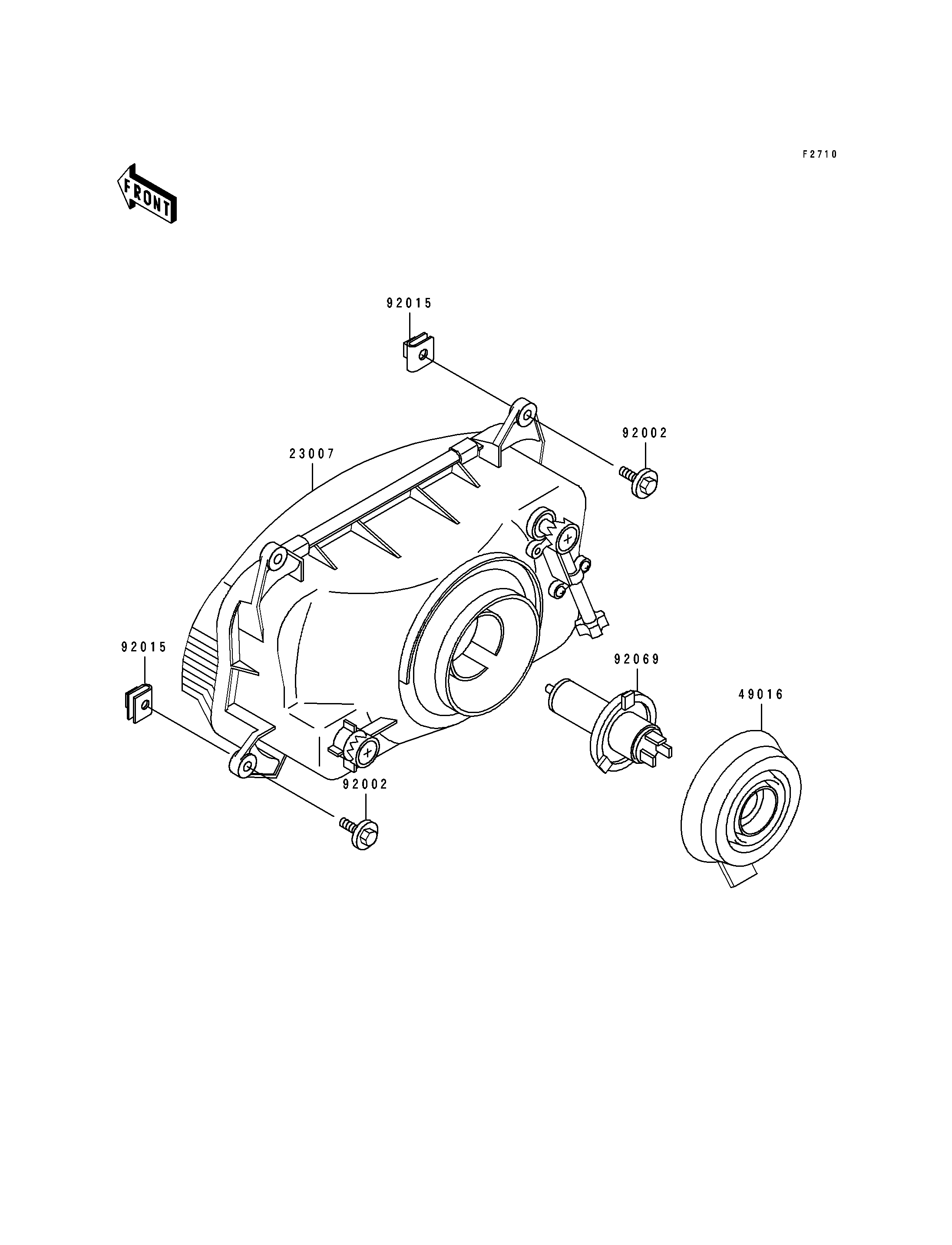

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,HEAD LAMP 23007 23007-1333 1
COVER-SEAL,HEAD LAMP SOCKET 49016 49016-1137 1
BOLT,6X25 92002 92002-1320 4
NUT,6MM 92015 92015-1094 4
BULB,12V 60/55W,H4 92069 92069-1002 1
