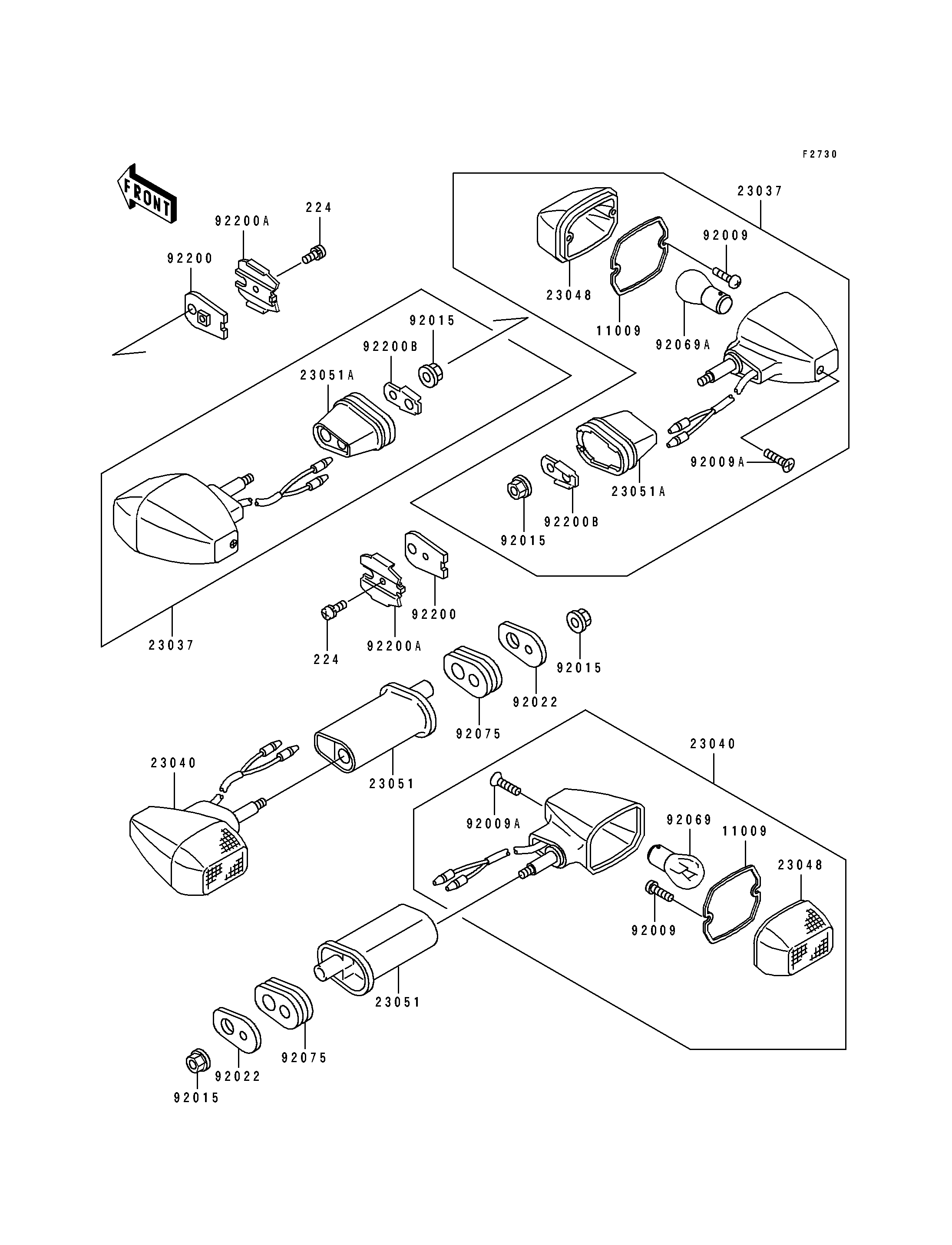

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP 11009 11009-1402 4
LAMP-ASSY-SIGNAL,FR 23037 23037-1299 2
LAMP-SIGNAL,RR 23040 23040-1195 2
LENS-SIGNAL LAMP 23048 23048-1054 4
BRACKET-SIGNAL LAMP 23051 23051-1164 2
BRACKET-SIGNAL LAMP,FR 23051A 23051-1207 2
SCREW,TAPPING,3X16 92009 92009-1115 8
SCREW,TAPPING,4X20 92009A 92009-1304 4
NUT,FLANGED,6MM 92015 92015-1367 4
WASHER,SIGNAL LAMP 92022 92022-1672 2
BULB,12V 32CP(23W) 92069 92069-055 2
BULB,12V 32/3CP(23/8W) 92069A 92069-060 2
DAMPER,SIGNAL LAMP 92075 92075-1698 2
WASHER,SIGNAL LAMP 92200 92200-1015 2
WASHER,SIGNAL LAMP 92200A 92200-1016 2
WASHER 92200B 92200-1021 2
SCREW-PAN-WP-CROS,4X8 224 224C0408 2
