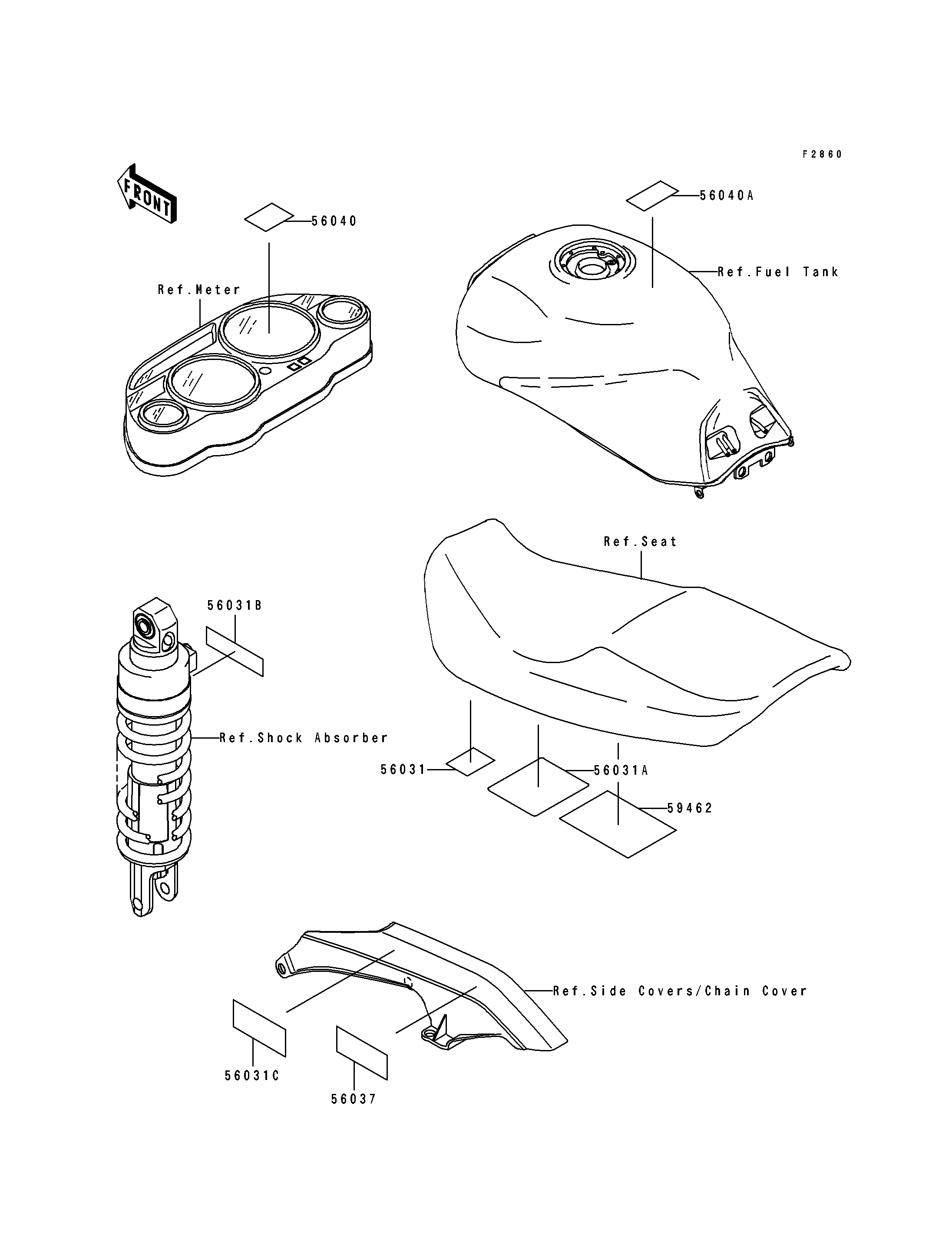

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,OIL&OIL FILTER 56031 56031-1727 1
LABEL-MANUAL,DAILY SAFETY 56031A 56031-1932 1
LABEL-MANUAL,REAR SUSPENSION 56031B 56031-1943 1
LABEL-MANUAL,CHAIN 56031C 56031-1989 1
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1668 1
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1
LABEL-WARNING,EVAPO 56040A 56040-1121 1 CA
LABEL-CERTIFICATION,EVAPO ROUT 59462 59462-1752 1 CA
