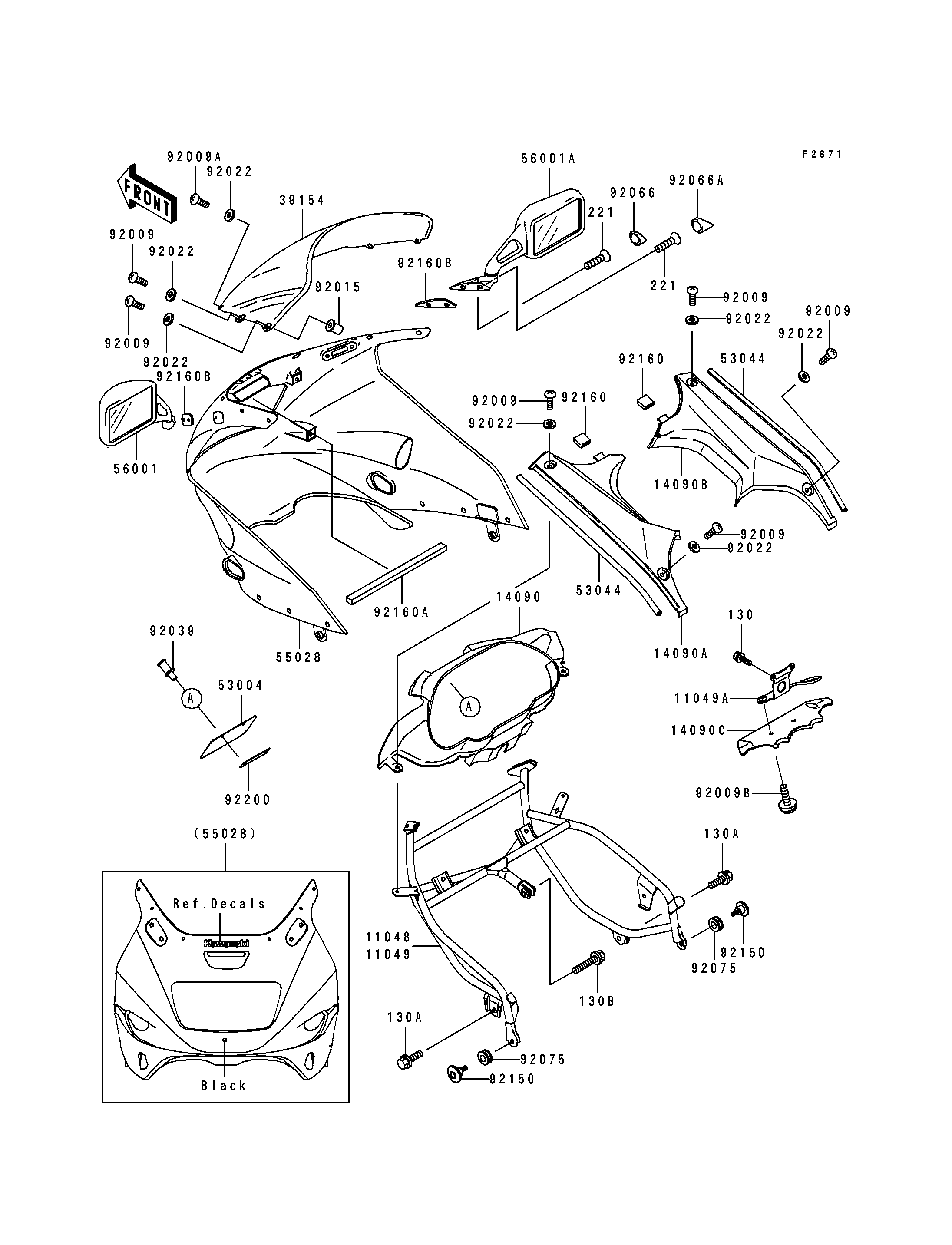

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,UPP COWLING | 11048 | 11048-1987 | 1 | US | |
| BRACKET,UPP COWLING | 11049 | 11049-1065 | 1 | CA | |
| BRACKET | 11049A | 11049-1528 | 1 | ||
| COVER,INNER,FR | 14090 | 14090-1546 | 1 | ||
| COVER,INNER,LH | 14090A | 14090-1547 | 1 | ||
| COVER,INNER,RH | 14090B | 14090-1548 | 1 | ||
| COVER | 14090C | 14090-1658 | 1 | ||
| WINDSHIELD | 39154 | 39154-1130 | 1 | ||
| MAT,INNER COVER | 53004 | 53004-1094 | 1 | ||
| TRIM,L=404 | 53044 | 53044-1284 | 2 | ||
| COWLING,UPP,P.G.BLACK | 55028 | 55028-1334-RL | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-1449 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1450 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 8 | ||
| SCREW,5X20 | 92009A | 92009-1656 | 2 | ||
| SCREW,6X10 | 92009B | 92009-1661 | 2 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 6 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 10 | ||
| RIVET | 92039 | 92039-1147 | 2 | ||
| PLUG | 92066 | 92066-1428 | 2 | ||
| PLUG | 92066A | 92066-1429 | 2 | ||
| DAMPER | 92075 | 92075-1634 | 2 | ||
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 2 | ||
| DAMPER | 92160 | 92160-1190 | 2 | ||
| DAMPER | 92160A | 92160-1646 | 1 | ||
| DAMPER,MIRROR | 92160B | 92160-1665 | 2 | ||
| WASHER,MAT | 92200 | 92200-1267 | 1 | ||
| BOLT-FLANGED,6X35 | 130 | 130J0635 | 2 | ||
| BOLT-FLANGED | 130A | 130J0812 | 2 | ||
| BOLT-FLANGED,8X25,BLACK | 130B | 130J0825 | 1 | ||
| SCREW-CSK-CROS,6X25,BLACK | 221 | 221C0625 | 4 |
