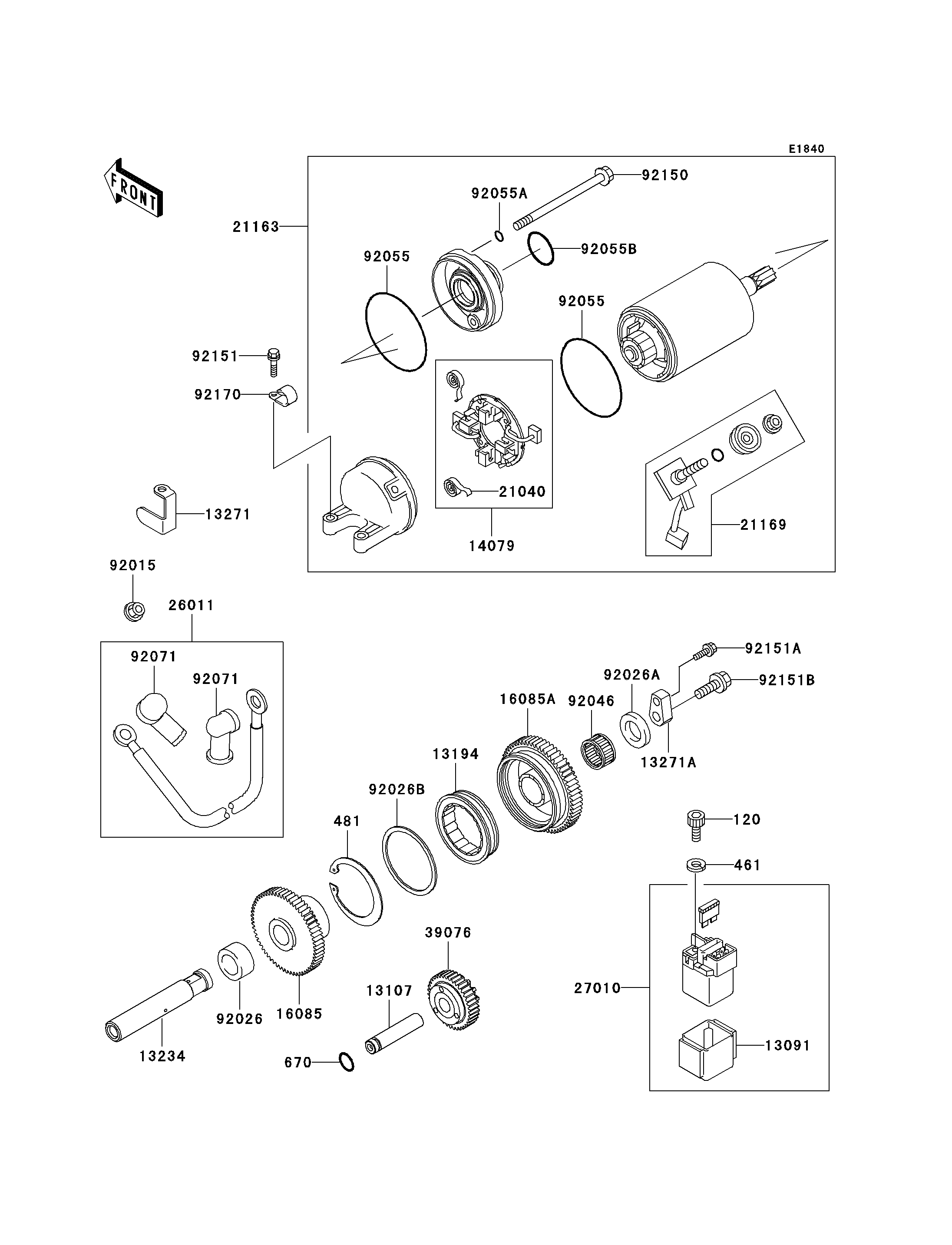

Parts Diagrams |
120
461
481
670
13091
13107
13194
13234
13271
13271A
14079
16085
16085A
21040
21163
21169
26011
27010
39076
92015
92026
92026A
92026B
92046
92055
92055
92055A
92055B
92071
92071
92150
92151
92151A
92151B
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120S0510 | 2 | ||
WASHER-SPRING,5MM,BLACK | 461 | 461K0500 | 2 | ||
CIRCLIP | 481 | 481J6200 | 1 | ||
O RING,9MM | 670 | 670D1509 | 1 | ||
HOLDER,MAGNETIC SWITCH | 13091 | 13091-1884 | 1 | ||
SHAFT | 13107 | 13107-1422 | 1 | ||
CLUTCH-ONEWAY | 13194 | 13194-1095 | 1 | ||
SHAFT-COMP | 13234 | 13234-1114 | 1 | ||
PLATE | 13271 | 13271-1231 | 1 | ||
PLATE | 13271A | 13271-1541 | 1 | ||
HOLDER-ASSY,CARBON BRUSH | 14079 | 14079-1082 | 1 | ||
GEAR | 16085 | 16085-1328 | 1 | ||
GEAR | 16085A | 16085-1343 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1051 | 2 | ||
STARTER-ELECTRIC | 21163 | 21163-1302 | 1 | ||
TERMINAL,STARTER | 21169 | 21169-1058 | 1 | ||
WIRE-LEAD | 26011 | 26011-1749 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1327 | 1 | ||
LIMITER | 39076 | 39076-1074 | 1 | ||
NUT | 92015 | 92015-1623 | 1 | ||
SPACER,LH | 92026 | 92026-1541 | 1 | ||
SPACER,RH | 92026A | 92026-1542 | 1 | ||
SPACER,ONEWAY CLUTCH | 92026B | 92026-1550 | 1 | ||
BEARING-NEEDLE | 92046 | 92046-1288 | 1 | ||
RING-O,62MM | 92055 | 92055-1260 | 2 | ||
RING-O,4.5MM | 92055A | 92055-1261 | 2 | ||
RING-O,24.4MM | 92055B | 92055-1262 | 1 | ||
GROMMET,STARTER TERMINAL | 92071 | 92071-1120 | 2 | ||
BOLT | 92150 | 92150-1237 | 2 | ||
BOLT,6X25 | 92151 | 92151-1130 | 2 | ||
BOLT,6X22 | 92151A | 92151-1411 | 1 | ||
BOLT,8X22 | 92151B | 92151-1543 | 1 | ||
CLAMP,HARNESS | 92170 | 92170-1900 | 1 |
