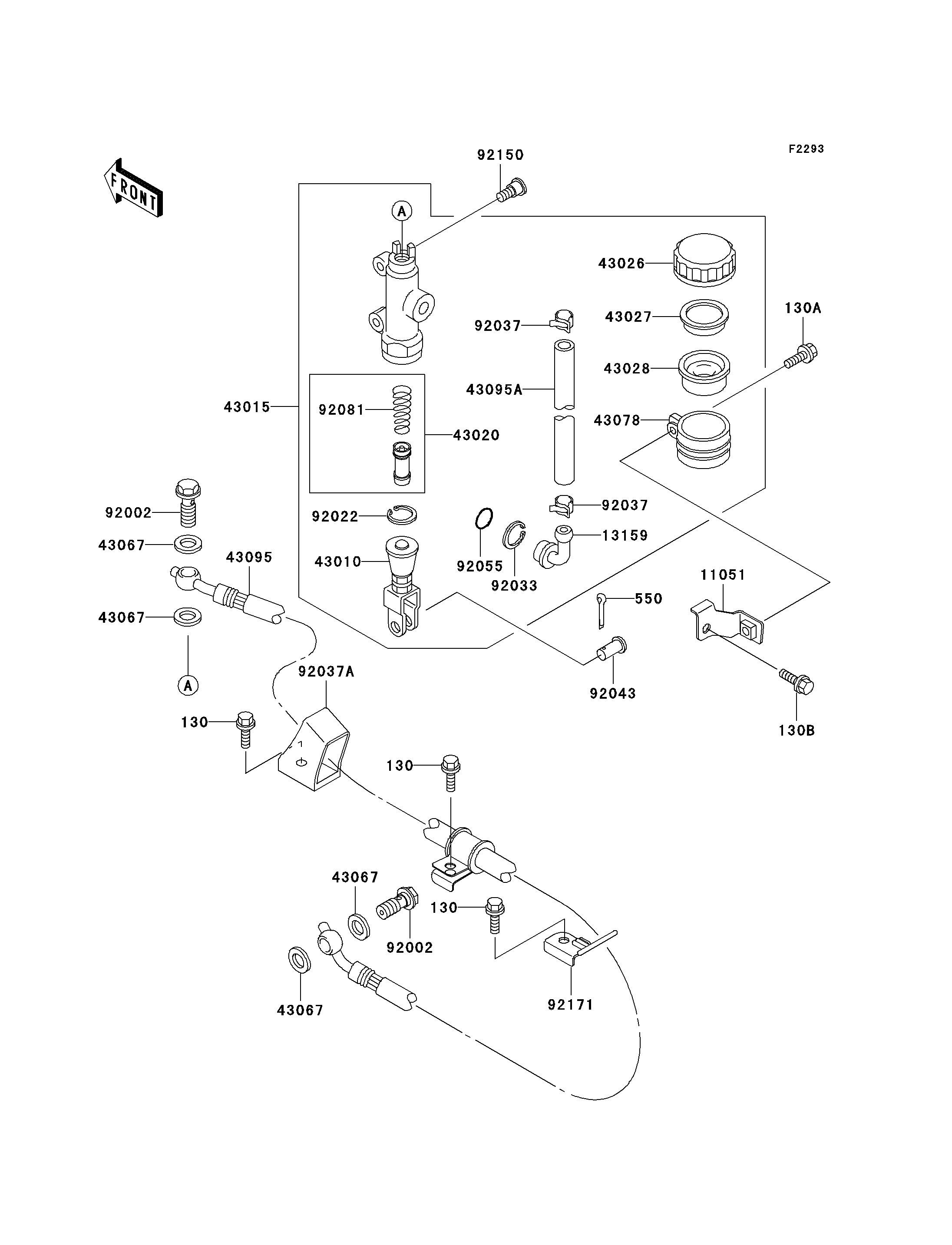

2000 Ninja® ZX™-12R - Rear Master Cylinder
130
130
130
130A
130B
550
11051
13159
43010
43015
43020
43026
43027
43028
43067
43067
43067
43067
43078
43095
43095A
92002
92002
92022
92033
92037
92037
92037A
92043
92055
92081
92150
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0610 | 3 | ||
BOLT-FLANGED,6X16,BLACK | 130A | 130J0616 | 1 | ||
BOLT-FLANGED | 130B | 130J0620 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
BRACKET,RESERVOIR TANK | 11051 | 11051-1378 | 1 | ||
CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1055 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1649 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1082 | 1 | ||
HOSE-BRAKE,RR | 43095 | 43095-1154 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43095A | 43095-1161 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
WASHER,CIRCRIP | 92022 | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
CLAMP,HOSE | 92037A | 92037-1896 | 1 | ||
PIN,8MM | 92043 | 92043-1303 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
SPRING,MASTER CYLINDER | 92081 | 92081-1737 | 1 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1843 | 2 | ||
CLAMP,BRAKE HOSE,RR | 92171 | 92171-1162 | 1 |
