Parts Diagrams |

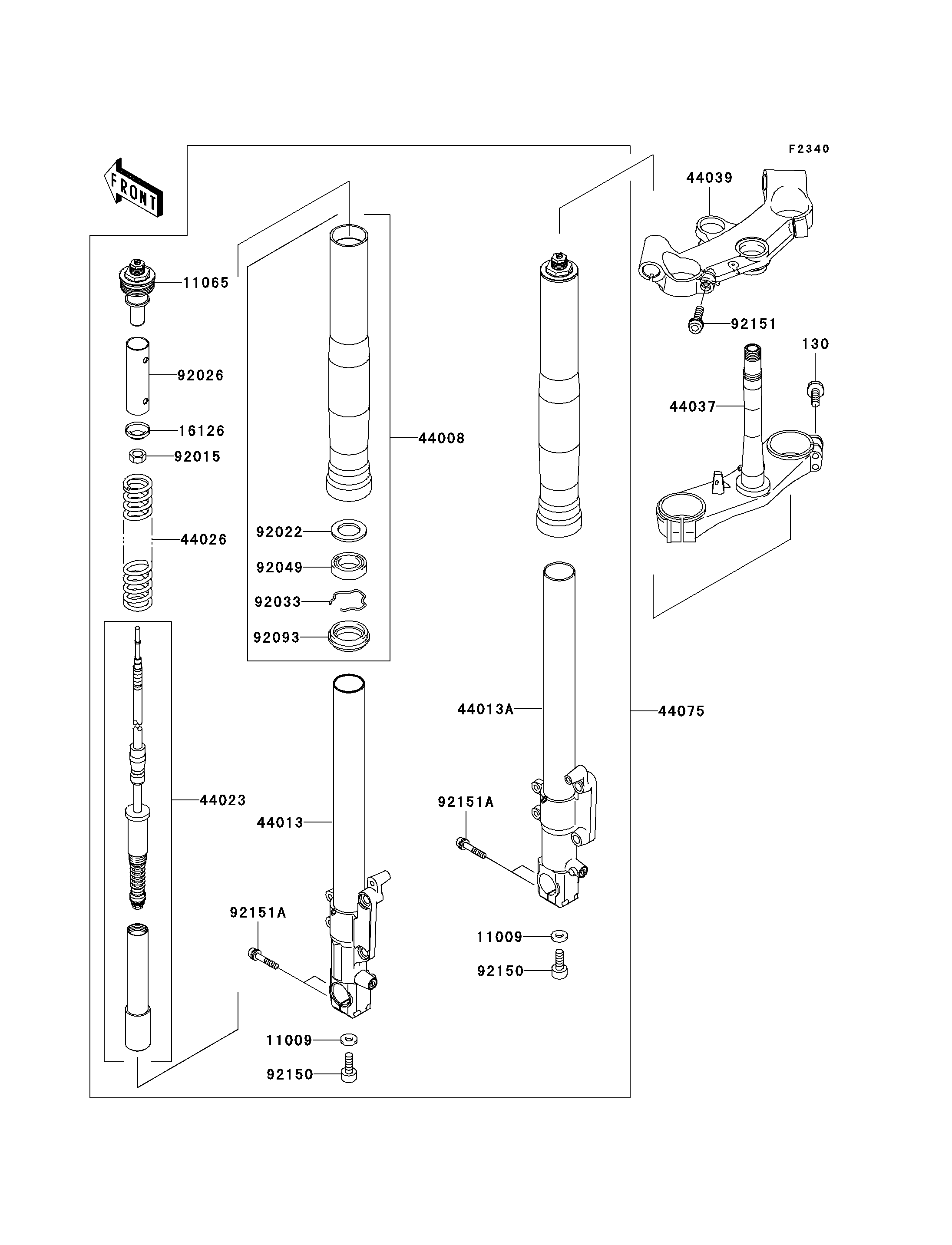

130
11009
11009
11065
16126
44008
44013
44013A
44023
44026
44037
44039
44075
92015
92022
92026
92033
92049
92093
92150
92150
92151
92151A
92151A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X35 | 130 | 130G0835 | 4 | ||
GASKET,FORK CYLINDER BOLT | 11009 | 11009-1127 | 2 | ||
CAP | 11065 | 11065-1140 | 2 | ||
VALVE | 16126 | 16126-1381 | 2 | ||
PIPE-FORK OUTER | 44008 | 44008-1047 | 2 | ||
PIPE-FORK INNER,LH | 44013 | 44013-1469 | 1 | ||
PIPE-FORK INNER,RH | 44013A | 44013-1470 | 1 | ||
CYLINDER-SET-FORK | 44023 | 44023-1143 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-1700 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1395 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1298 | 1 | ||
DAMPER-SET-FORK | 44075 | 44075-1105 | 1 | ||
NUT | 92015 | 92015-1905 | 2 | ||
WASHER | 92022 | 92022-1299 | 2 | ||
SPACER,FORK,L=109 | 92026 | 92026-1604 | 2 | ||
RING-SNAP | 92033 | 92033-1077 | 2 | ||
SEAL-OIL,FORK OUTER TUBE | 92049 | 92049-1522 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1480 | 2 | ||
BOLT,12X22 | 92150 | 92150-1398 | 2 | ||
BOLT,SOCKET,8X25 | 92151 | 92151-1681 | 2 | ||
BOLT,SOCKET,8X40 | 92151A | 92151-1683 | 4 |
BOLT-FLANGED,8X35 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,FORK CYLINDER BOLT | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE-FORK OUTER | |
REF # | 44008 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER,LH | |
REF # | 44013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER,RH | |
REF # | 44013A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-SET-FORK | |
REF # | 44023 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK | |
REF # | 44026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-FORK UNDER | |
REF # | 44037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UPPER | |
REF # | 44039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER-SET-FORK | |
REF # | 44075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPACER,FORK,L=109 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,FORK OUTER TUBE | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FORK OUTER TUBE | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,12X22 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X25 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X40 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
