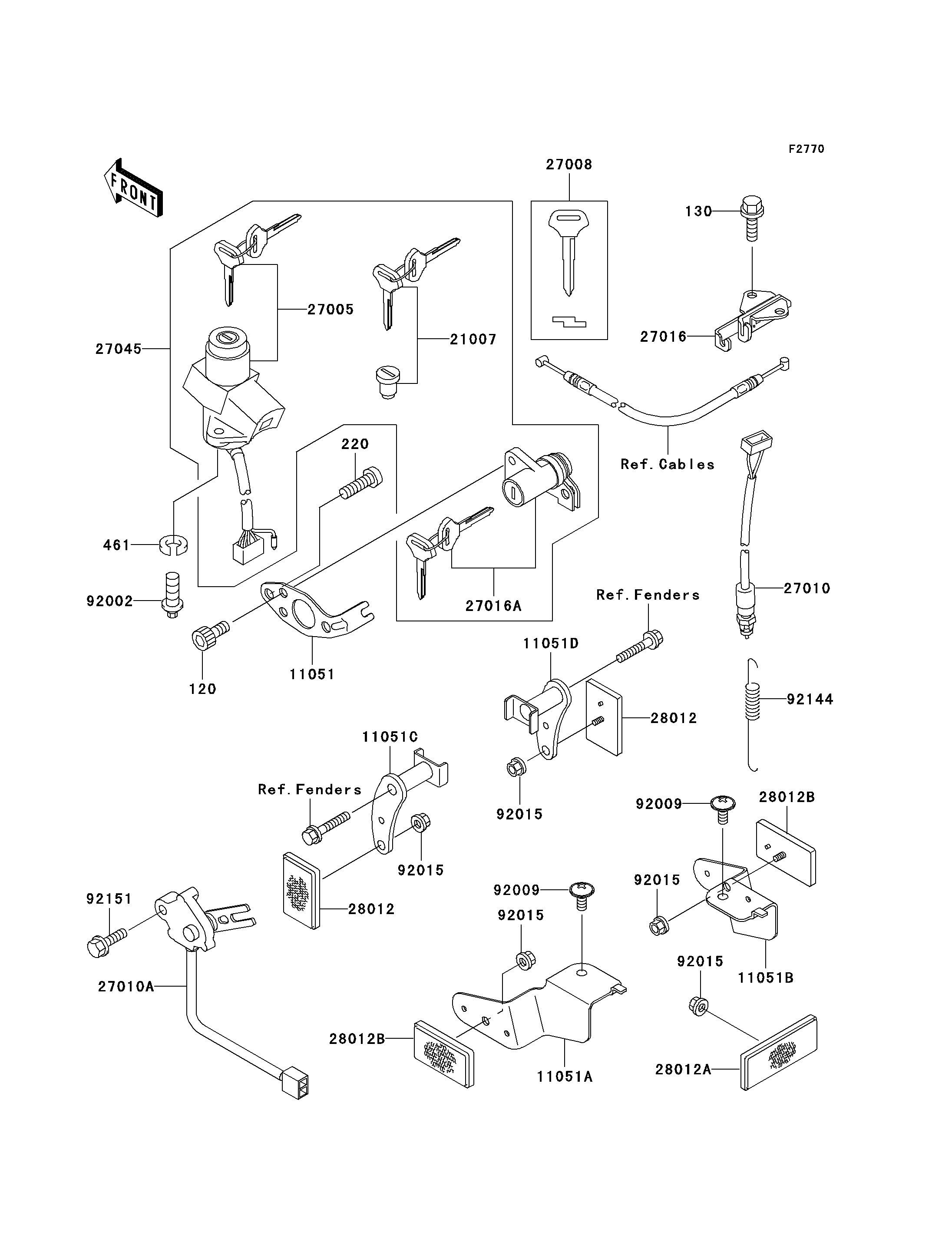

2000 Ninja® ZX™-12R - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
130
220
461
11051
11051A
11051B
11051C
11051D
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012
28012A
28012B
28012B
92002
92009
92009
92015
92015
92015
92015
92015
92144
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0512 2
BOLT-FLANGED 130 130J0612 2
SCREW-PAN-CROS,6X12 220 220C0612 2
WASHER-SPRING 461 461L0600 2
BRACKET,SEAT LOCK 11051 11051-1370 1
BRACKET,REFLECTOR,RR,LH 11051A 11051-1481 1
BRACKET,REFLECTOR,RR,RH 11051B 11051-1482 1
BRACKET,REFLECTOR,FR,LH 11051C 11051-1662 1
BRACKET,REFLECTOR,FR,RH 11051D 11051-1663 1
ROTOR,LOCK,TANK CAP 21007 21007-5042 1
SWITCH-ASSY-IGNITION 27005 27005-5112 1
KEY-LOCK,BLANK 27008 27008-1189 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-1152 1
SWITCH,SIDE STAND 27010A 27010-1407 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5261 1
SWITCH-ASSY 27045 27045-5105 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
BOLT,TORX,6X16 92002 92002-1333 2
SCREW,6X14 92009 92009-1662 2
NUT,FLANGED,5MM 92015 92015-1259 5
SPRING,REAR BRAKE SWITCH 92144 92144-1753 1
BOLT,FLANGED,6X30 92151 92151-1216 1
