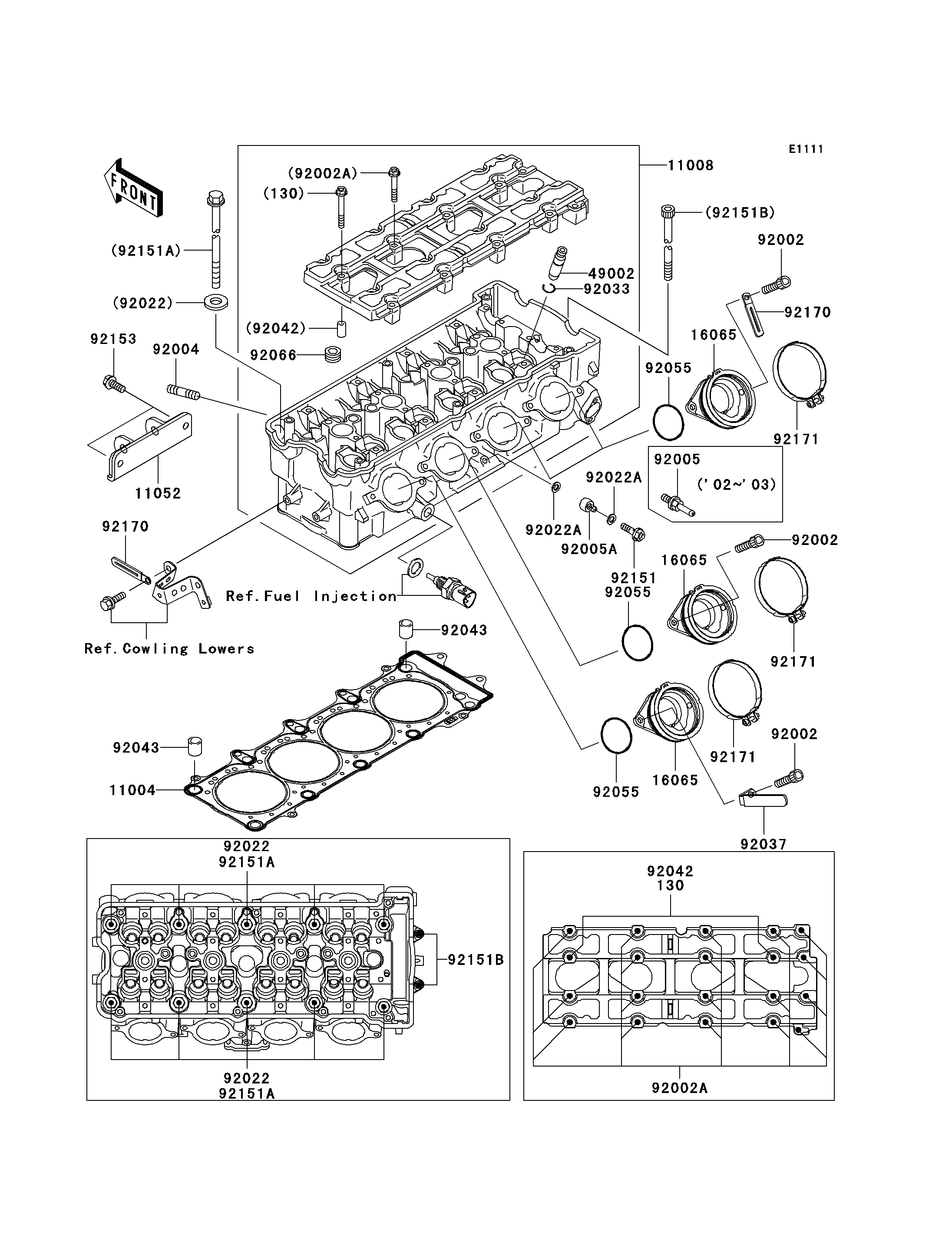

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130Z0650 | 2 | ||
GASKET-HEAD | 11004 | 11004-1369 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-0036 | 1 | ||
BRACKET,CYLINDER HEAD | 11052 | 11052-1542 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1377 | 4 | ||
GUIDE-VALVE | 49002 | 49002-1140 | AR | ||
BOLT,6X16 | 92002 | 92002-1143 | 8 | ||
BOLT,6X40 | 92002A | 92002-1756 | 18 | ||
STUD,8X22 | 92004 | 92004-1249 | 8 | ||
FITTING | 92005A | 92005-1346 | 1 | ||
WASHER,11.5X20.5X1.6 | 92022 | 92022-1720 | 10 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 2 | ||
RING-SNAP | 92033 | 92033-1247 | 16 | ||
CLAMP | 92037 | 92037-1679 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 2 | ||
PIN,14X14 | 92043 | 92043-1593 | 2 | ||
RING-O,47X1.9 | 92055 | 92055-1600 | 4 | ||
PLUG,PT1/2X12.5 | 92066 | 92066-0002 | 5 | ||
BOLT,BANJO,6X20 | 92151 | 92151-1329 | 1 | ||
BOLT,11X168 | 92151A | 92151-1513 | 10 | ||
BOLT,SOCKET,7X120 | 92151B | 92151-1804 | 2 | ||
BOLT,8X20 | 92153 | 92153-0892 | 2 | ||
CLAMP | 92170 | 92170-1514 | 3 | ||
CLAMP | 92171 | 92171-1089 | 4 |
