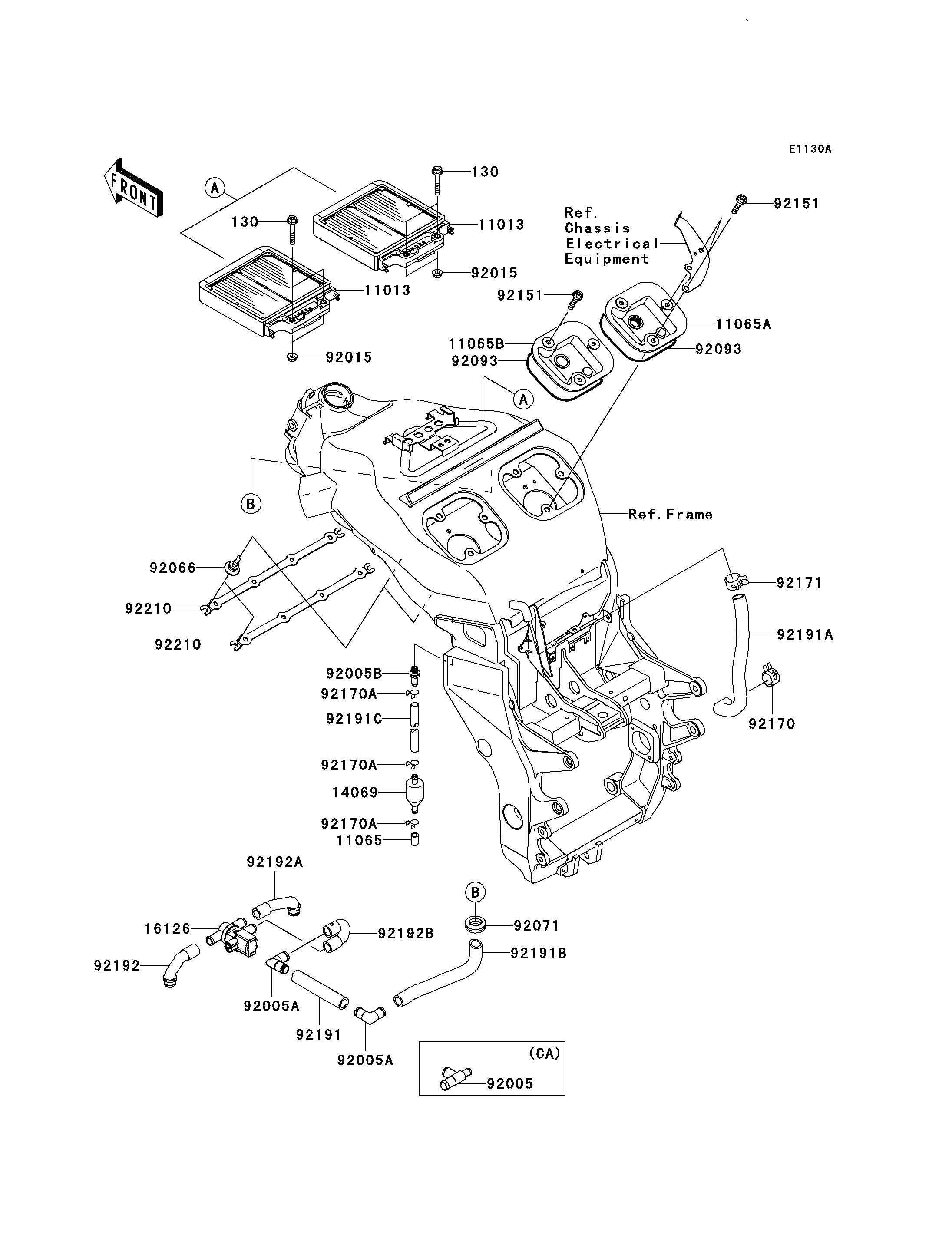

2004 Ninja® ZX™-12R - Air Cleaner(B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
130
130
11013
11013
11065
11065A
11065B
14069
16126
92005B
92015
92015
92066
92071
92093
92093
92151
92151
92170
92170A
92170A
92170A
92171
92191
92191A
92191B
92191C
92192
92192A
92192B
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0635 4
ELEMENT-AIR FILTER 11013 11013-0005 2
CAP,BREATHER 11065 11065-1088 1
CAP,FRAME,RH 11065A 11065-1129 1
CAP,FRAME,LH 11065B 11065-1130 1
BREATHER 14069 14069-1051 1
VALVE,AIR CUT 16126 16126-1437 1
FITTING 92005B 92005-1365 1
NUT,6MM 92015 92015-1365 4
PLUG 92066 92066-1576 4
GROMMET,AIR FILTER 92071 92071-1042 1
SEAL 92093 92093-1507 2
BOLT,6X22 92151 92151-1236 6
CLAMP 92170 92170-1060 1
CLAMP 92170A 92170-1529 3
CLAMP 92171 92171-1277 1
TUBE,14X20X111 92191 92191-1215 1
TUBE,ENGINE-CLEANER 92191A 92191-1352 1
TUBE,AIR SWITCH-CLEANER 92191B 92191-1353 1
TUBE,7X12X460 92191C 92191-1517 1
TUBE,VALVE-ASWV LH 92192 92192-0090 1
TUBE,VALVE-ASWV RH 92192A 92192-0091 1
TUBE,ASWV-FITTING 92192B 92192-0092 1
NUT 92210 92210-1183 2
FITTING,T-TYPE 92005 92005-1252 1 CA
FITTING 92005A 92005-1309 1 CA
FITTING 92005A 92005-1309 2 CNUS
