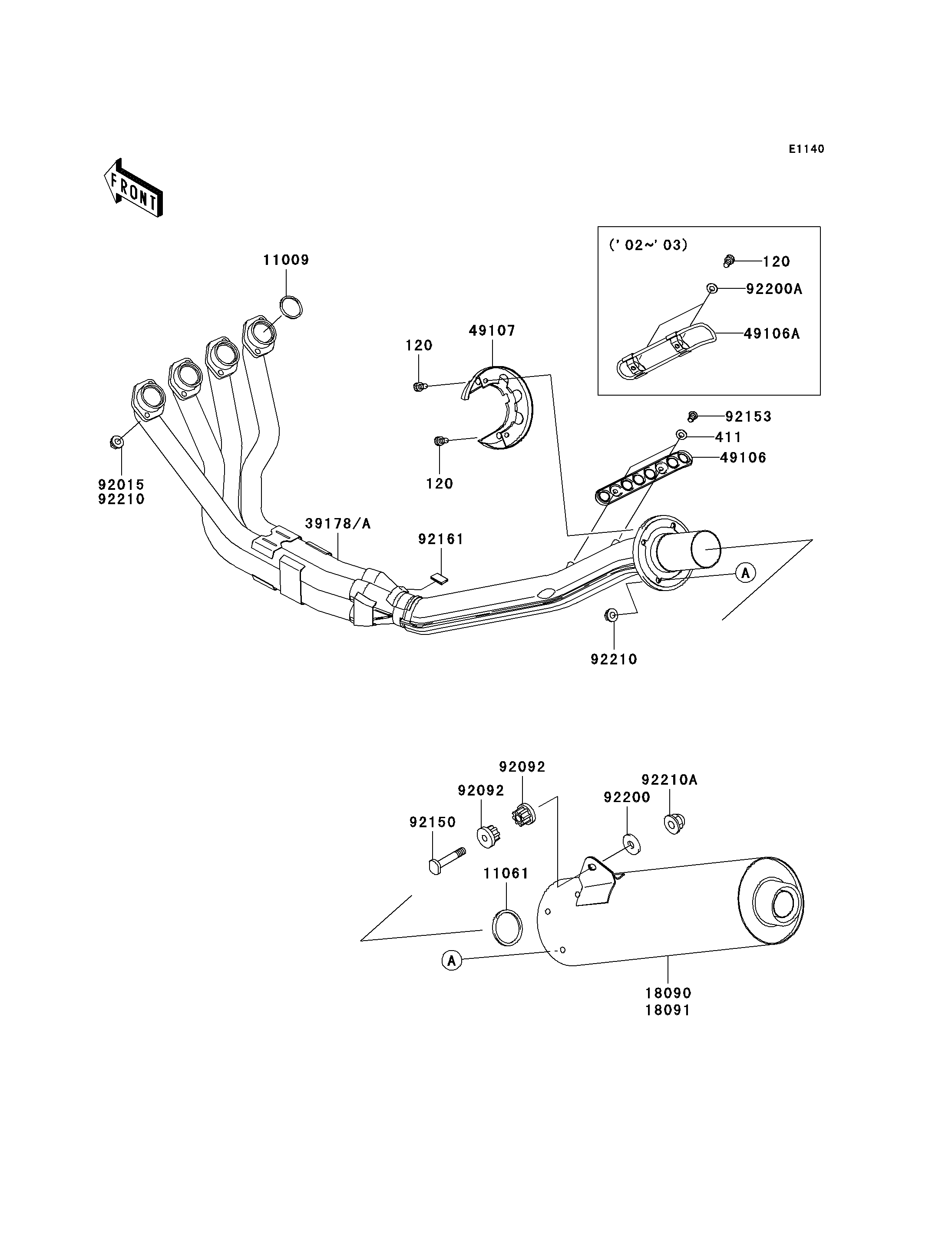

Parts Diagrams |
120
120
120
411
11009
11061
18090
39178
49106
49107
92092
92092
92150
92153
92161
92200
92210
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120R0610 | 2 | ||
WASHER-PLAIN,6MM | 411 | 411S0600 | 2 | ||
GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1840 | 4 | ||
GASKET,MUFFLER CONNECT | 11061 | 11061-1095 | 1 | ||
BODY-COMP-MUFFLER | 18090 | 18090-1996 | 1 | ||
MANIFOLD-COMP-EXHAUST | 39178 | 39178-0015 | 1 | ||
COVER-MUFFLER | 49106 | 49106-0009 | 1 | ||
COVER-EXHAUST PIPE,END | 49107 | 49107-1185 | 1 | ||
BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 2 | ||
BOLT,10X55 | 92150 | 92150-1792 | 1 | ||
BOLT,6X12 | 92153 | 92153-0554 | 2 | ||
DAMPER | 92161 | 92161-1228 | 1 | ||
WASHER,10.5X25X2.0 | 92200 | 92200-1377 | 1 | ||
NUT,8MM | 92210 | 92210-1114 | 12 | ||
NUT,CAP,10MM | 92210A | 92210-1121 | 1 |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE HOLDER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,MUFFLER CONNECT | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER | |
REF # | 18090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MANIFOLD-COMP-EXHAUST | |
REF # | 39178 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-MUFFLER | |
REF # | 49106 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-EXHAUST PIPE,END | |
REF # | 49107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER,MUFFLER | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,10X55 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.5X25X2.0 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
NUT,CAP,10MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
