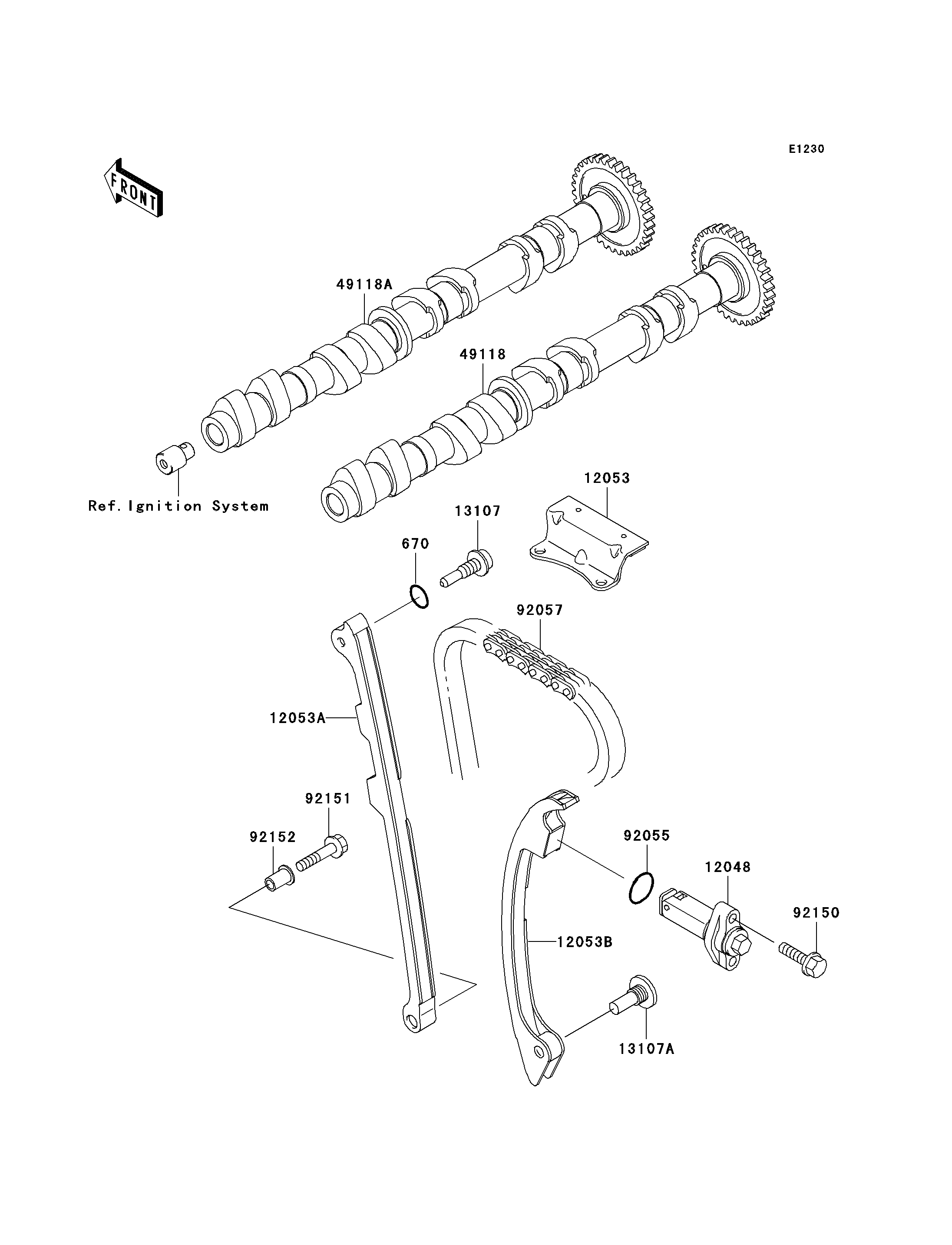

2005 Ninja® ZX-12R - Camshaft(s)/Tensioner

670
12048
12053
12053A
12053B
13107
13107A
49118
49118A
92055
92057
92150
92151
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,9MM 670 670D1509 1
TENSIONER-ASSY 12048 12048-1189 1
GUIDE-CHAIN,UPP 12053 12053-1432 1
GUIDE-CHAIN,FR 12053A 12053-1433 1
GUIDE-CHAIN,RR 12053B 12053-1450 1
SHAFT,CHAIN GUIDE,FR 13107 13107-1416 1
SHAFT,CHAIN GUIDE,RR 13107A 13107-1417 1
CAMSHAFT-COMP,INTAKE 49118 49118-1204 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-1205 1
RING-O 92055 92055-086 1
CHAIN,CAM 92057 92057-1475 1
BOLT,6X25 92150 92150-1779 2
BOLT,6X30 92151 92151-1134 1
COLLAR 92152 92152-1167 1
