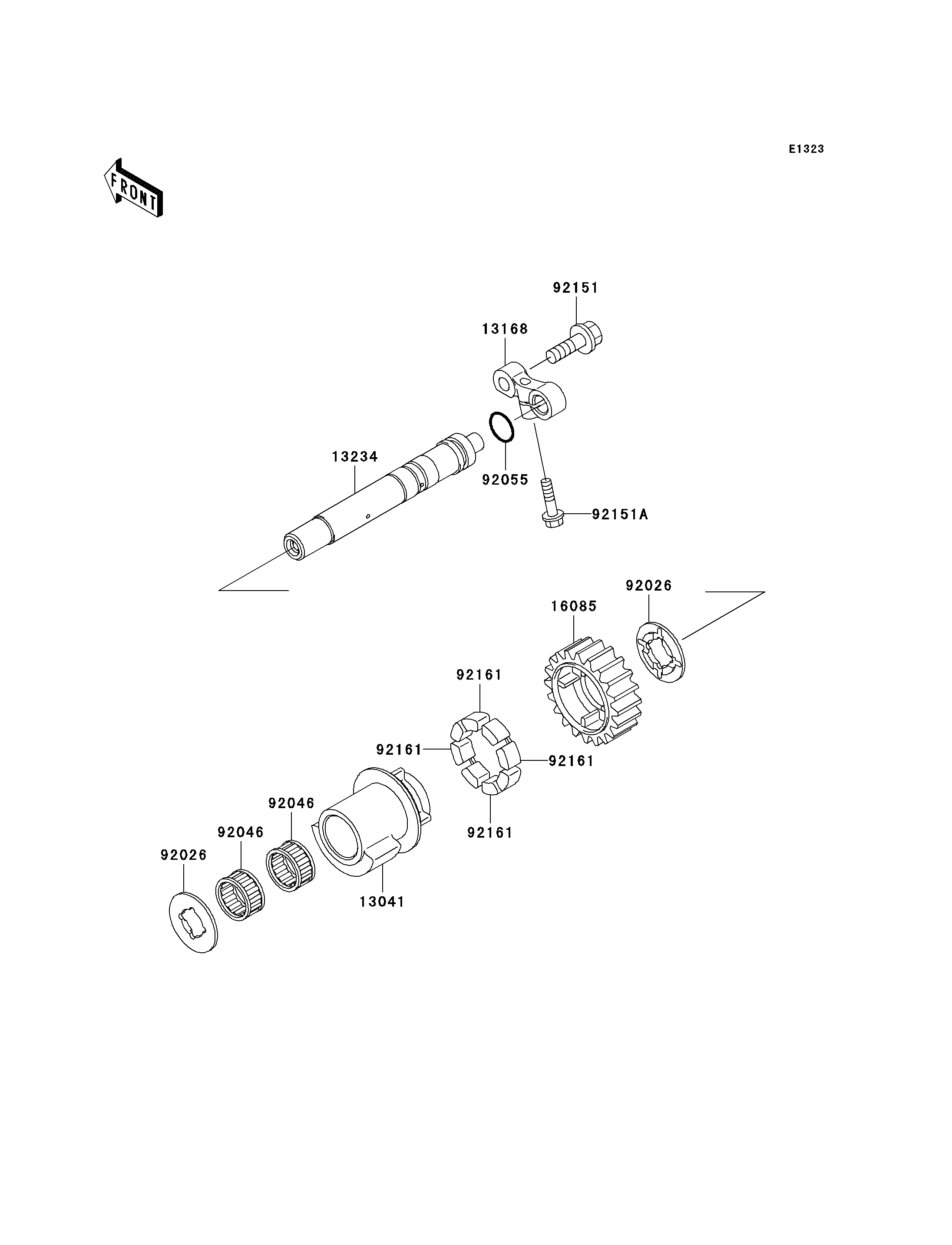

13041
13168
13234
16085
92026
92026
92046
92046
92055
92151
92151A
92161
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALANCER 13041 13041-1125 1
LEVER 13168 13168-1671 1
SHAFT-COMP 13234 13234-1116 1
GEAR 16085 16085-1324 1
SPACER 92026 92026-1540 2
BEARING-NEEDLE 92046 92046-1266 2
RING-O,16.8X2.4 92055 92055-1258 1
BOLT,8X25 92151 92151-1527 1
BOLT,6X25 92151A 92151-1930 1
DAMPER 92161 92161-1055 4
