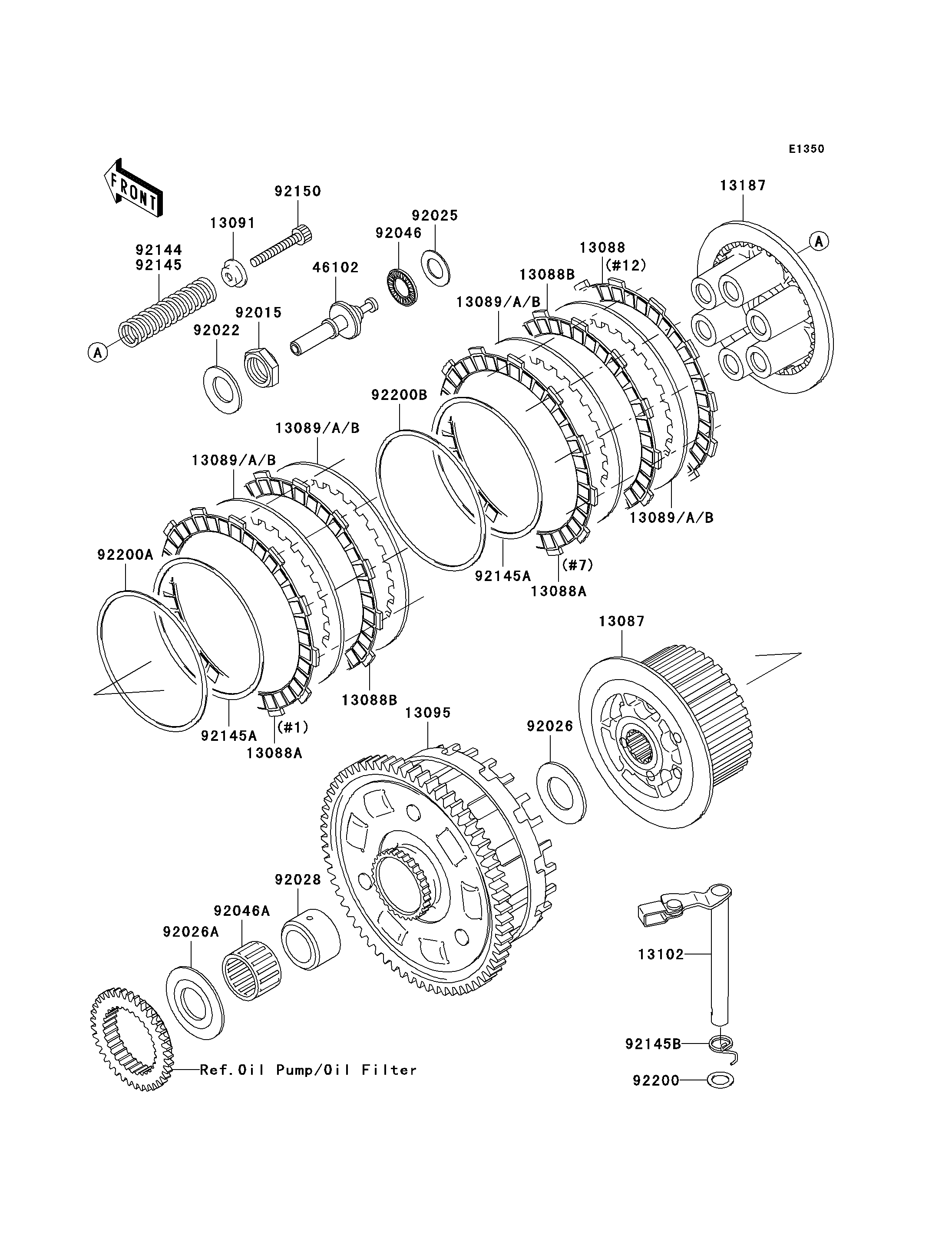

2004 Ninja® ZX™-12R - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088A
13088A
13088B
13088B
13089
13089
13089
13089
13089A
13089A
13089A
13089A
13089B
13089B
13089B
13089B
13091
13095
13102
13187
46102
92015
92022
92025
92026
92026A
92028
92046
92046A
92144
92145
92145A
92145A
92145B
92150
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-1183 1
PLATE-FRICTION 13088 13088-1131 1
PLATE-FRICTION 13088A 13088-1140 2
PLATE-FRICTION 13088B 13088-1143 9
PLATE-CLUTCH,T=1.6 13089 13089-1123 11
PLATE-CLUTCH,T=2.0 13089A 13089-1124 AR
PLATE-CLUTCH,T=1.4 13089B 13089-1125 AR
HOLDER,CLUTCH SPRING 13091 13091-1041 6
HOUSING-COMP-CLUTCH 13095 13095-1404 1
RELEASE-COMP-CLUTCH 13102 13102-1158 1
PLATE-CLUTCH OPERATING 13187 13187-1084 1
ROD,CLUTCH RELEASE 46102 46102-1429 1
NUT,20MM 92015 92015-1555 1
WASHER 92022 92022-1868 1
SHIM,15.3X27.5X1.20 92025 92025-1137 1
SPACER,25.5X47X2.5 92026 92026-022 1
SPACER 92026A 92026-1497 1
BUSHING 92028 92028-1934 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
BEARING-NEEDLE 92046A 92046-1267 1
SPRING,CLUTCH OPERATING 92144 92144-1881 6 (OPTION)
SPRING,CLUTCH 92145 92145-1087 6
SPRING 92145A 92145-1250 2
SPRING,CLUTCH RELEASE 92145B 92145-1435 1
BOLT,CLUTCH OPERATING 92150 92150-1855 6
WASHER,12X18.5X0.5 92200 92200-1487 1
WASHER,T=1.0 92200A 92200-1579 1
WASHER,T=1.2 92200B 92200-1580 1
