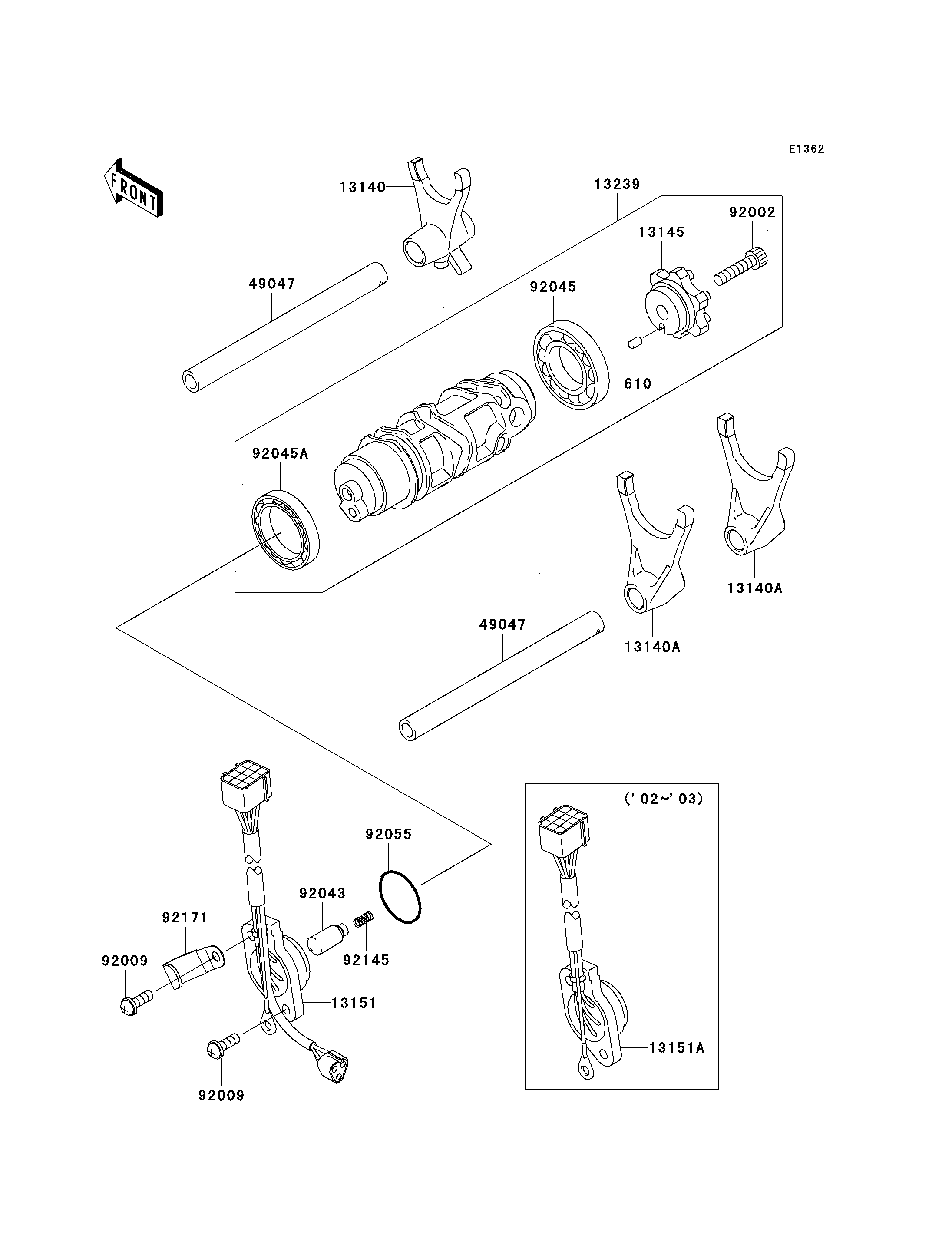

2004 Ninja® ZX™-12R - Gear Change Drum/Shift Fork(s)
610
13140
13140A
13140A
13145
13151
13239
49047
49047
92002
92009
92009
92043
92045
92045A
92055
92145
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROLLER,4X6 | 610 | 610A0406 | 1 | ||
| FORK-SHIFT,INPUT | 13140 | 13140-1290 | 1 | ||
| FORK-SHIFT,OUTPUT | 13140A | 13140-1291 | 2 | ||
| CAM-CHANGE DRUM | 13145 | 13145-1090 | 1 | ||
| SWITCH-COMP,NEUTRAL | 13151 | 13151-0014 | 1 | ||
| DRUM-ASSY-CHANGE | 13239 | 13239-1208 | 1 | ||
| ROD-SHIFT | 49047 | 49047-1103 | 2 | ||
| BOLT,SOCKET,6X25 | 92002 | 92002-1696 | 1 | ||
| SCREW | 92009 | 92009-1895 | 2 | ||
| PIN | 92043 | 92043-1654 | 1 | ||
| BEARING-BALL,16005(NTN) | 92045 | 92045-1045 | 1 | ||
| BEARING-BALL,6806 | 92045A | 92045-1152 | 1 | ||
| RING-O | 92055 | 92055-091 | 1 | ||
| SPRING | 92145 | 92145-1414 | 1 | ||
| CLAMP | 92171 | 92171-1126 | 1 |
