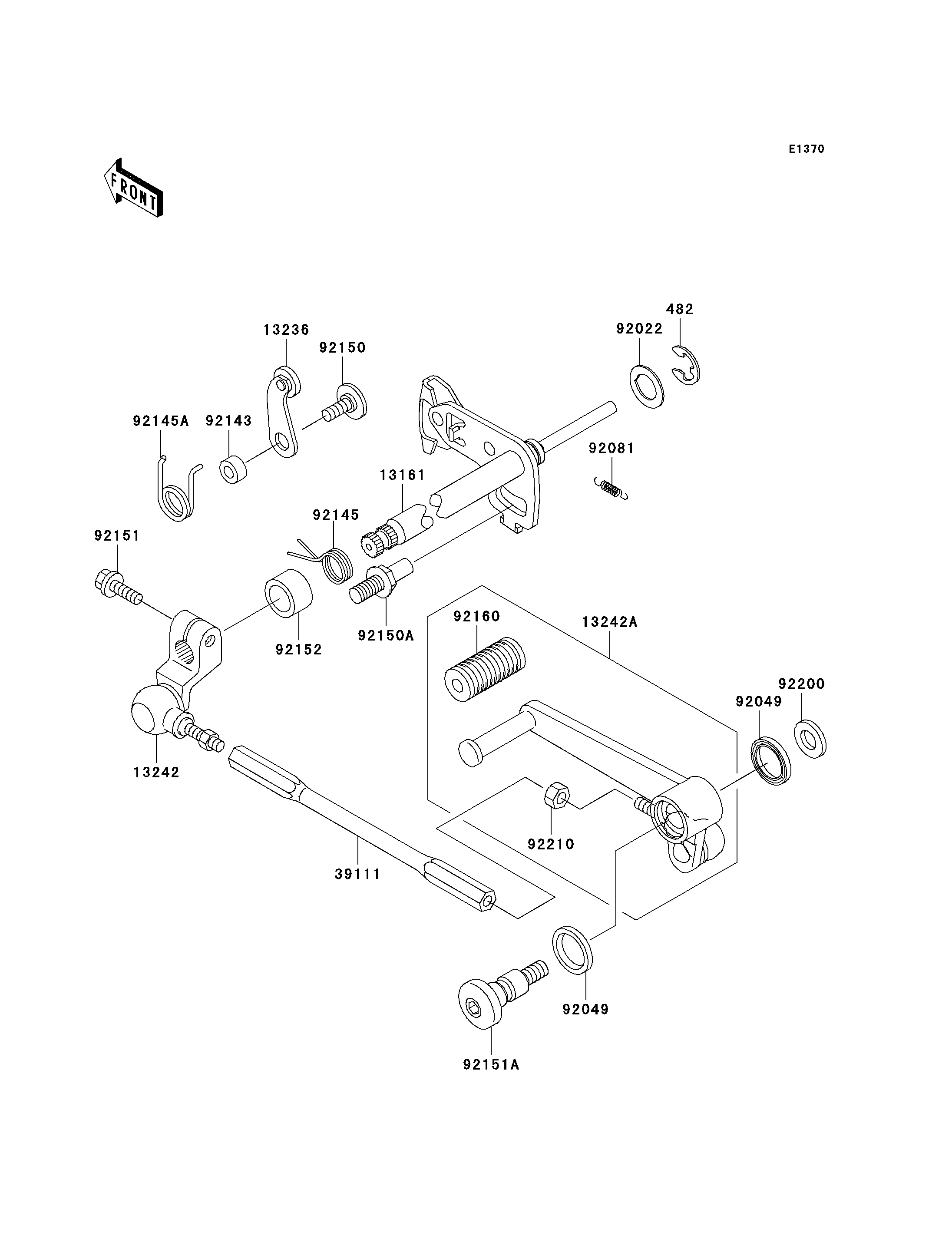

2004 Ninja® ZX™-12R - Gear Change Mechanism
482
13161
13236
13242
13242A
39111
92022
92049
92049
92081
92143
92145
92145A
92150
92150A
92151
92151A
92152
92160
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-E,12MM | 482 | 482J0200 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1283 | 1 | ||
LEVER-COMP,POSITION | 13236 | 13236-1307 | 1 | ||
LEVER-ASSY-CHANGE,BOSS | 13242 | 13242-1348 | 1 | ||
LEVER-ASSY-CHANGE,PEDAL | 13242A | 13242-1363 | 1 | ||
ROD-TIE | 39111 | 39111-1166 | 1 | ||
WASHER,CHANGE SHAFT | 92022 | 92022-1628 | 1 | ||
SEAL-OIL,VB13193 | 92049 | 92049-1398 | 2 | ||
SPRING,PAWL RETURN | 92081 | 92081-1708 | 1 | ||
COLLAR | 92143 | 92143-1595 | 1 | ||
SPRING | 92145 | 92145-1122 | 1 | ||
SPRING | 92145A | 92145-1257 | 1 | ||
BOLT,SOCKET,6X16 | 92150 | 92150-1737 | 1 | ||
BOLT,RETURN SPRING | 92150A | 92150-1869 | 1 | ||
BOLT,6X20 | 92151 | 92151-1226 | 1 | ||
BOLT,CHANGE PEDAL | 92151A | 92151-1481 | 1 | ||
COLLAR | 92152 | 92152-1383 | 1 | ||
DAMPER,CHANGE PEDAL | 92160 | 92160-1036 | 1 | ||
WASHER,8.5X25X1.5 | 92200 | 92200-3717 | 1 | ||
NUT,6MM | 92210 | 92210-1100 | 1 |
CIRCLIP-TYPE-E,12MM | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,POSITION | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,BOSS | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,PEDAL | |
REF # | 13242A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE | |
REF # | 39111 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,CHANGE SHAFT | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,VB13193 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,PAWL RETURN | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X16 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CHANGE PEDAL | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,CHANGE PEDAL | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,8.5X25X1.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
