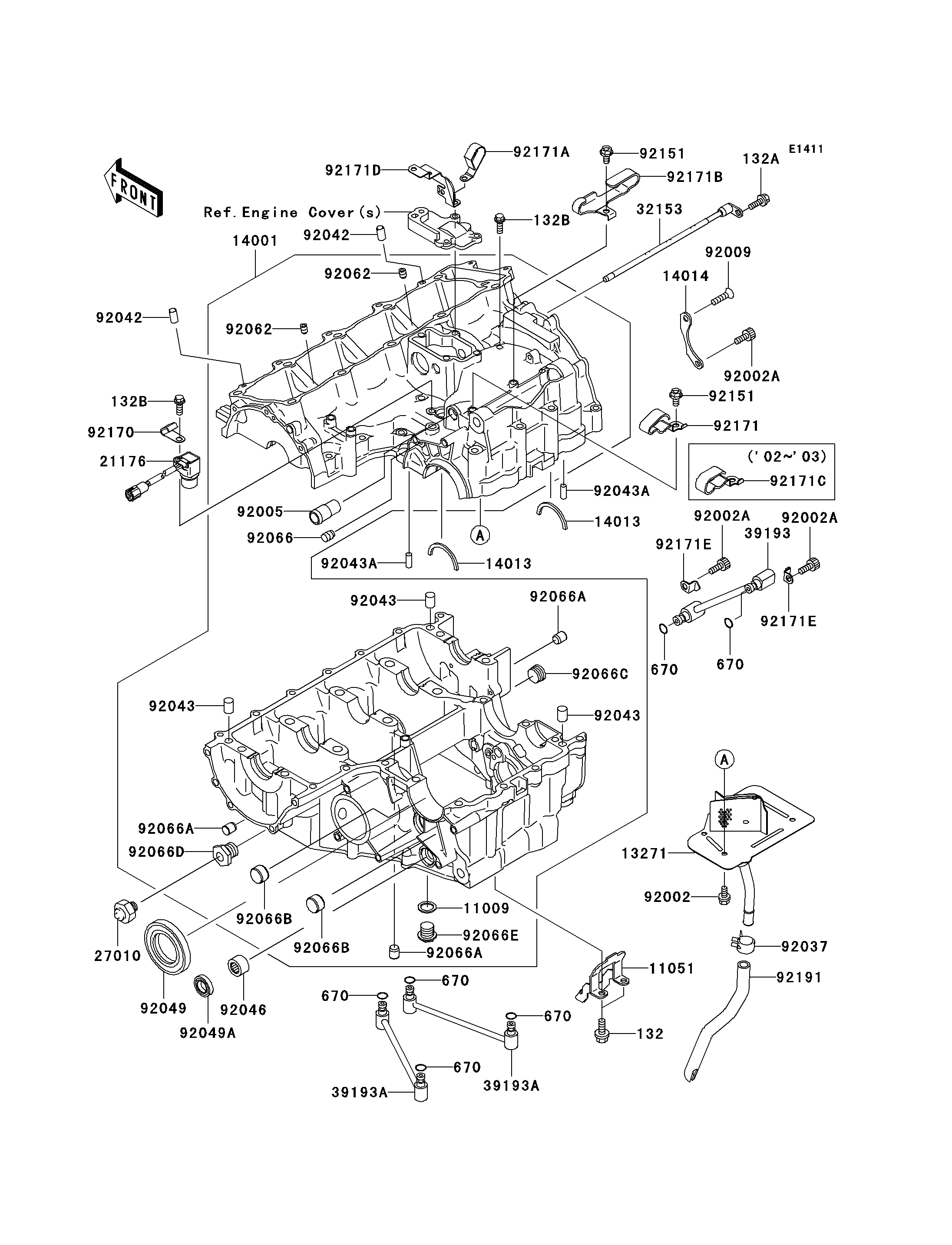

2004 Ninja® ZX™-12R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
11009
11009
11051
11051
13271
13271
14001
14001
14013
14013
14013
14013
14014
14014
21176
21176
27010
27010
32153
32153
39193
39193
39193A
39193A
39193A
39193A
92002
92002
92002A
92002A
92002A
92002A
92002A
92002A
92005
92005
92009
92009
92037
92037
92042
92042
92042
92042
92043
92043
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92046
92046
92049
92049
92049A
92049A
92062
92062
92062
92062
92066
92066
92066A
92066A
92066A
92066A
92066A
92066A
92066B
92066B
92066B
92066B
92066C
92066C
92066D
92066D
92066E
92066E
92151
92151
92151
92151
92170
92170
92171
92171
92171A
92171A
92171B
92171B
92171D
92171D
92171E
92171E
92171E
92171E
92191
92191
132B
132B
132B
132B
670
670
670
670
670
670
670
670
670
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132H0612 2
BOLT-FLANGED-SMALL 132A 132Y0614 1
GASKET,14X19.5X1.4 11009 11009-1461 1
BRACKET,TUBE 11051 11051-1334 1
PLATE,BREATHER 13271 13271-1228 1
SET-CRANKCASE 14001 14001-1295 1
RING-POSITION,T=1.98 14013 14013-1004 2
PLATE-POSITION 14014 14014-1140 1
SENSOR,SPEEDOMETER 21176 21176-1106 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL 32153 32153-1139 1
PIPE-OIL,RH 39193 39193-1063 1
PIPE-OIL,OIL PAN 39193A 39193-1064 2
BOLT,6X10 92002 92002-1449 5
BOLT,SOCKET,6X16 92002A 92002-1778 3
FITTING,BREATHER 92005 92005-1238 1
SCREW,6X16 92009 92009-1360 1
CLAMP 92037 92037-1678 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN 92043 92043-1506 3
PIN,6X16 92043A 92043-1690 2
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
SEAL-OIL,SD40X62X8 92049 92049-1510 1
SEAL-OIL,TC14245 92049A 92049-1520 1
NOZZLE,5X6,SILVER 92062 92062-1086 2
PLUG 92066 92066-042 1
PLUG,OIL LINE,7.2X8 92066A 92066-1012 3
PLUG 92066B 92066-1110 2
PLUG,PT3/8X12 92066C 92066-1252 1
PLUG,PT3/8X3 92066D 92066-1513 1
PLUG,DRAIN 92066E 92066-2196 1
BOLT,6X12 92151 92151-1239 2
CLAMP,HARNESS 92170 92170-1900 1
CLAMP 92171 92171-0190 1
CLAMP 92171A 92171-1099 1
CLAMP 92171B 92171-1133 1
CLAMP 92171D 92171-1217 1
CLAMP,OIL PIPE,RH 92171E 92171-1439 2
TUBE,BREATHER 92191 92191-1602 1
BOLT-FLANGED-SMALL 132B 132Y0616 2
O RING,7MM 670 670D1507 6
