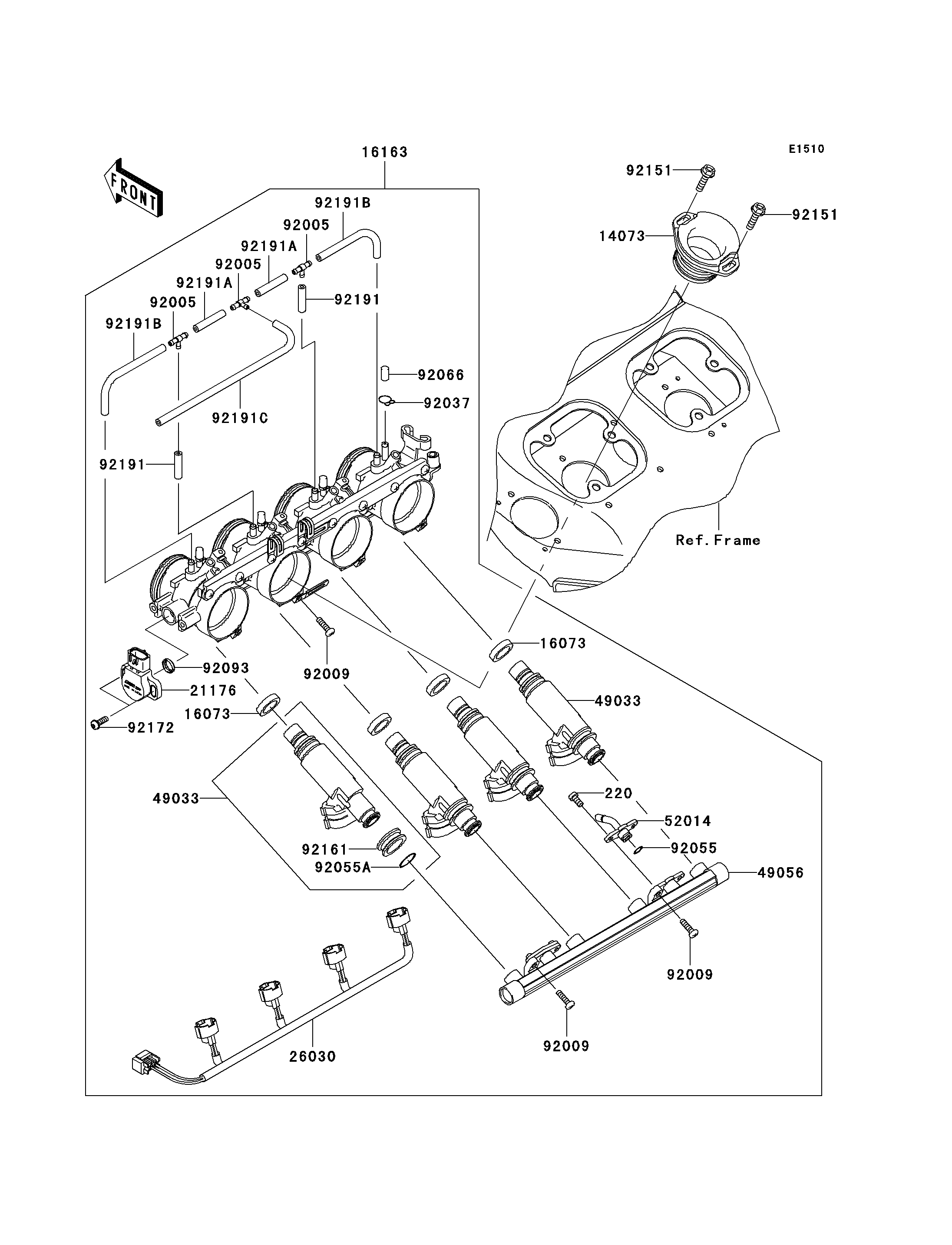

Parts Diagrams |
220
14073
16073
16073
16163
21176
26030
49033
49033
49056
52014
92005
92005
92005
92009
92009
92009
92037
92055
92055A
92066
92093
92151
92151
92161
92172
92191
92191
92191A
92191A
92191B
92191B
92191C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS | 220 | 220D0510 | 2 | ||
DUCT,FUNNEL | 14073 | 14073-1746 | 4 | ||
INSULATOR,INJECTER | 16073 | 16073-1123 | 4 | ||
THROTTLE-ASSY | 16163 | 16163-1118 | 1 | ||
SENSOR | 21176 | 21176-1083 | 1 | ||
HARNESS | 26030 | 26030-1672 | 1 | ||
NOZZLE-INJECTION | 49033 | 49033-1056 | 4 | ||
PIPE-INJECTION | 49056 | 49056-1056 | 1 | ||
ELBOW,NIPPLE | 52014 | 52014-1101 | 1 | ||
FITTING | 92005 | 92005-1380 | 3 | ||
SCREW,6X18 | 92009 | 92009-1951 | 3 | ||
CLAMP | 92037 | 92037-1610 | 4 | ||
RING-O,ELBOW | 92055 | 92055-1647 | 1 | ||
RING-O,INJECTION | 92055A | 92055-1648 | 4 | ||
PLUG,FITTING | 92066 | 92066-1549 | 4 | ||
SEAL | 92093 | 92093-0064 | 1 | ||
BOLT,6X22 | 92151 | 92151-1236 | 8 | ||
DAMPER,INJECTION | 92161 | 92161-1180 | 4 | ||
SCREW | 92172 | 92172-0255 | 2 | ||
TUBE,3.2X7.4X30 | 92191 | 92191-1550 | 2 | ||
TUBE,3.2X7.4X40 | 92191A | 92191-1551 | 2 | ||
TUBE,3.2X7.4X105 | 92191B | 92191-1553 | 2 | ||
TUBE,3.2X7.4X250 | 92191C | 92191-1763 | 1 |
