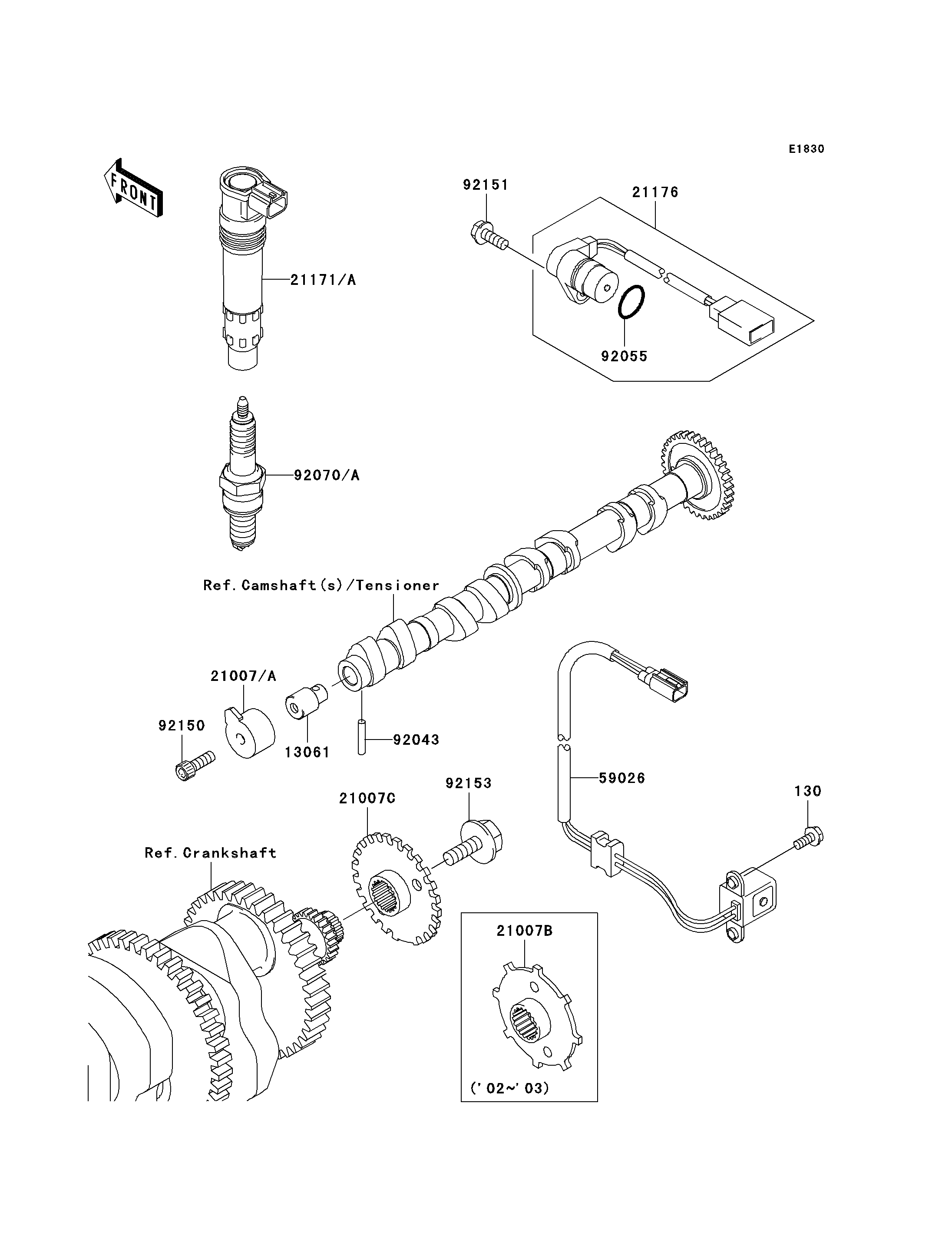

130
13061
21007
21007C
21171A
21176
59026
92043
92055
92070
92070A
92150
92151
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
BOSS,CAM SENSOR 13061 13061-1687 1
ROTOR 21007 21007-0018 1
ROTOR 21007C 21007-1419 1
COIL-ASSY-IGNITION 21171A 21171-1286 4
SENSOR 21176 21176-1077 1
COIL-PULSING 59026 59026-1150 1
PIN 92043 92043-1575 1
RING-O 92055 92055-1639 1
PLUG-SPARK,CR9EKPA 92070 92070-1254 4
PLUG-SPARK,CR8EKPA 92070A 92070-1255 4 (OPTION)
BOLT,6X18 92150 92150-1645 1
BOLT,6X16 92151 92151-1774 1
BOLT,8X23 92153 92153-0549 1
