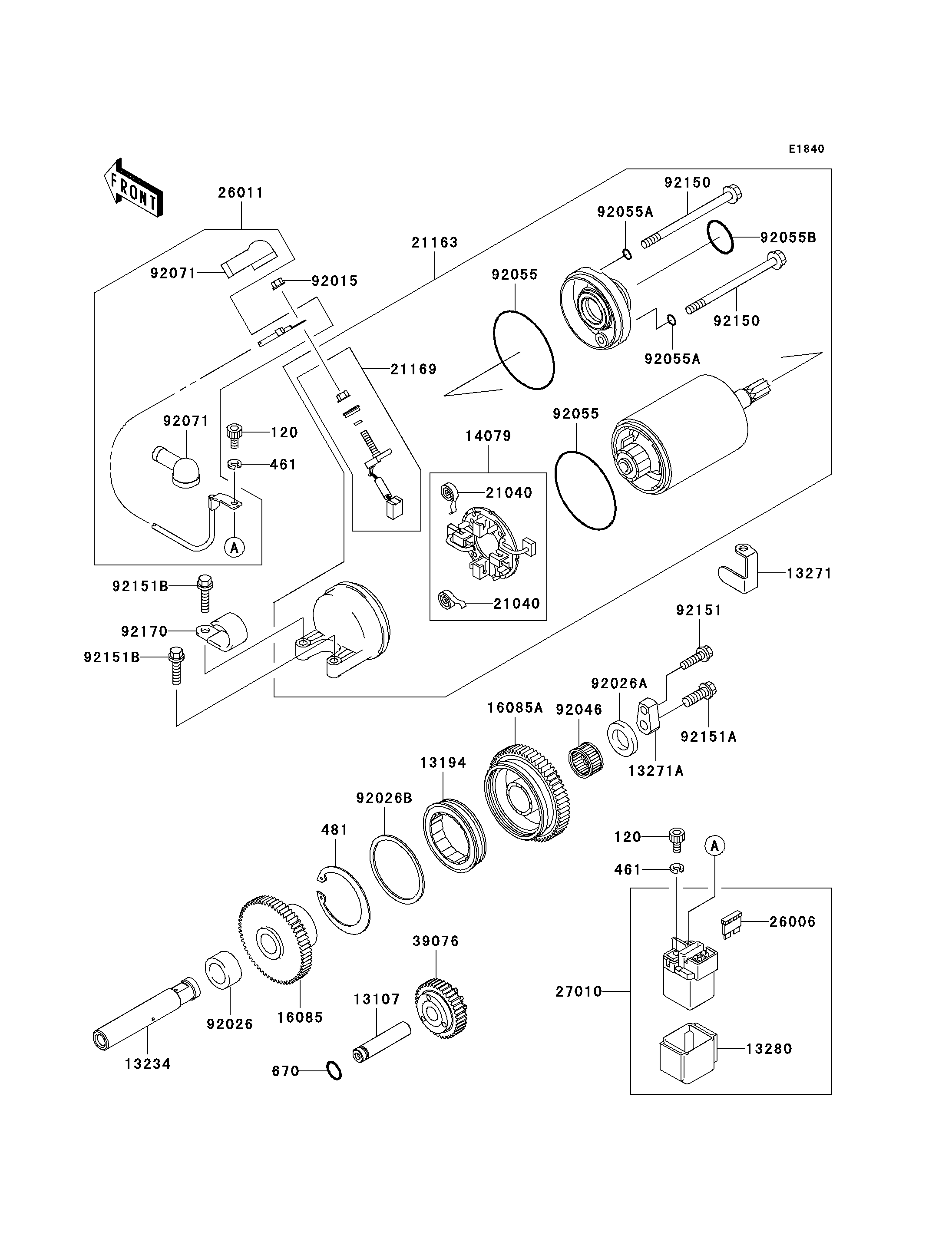

2004 Ninja® ZX™-12R - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
120
461
461
481
670
13107
13194
13234
13271
13271A
13280
14079
16085
16085A
21040
21040
21163
21169
26006
26011
27010
39076
92015
92026
92026A
92026B
92046
92055
92055
92055A
92055A
92055B
92071
92071
92150
92150
92151
92151A
92151B
92151B
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0510 2
WASHER-SPRING,5MM,BLACK 461 461K0500 2
CIRCLIP 481 481J6200 1
O RING,9MM 670 670D1509 1
SHAFT 13107 13107-1422 1
CLUTCH-ONEWAY 13194 13194-1111 1
SHAFT-COMP 13234 13234-1114 1
PLATE 13271 13271-1231 1
PLATE 13271A 13271-1639 1
HOLDER 13280 13280-1263 1
HOLDER-ASSY,STARTER 14079 14079-0009 1
GEAR 16085 16085-1328 1
GEAR 16085A 16085-1343 1
SPRING-BRUSH 21040 21040-1051 2
STARTER-ELECTRIC 21163 21163-1302 1
TERMINAL,STARTER 21169 21169-1058 1
FUSE,30A-G 26006 26006-1006 1
WIRE-LEAD 26011 26011-1749 1
SWITCH,MAGNETIC 27010 27010-1446 1
LIMITER 39076 39076-1074 1
NUT 92015 92015-1623 1
SPACER,LH 92026 92026-1541 1
SPACER,RH 92026A 92026-1542 1
SPACER,ONEWAY CLUTCH 92026B 92026-1550 1
BEARING-NEEDLE 92046 92046-1288 1
RING-O,62MM 92055 92055-1260 2
RING-O,4.5MM 92055A 92055-1261 2
RING-O,24.4MM 92055B 92055-1262 1
GROMMET,STARTER TERMINAL 92071 92071-1120 2
BOLT 92150 92150-1237 2
BOLT,6X22 92151 92151-1411 1
BOLT,8X22 92151A 92151-1543 1
BOLT,6X25 92151B 92151-1930 2
CLAMP,HARNESS 92170 92170-1900 1
