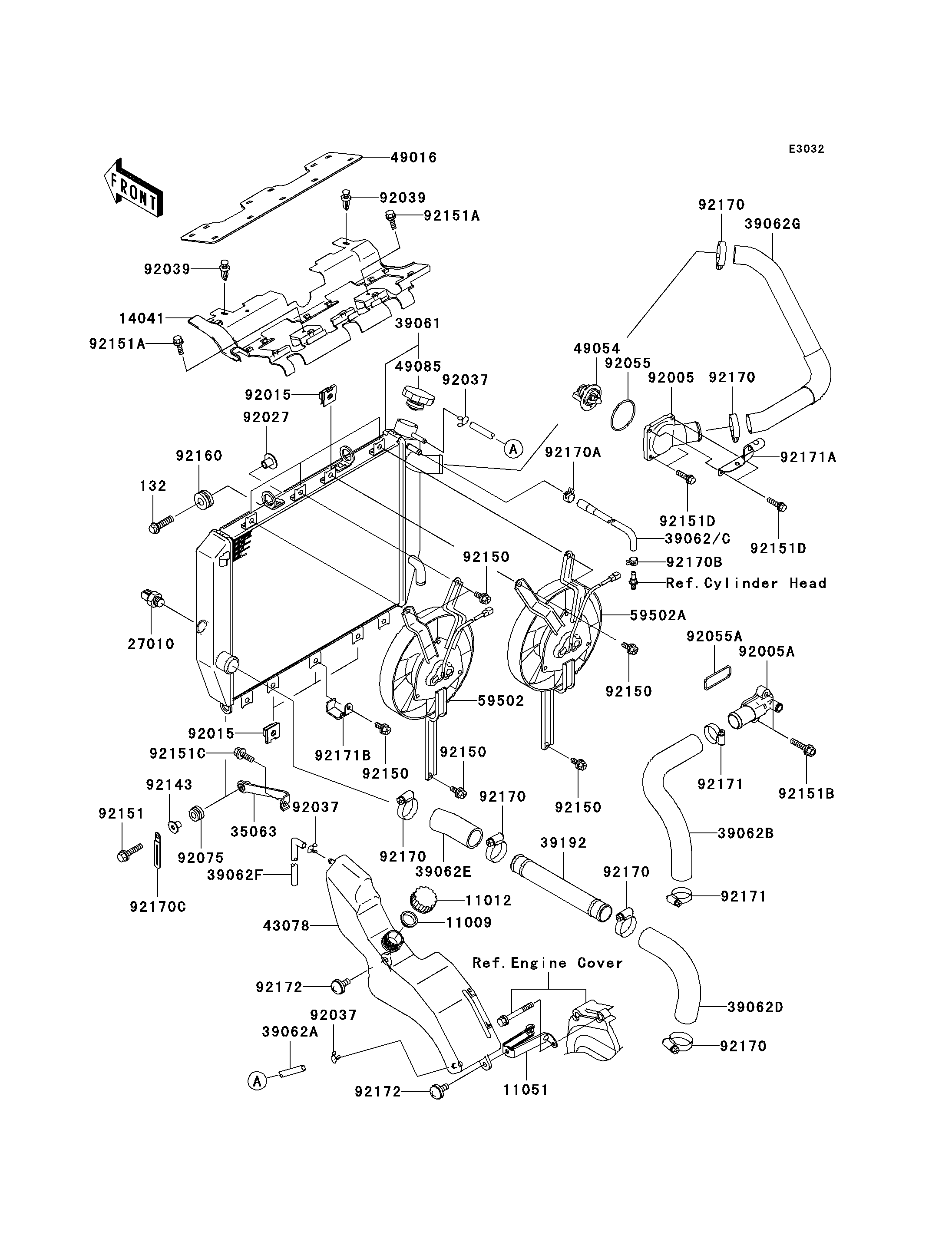

2004 Ninja® ZX™-12R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
11051
11051
14041
14041
27010
27010
35063
35063
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39192
39192
43078
43078
49016
49016
49054
49054
49085
49085
59502
59502
59502A
59502A
92005
92005
92005A
92005A
92015
92015
92015
92015
92027
92027
92037
92037
92037
92037
92037
92037
92039
92039
92039
92039
92055
92055
92055A
92055A
92075
92075
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92151
92151
92151A
92151A
92151A
92151A
92151B
92151B
92151C
92151C
92151D
92151D
92151D
92151D
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
132
132
92170A
92170A
92170B
92170B
92170C
92170C
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET 11051 11051-1435 1
COVER-COMP 14041 14041-1170 1
SWITCH 27010 27010-1443 1
STAY 35063 35063-1058 1
RADIATOR-ASSY 39061 39061-1304 1
HOSE-COOLING,RADIATOR 39062 39062-0063 1
HOSE-COOLING,RADIATOR-RESERVE 39062A 39062-1719 1
HOSE-COOLING,PUMP-CYLINDER 39062B 39062-1792 1
HOSE-COOLING,PIPE-PUMP 39062D 39062-1795 1
HOSE-COOLING,RADIATOR-PIPE 39062E 39062-1807 1
HOSE-COOLING 39062F 39062-1862 1
HOSE-COOLING,HEAD-RADIATOR 39062G 39062-1863 1
PIPE-WATER 39192 39192-1129 1
RESERVOIR 43078 43078-0016 1
COVER-SEAL,COVER-COMP 49016 49016-1214 1
THERMOSTAT 49054 49054-1067 1
CAP-ASSY-PRESSURE 49085 49085-1067 1
FAN-ASSY,LH 59502 59502-1143 1
FAN-ASSY,RH 59502A 59502-1144 1
FITTING 92005 92005-1362 1
FITTING 92005A 92005-1364 1
NUT 92015 92015-1487 7
COLLAR,L=14 92027 92027-1134 2
CLAMP,TUBE 92037 92037-147 3
RIVET 92039 92039-1227 2
RING-O,53.5X2.6 92055 92055-112 1
RING-O 92055A 92055-1402 1
DAMPER,RUBBER 92075 92075-1123 1
COLLAR 92143 92143-1353 1
BOLT,6X12 92150 92150-1186 7
BOLT,6X25 92151 92151-1225 1
BOLT,6X12 92151A 92151-1239 2
BOLT,6X25 92151B 92151-1546 2
BOLT,6X16 92151C 92151-1774 1
BOLT 92151D 92151-1776 4
DAMPER 92160 92160-1007 2
CLAMP 92170 92170-1036 6
BOLT-FLANGED-SMALL 132 132J0830 2
CLAMP 92170A 92170-1201 1
CLAMP 92170B 92170-1493 1
CLAMP 92170C 92170-1514 1
CLAMP 92171 92171-0179 2
CLAMP 92171A 92171-1215 1
CLAMP,RADIATOR 92171B 92171-1465 1
SCREW,6X14 92172 92172-0004 2
