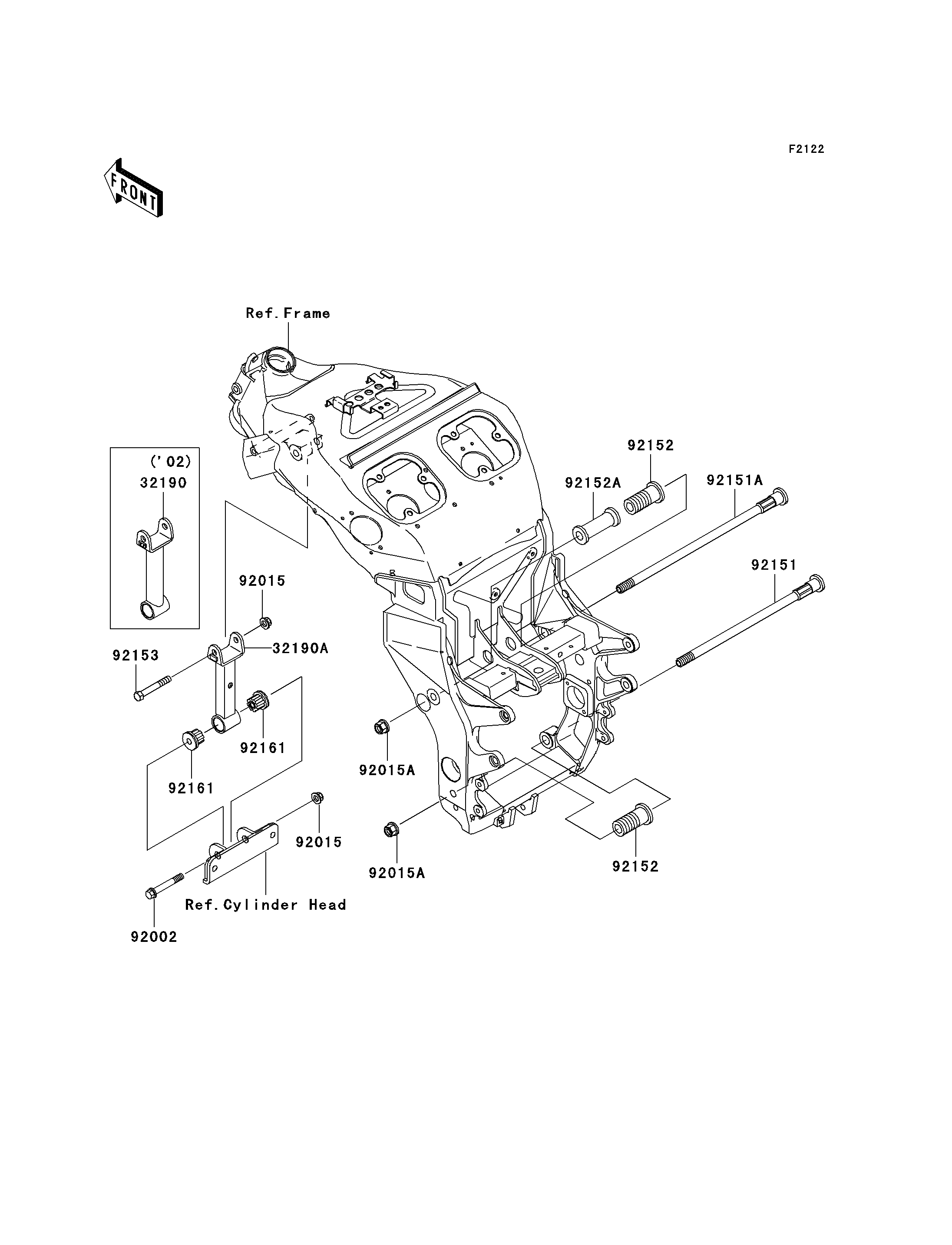

32190A
92002
92015
92015
92015A
92015A
92151
92151A
92152
92152
92152A
92153
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,FR,UPP 32190A 32190-1310 1
BOLT,10X70 92002 92002-1183 1
NUT,FLANGED,10MM 92015 92015-1335 2
NUT,FLANGED,12MM 92015A 92015-1433 2
BOLT,12X268 92151 92151-1558 1
BOLT,12X312 92151A 92151-1559 1
COLLAR,L=51 92152 92152-1185 2
COLLAR,L=65 92152A 92152-1186 1
BOLT,10X70 92153 92153-1104 1
DAMPER,ENGINE MOUNT 92161 92161-1072 2
