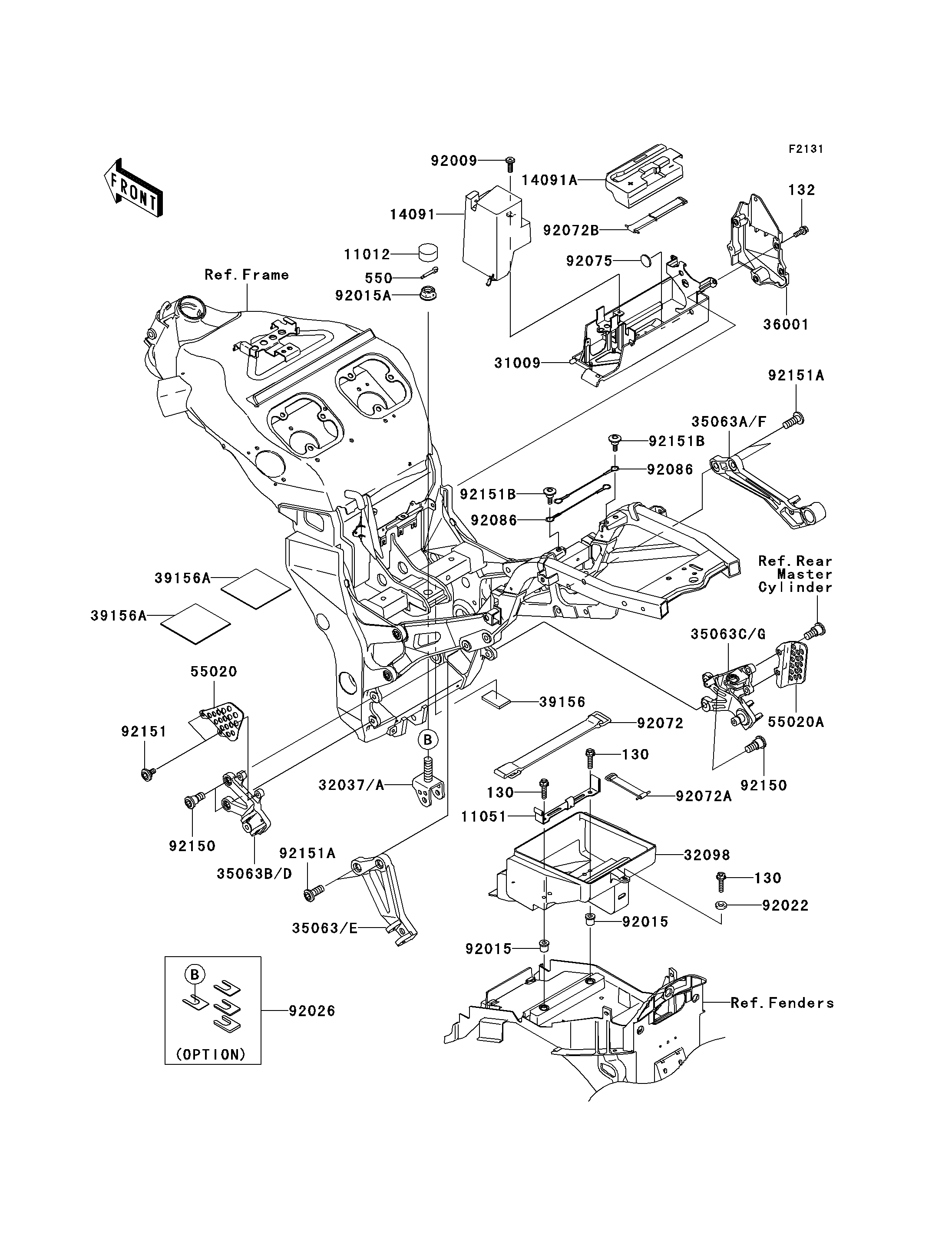

2004 Ninja® ZX™-12R - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
132
550
11012
11051
14091
14091A
31009
32037A
32098
35063
35063A
35063B
35063C
36001
39156
39156A
39156A
55020
55020A
92009
92015
92015
92015A
92022
92026
92072
92072A
92072B
92075
92086
92086
92150
92150
92151
92151A
92151A
92151B
92151B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 3
BOLT-FLANGED-SMALL 132 132J0616 6
PIN-COTTER,4.0X25 550 550D4025 1
CAP,AXLE NUT 11012 11012-1592 1
BRACKET,TOOL CASE 11051 11051-1377 1
COVER,FUSE 14091 14091-1238 1
COVER,BATTERY 14091A 14091-1288 1
CASE-COMP-BATTERY 31009 31009-1056 1
BRACKET-SHOCKABSORBER 32037A 32037-1800 1
CASE-TOOL 32098 32098-1131 1
STAY,RR,LH,P.SILVER 35063 35063-0062-458 1
STAY,RR,RH,P.SILVER 35063A 35063-0063-458 1
STAY,FR,LH,P.SILVER 35063B 35063-0068-458 1
STAY,FR,RH,P.SILVER 35063C 35063-0069-458 1
COVER-SIDE,FRAME,RH,F.S.BLACK 36001 36001-1670-8F 1
PAD 39156 39156-1649 1
PAD 39156A 39156-1650 2
GUARD,FRONT STEP,LH 55020 55020-1696 1
GUARD,FRONT STEP,RH 55020A 55020-1697 1
SCREW,5X16 92009 92009-1909 1
NUT 92015 92015-1700 2
NUT,FLANGED,16MM 92015A 92015-1881 1
WASHER,7X16X1.2 92022 92022-1344 1
SPACER,SET 92026 92026-1586 1 (OPTION)
BAND,L=150 92072 92072-1203 1
BAND,TOOL 92072A 92072-1349 1
BAND,L=290 92072B 92072-1377 1
DAMPER,RUBBER 92075 92075-261 2
WIRE,L=150 92086 92086-1075 2
BOLT,SOCKET,8X20 92150 92150-1839 4
BOLT,6MM 92151 92151-1334 2
BOLT,SOCKET,10X30 92151A 92151-1372 4
BOLT,SOCKET,6X21 92151B 92151-1880 2
