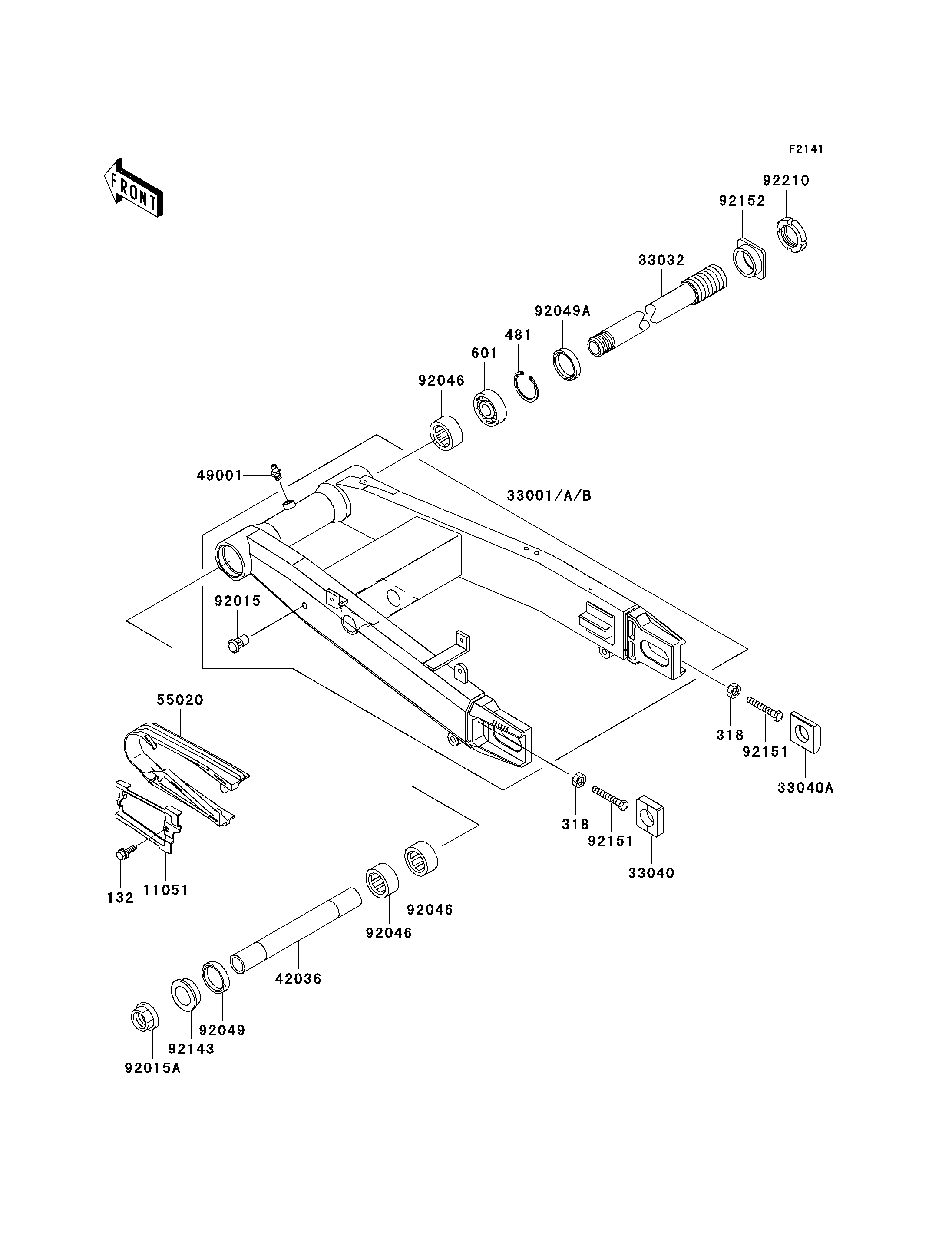

2004 Ninja® ZX™-12R - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
132
318
318
481
601
11051
33001B
33032
33040
33040A
42036
49001
55020
92015
92015A
92046
92046
92046
92049
92049A
92143
92151
92151
92152
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0612 1
NUT-HEX-SMALL,8MM 318 318G0800 2
CIRCLIP-TYPE-C,47MM 481 481J4700 1
BEARING-BALL,#6005U 601 601B6005U 1
BRACKET,CHAIN GUARD 11051 11051-1912 1
ARM-COMP-SWING,F.S.BLACK 33001B 33001-1620-8F 1
SHAFT-SWING ARM 33032 33032-1193 1
ADJUSTER-CHAIN 33040 33040-1114 1
ADJUSTER-CHAIN,RH 33040A 33040-1180 1
SLEEVE,SWING ARM,L=224.5 42036 42036-1312 1
NIPPLE-GREASE 49001 49001-0001 1
GUARD,CHAIN 55020 55020-1695 1
NUT,POP,6MM,L=16.5 92015 92015-1792 1
NUT,FLANGED,25MM 92015A 92015-1845 1
BEARING-NEEDLE,BM3520 92046 92046-1205 3
SEAL-OIL,MHA 35X47X5 92049 92049-1381 1
SEAL-OIL,KC38X47X6 92049A 92049-1521 1
COLLAR,SWING ARM,L=12.5 92143 92143-1481 1
BOLT,8X55 92151 92151-1578 2
COLLAR,SWING ARM,L=14.5 92152 92152-1445 1
NUT,32MM 92210 92210-1205 1
