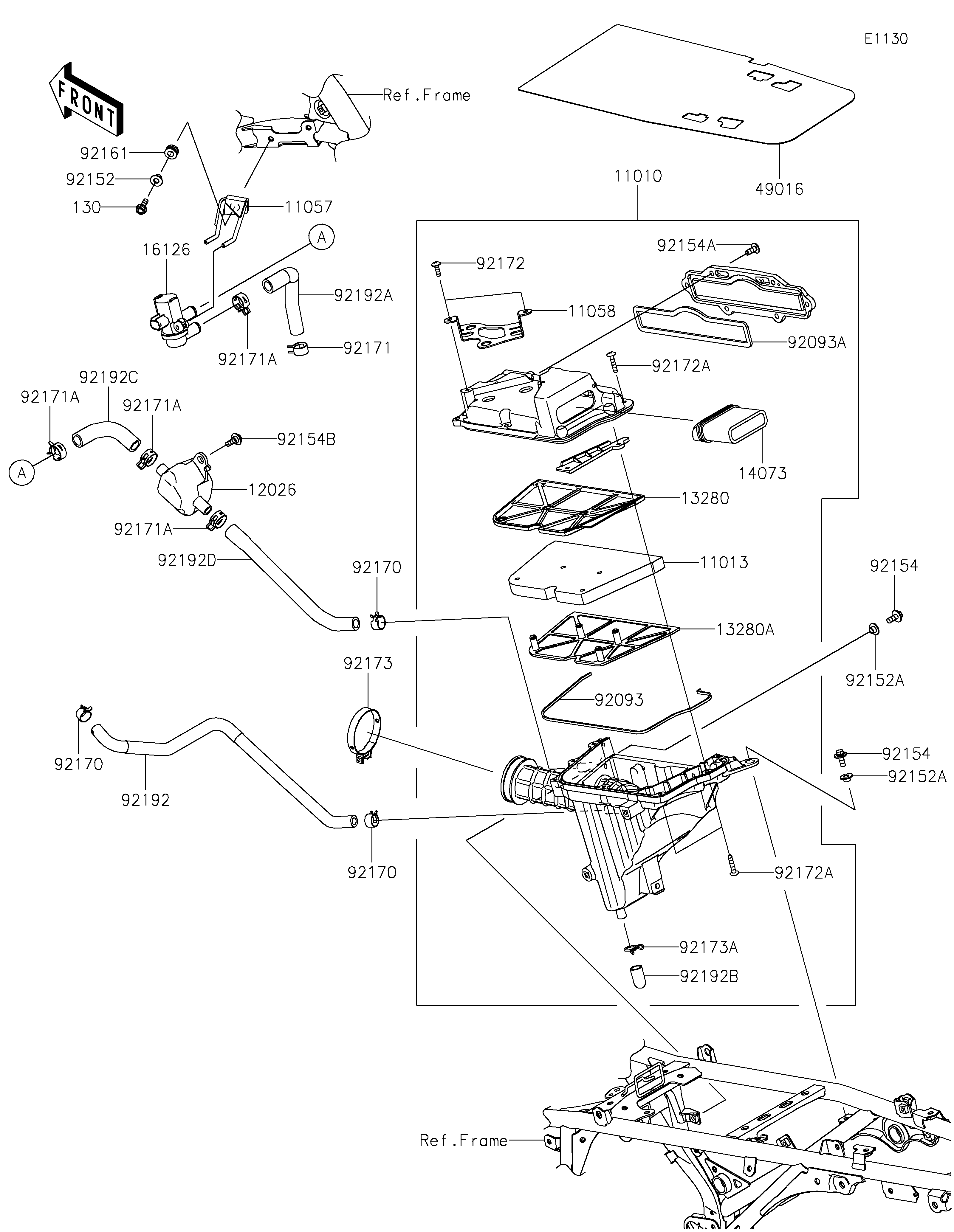

2025 KLX®230R S - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11057
11058
12026
13280
13280A
14073
16126
49016
92093
92093A
92152
92152A
92152A
92154
92154
92154A
92154B
92161
92170
92170
92170
92171
92171A
92171A
92171A
92171A
92172
92172A
92172A
92173
92173A
92192
92192A
92192B
92192C
92192D
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1845 1
ELEMENT-AIR FILTER 11013 11013-0790 1
BRACKET,ASWV 11057 11057-2432 1
BRACKET,ECU 11058 11058-1337 1
CHAMBER 12026 12026-0026 1
HOLDER,UPP 13280 13280-0945 1
HOLDER,LWR 13280A 13280-0946 1
DUCT,IN 14073 14073-1931 1
VALVE,AIR SWITCH 16126 16126-0750 1
COVER-SEAL 49016 49016-0726 1
SEAL 92093 92093-0727 1
SEAL 92093A 92093-0728 1
COLLAR,6.3X8.3X9.2 92152 92152-1725 1
COLLAR,6.3X8.3X6.2 92152A 92152-2586 2
BOLT,FLANGED-SMALL,6X16 92154 92154-1183 2
BOLT,6X16 92154A 92154-3970 6
BOLT,FLANGED,6X12 92154B 92154-7289 1
DAMPER 92161 92161-0031 1
CLAMP 92170 92170-1434 3
CLAMP 92171 92171-0533 1
CLAMP,18.8MM 92171A 92171-2056 4
SCREW,5X16 92172 92172-0908 2
SCREW 92172A 92172-1291 7
CLAMP 92173 92173-2191 1
CLAMP,14MM 92173A 92173-2474 1
TUBE,BLOW-BY 92192 92192-1929 1
TUBE,ASWV-HEAD 92192A 92192-1930 1
TUBE 92192B 92192-2582 1
TUBE,CHAMBER-ASWV 92192C 92192-2723 1
TUBE,A/C-CHAMBER 92192D 92192-2724 1
BOLT-FLANGED,6X18 130 130BA0618 1
