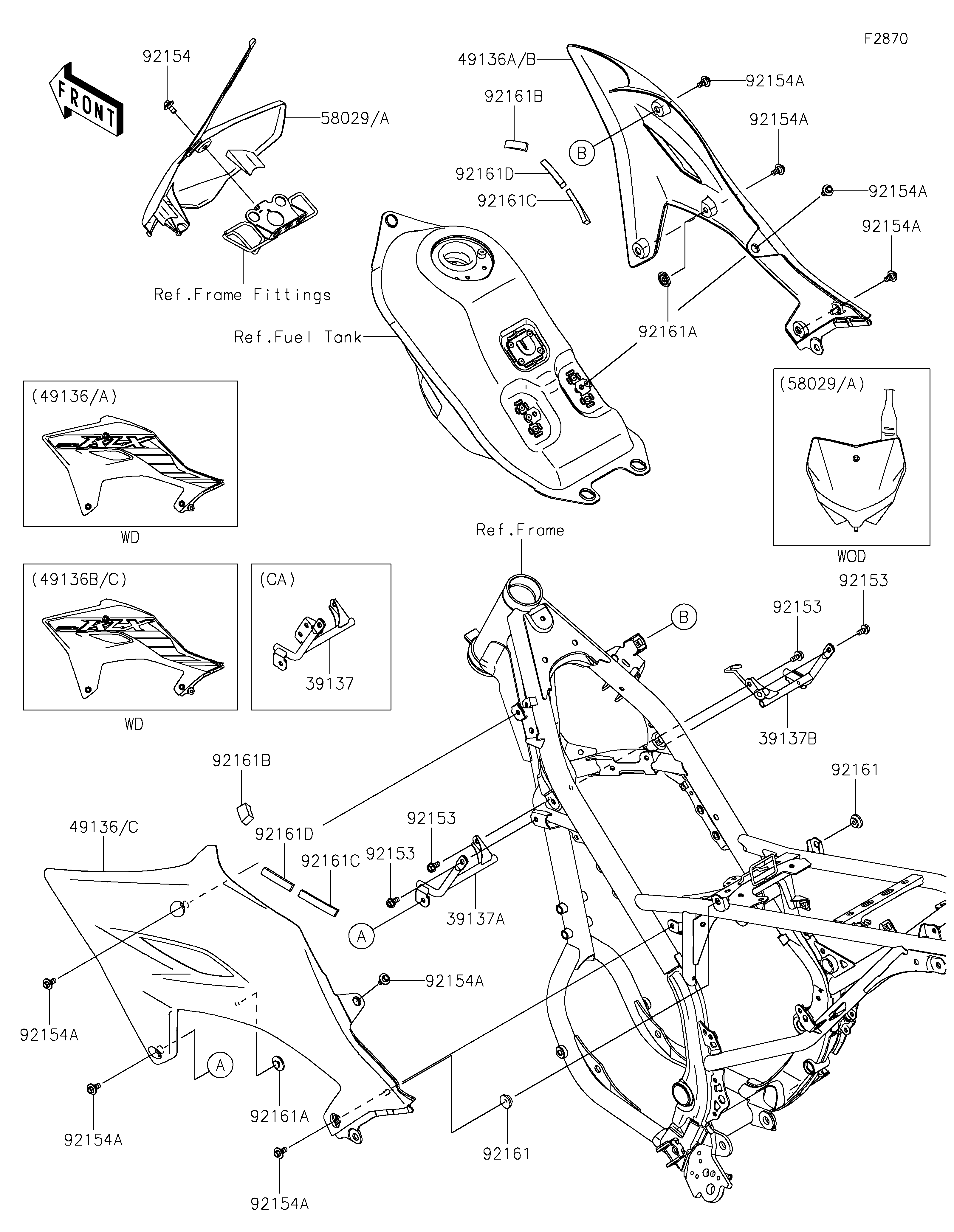

2025 KLX®230R S - Cowling

DOWNLOAD PDF
SELECT A NEW PART
39137
39137A
39137B
49136
49136A
49136B
49136C
58029
58029A
92153
92153
92153
92153
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAY-COMP,LH,F.S.BLACK 39137 39137-0751-18R 1 CA
STAY-COMP,LH,F.S.BLACK 39137A 39137-0752-18R 1 CN,US
STAY-COMP,RH,F.S.BLACK 39137B 39137-0762-18R 1
SHROUD-ENGINE,LH,B.GRAY 49136 49136-5304-67A 1
SHROUD-ENGINE,RH,B.GRAY 49136A 49136-5305-67A 1
SHROUD-ENGINE,RH,L.GREEN 49136B 49136-5307-290 1
SHROUD-ENGINE,LH,L.GREEN 49136C 49136-5308-290 1
PLATE-NUMBER,L.GREEN 58029 58029-0005-290 1
PLATE-NUMBER,B.GRAY 58029A 58029-0005-67A 1
BOLT,FLANGED,6X12 92153 92153-1283 4
BOLT,FLANGED,6X14 92154 92154-1231 1
BOLT,FLANGED,6X13 92154A 92154-4411 8
DAMPER 92161 92161-1531 2
DAMPER 92161A 92161-2547 2
DAMPER,15X30X10 92161B 92161-2674 2
DAMPER,10X60X6 92161C 92161-2724 2
DAMPER,10X50X8 92161D 92161-2725 2
