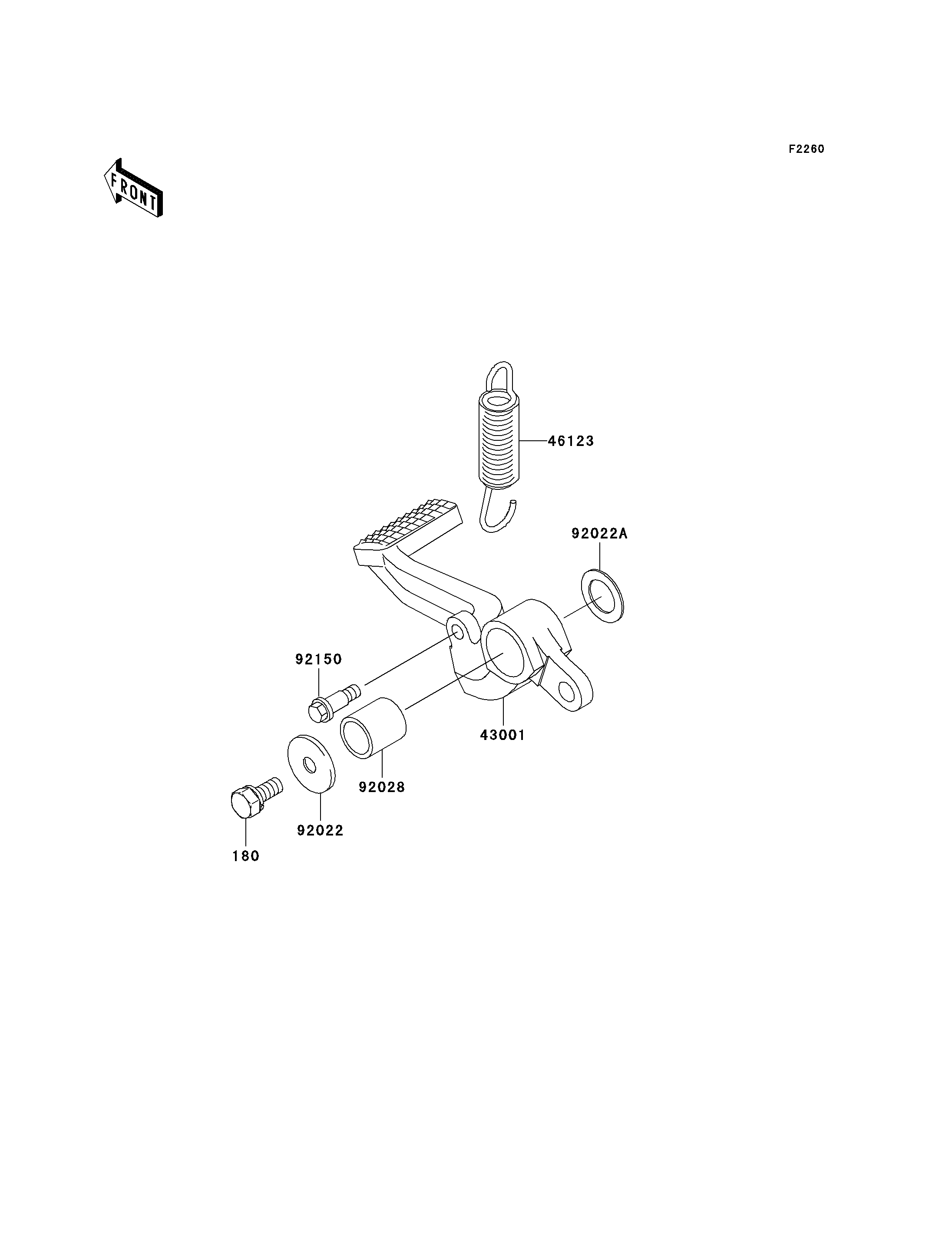

2004 Ninja® ZX-12R - Brake Pedal/Torque Link

180
43001
46123
92022
92022A
92028
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180H0614 1
LEVER-BRAKE,PEDAL 43001 43001-1421 1
SPRING-COMP,BRAKE PEDAL RETURN 46123 46123-1058 1
WASHER,7X28X1.6 92022 92022-1282 1
WASHER,15.3X24X1 92022A 92022-326 1
BUSHING,BRAKE PEDAL 92028 92028-1282 1
BOLT,6MM 92150 92150-1113 1
