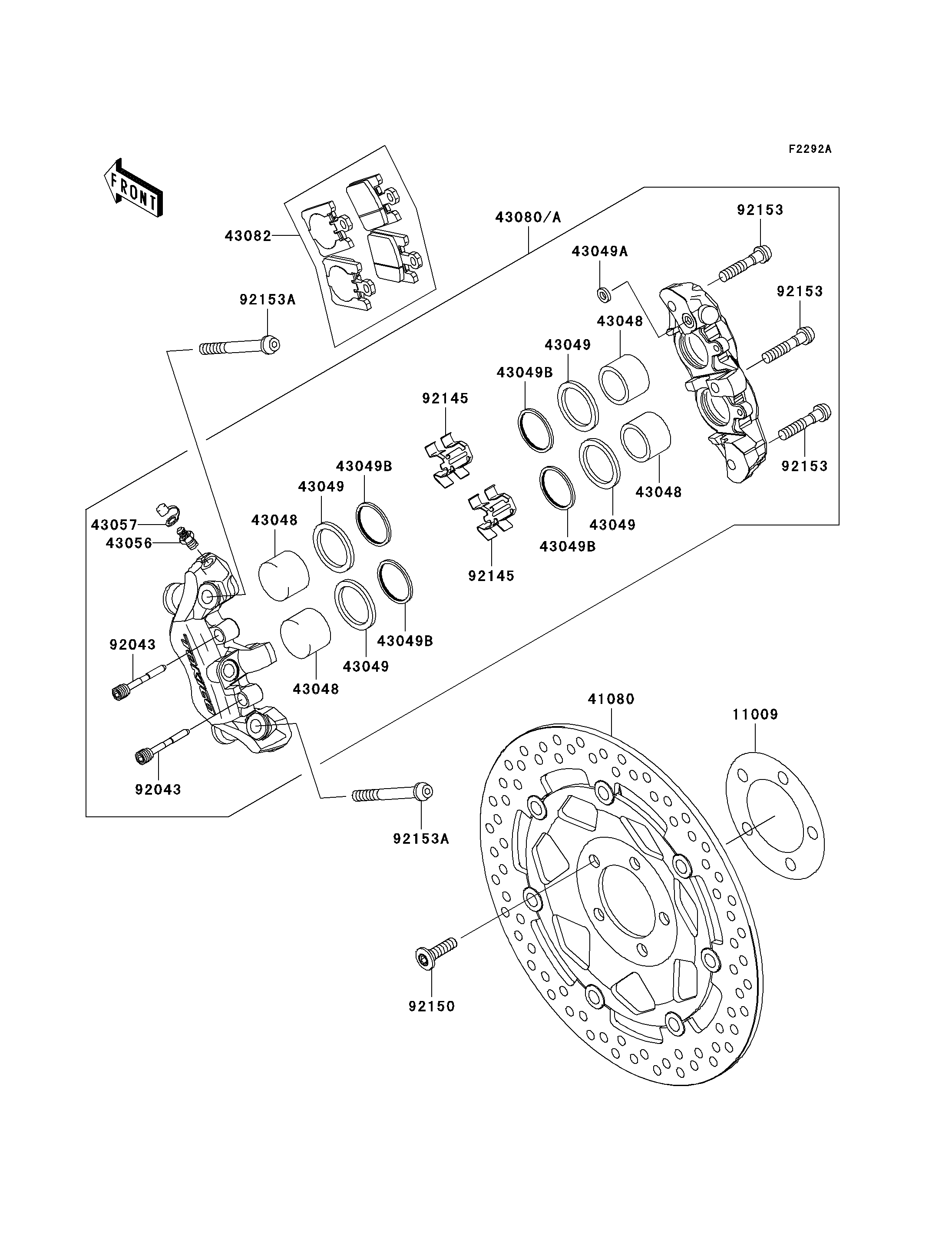

2004 Ninja® ZX™-12R - Front Brake(B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
11009
41080
43048
43048
43048
43048
43049
43049
43049
43049
43049A
43049B
43049B
43049B
43049B
43056
43057
43080
43080A
43082
92043
92043
92145
92145
92150
92153
92153
92153
92153A
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11009 11009-1754 2
DISC,FR,HOUSING GLD+DISC SIL 41080 41080-0001-488 2
PISTON-CALIPER 43048 43048-0004 8
PACKING,PISTON 43049 43049-0003 8
PACKING,SEAL,6.5X11.5X2.2 43049A 43049-1004 2
PACKING,WIPER 43049B 43049-1107 8
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,FR,LH,GOLD 43080 43080-0017-483 1
CALIPER-SUB-ASSY,FR,RH,GOLD 43080A 43080-0018-483 1
PAD-ASSY-BRAKE 43082 43082-0019 2
PIN,PAD 92043 92043-1709 4
SPRING,PAD 92145 92145-1568 4
BOLT,SOCKET,8X30 92150 92150-1771 10
BOLT,SOCKET,8X40 92153 92153-0360 6
BOLT,SOCKET,10X60 92153A 92153-0577 4
