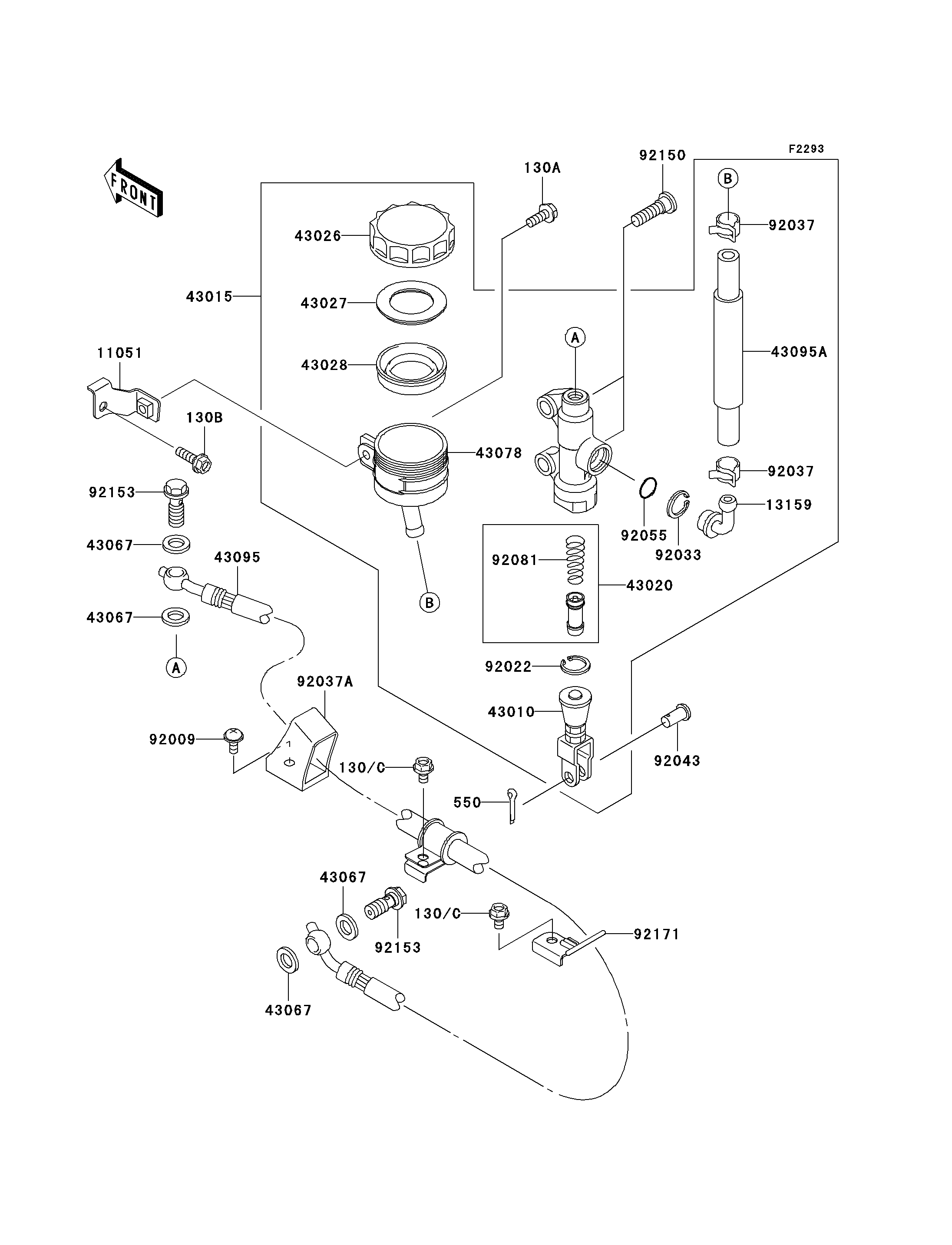

2004 Ninja® ZX™-12R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130A
130B
130C
130C
550
11051
13159
43010
43015
43020
43026
43027
43028
43067
43067
43067
43067
43078
43095
43095A
92009
92022
92033
92037
92037
92037A
92043
92055
92081
92150
92153
92153
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130A 130J0616 1
BOLT-FLANGED 130B 130J0620 1
BOLT-FLANGED 130C 130L0610 2
PIN-COTTER,2.0X15 550 550D2015 1
BRACKET,RESERVOIR TANK 11051 11051-1378 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
ROD-ASSY-BRAKE 43010 43010-1055 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1649 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
HOSE-BRAKE,RR 43095 43095-1154 1
HOSE-BRAKE,RR MASTER CYLINDER 43095A 43095-1161 1
SCREW,6X10 92009 92009-1661 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
CLAMP,HOSE 92037A 92037-1896 1
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,8X30 92150 92150-1843 2
BOLT,OIL,L=23 92153 92153-0627 2
CLAMP,BRAKE HOSE,RR 92171 92171-1162 1
