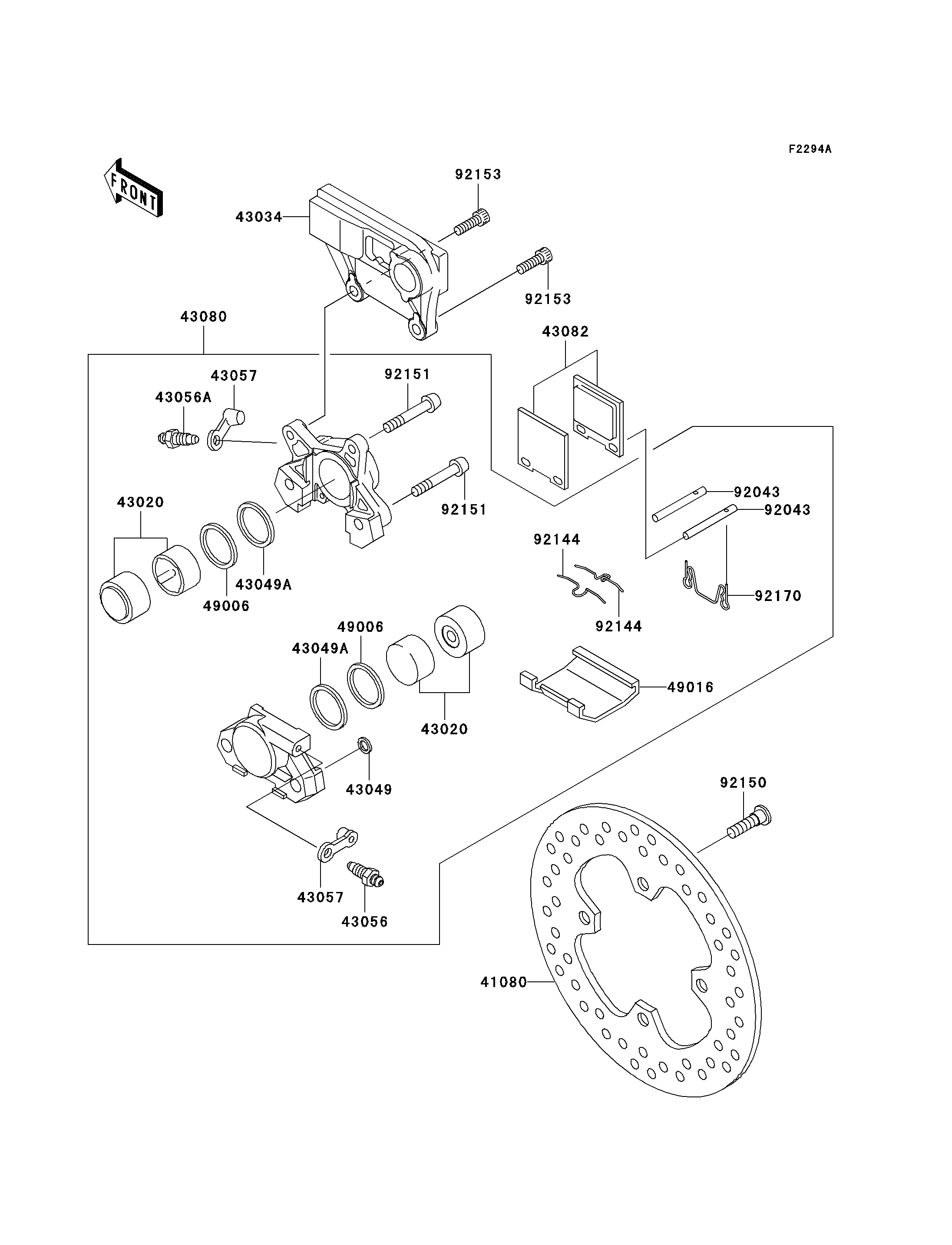

2005 Ninja® ZX™-12R - Rear Brake(B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
41080
43020
43020
43034
43049
43049A
43049A
43056
43056A
43057
43057
43080
43082
49006
49006
49016
92043
92043
92144
92144
92150
92151
92151
92153
92153
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,RR 41080 41080-0053 1
PISTON-COMP-BRAKE 43020 43020-1111 2
HOLDER-BRAKE,REAR CALIPER 43034 43034-1158 1
PACKING,SEAL,6.5X11.5X2.2 43049 43049-1004 1
PACKING,PISTON SEAL 43049A 43049-1097 2
BREATHER 43056 43056-003 1
BREATHER-BRAKE 43056A 43056-1054 1
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,RR,GOLD 43080 43080-5069-483 1
PAD-ASSY-BRAKE 43082 43082-1257 1
BOOT,PISTON SEAL 49006 49006-1212 2
COVER-SEAL 49016 49016-1145 1
PIN 92043 92043-1522 2
SPRING,PAD 92144 92144-1401 2
BOLT,SOCKET,8X30 92150 92150-1771 4
BOLT,SOCKET,10X45 92151 92151-1106 2
BOLT,SOCKET,8X25 92153 92153-0512 2
CLAMP 92170 92170-1635 1
