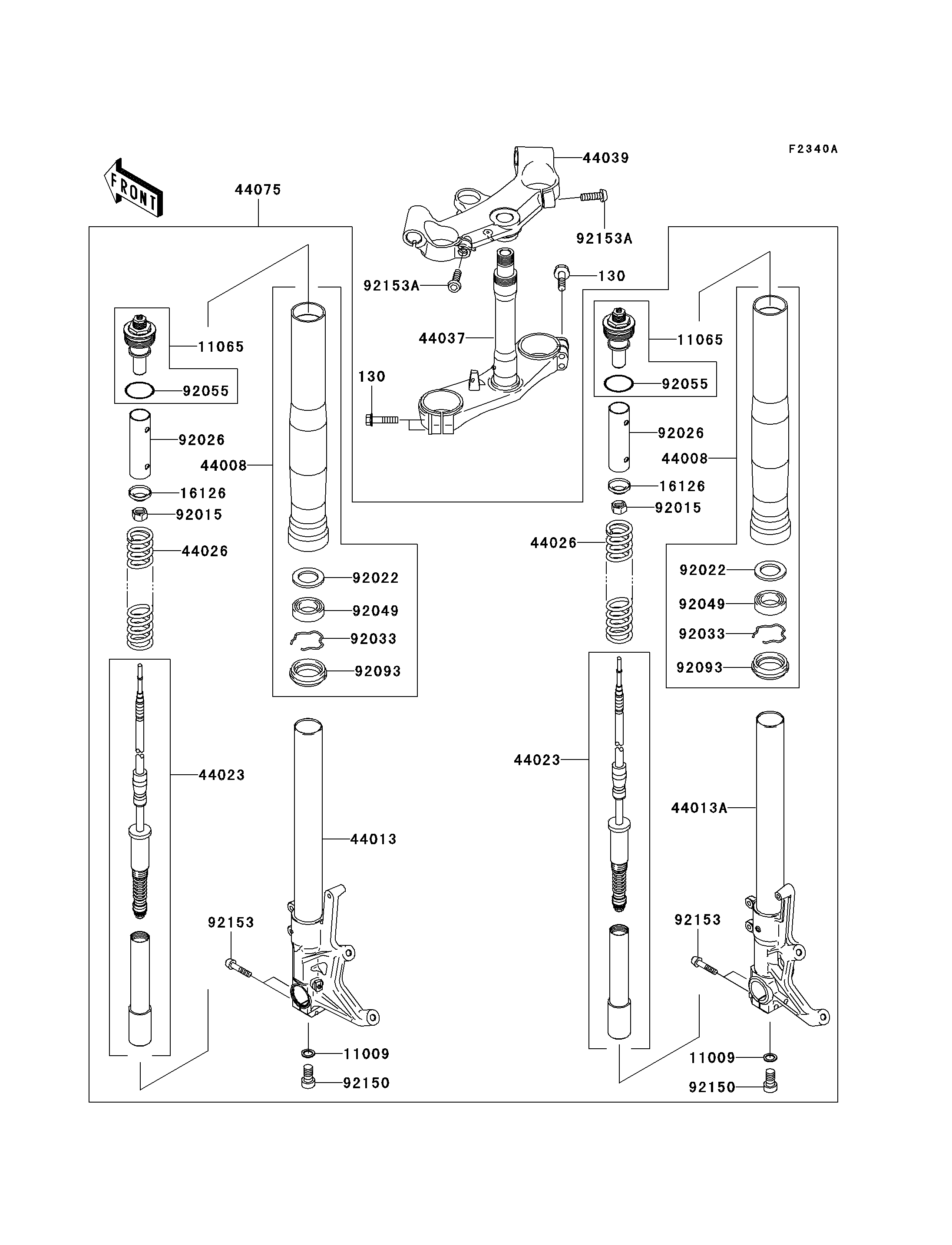

2004 Ninja® ZX™-12R - Front Fork(B3/B4)
130
130
11009
11009
11065
11065
16126
16126
44008
44008
44013
44013A
44023
44023
44026
44026
44037
44039
44075
92015
92015
92022
92022
92026
92026
92033
92033
92049
92049
92055
92055
92093
92093
92150
92150
92153
92153
92153A
92153A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X35 | 130 | 130G0835 | 4 | ||
GASKET,FORK CYLINDER BOLT | 11009 | 11009-1127 | 2 | ||
CAP,FORK | 11065 | 11065-0046 | 2 | ||
VALVE | 16126 | 16126-1381 | 2 | ||
PIPE-FORK OUTER | 44008 | 44008-0009 | 2 | ||
PIPE-FORK INNER,LH | 44013 | 44013-0009 | 1 | ||
PIPE-FORK INNER,RH | 44013A | 44013-0010 | 1 | ||
CYLINDER-SET-FORK | 44023 | 44023-1167 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-1766 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-0010 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-0009 | 1 | ||
DAMPER-SET-FORK | 44075 | 44075-0017 | 1 | ||
NUT | 92015 | 92015-1905 | 2 | ||
WASHER | 92022 | 92022-1299 | 2 | ||
SPACER,FORK,L=119 | 92026 | 92026-1621 | 2 | ||
RING-SNAP | 92033 | 92033-1077 | 2 | ||
SEAL-OIL,FORK OUTER TUBE | 92049 | 92049-1522 | 2 | ||
RING-O,FORK,AIR TUBE | 92055 | 92055-1333 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1480 | 2 | ||
BOLT,12X22 | 92150 | 92150-1398 | 2 | ||
BOLT,SOCKET,8X40 | 92153 | 92153-1178 | 4 | ||
BOLT,SOCKET,8X25 | 92153A | 92153-1179 | 2 |
