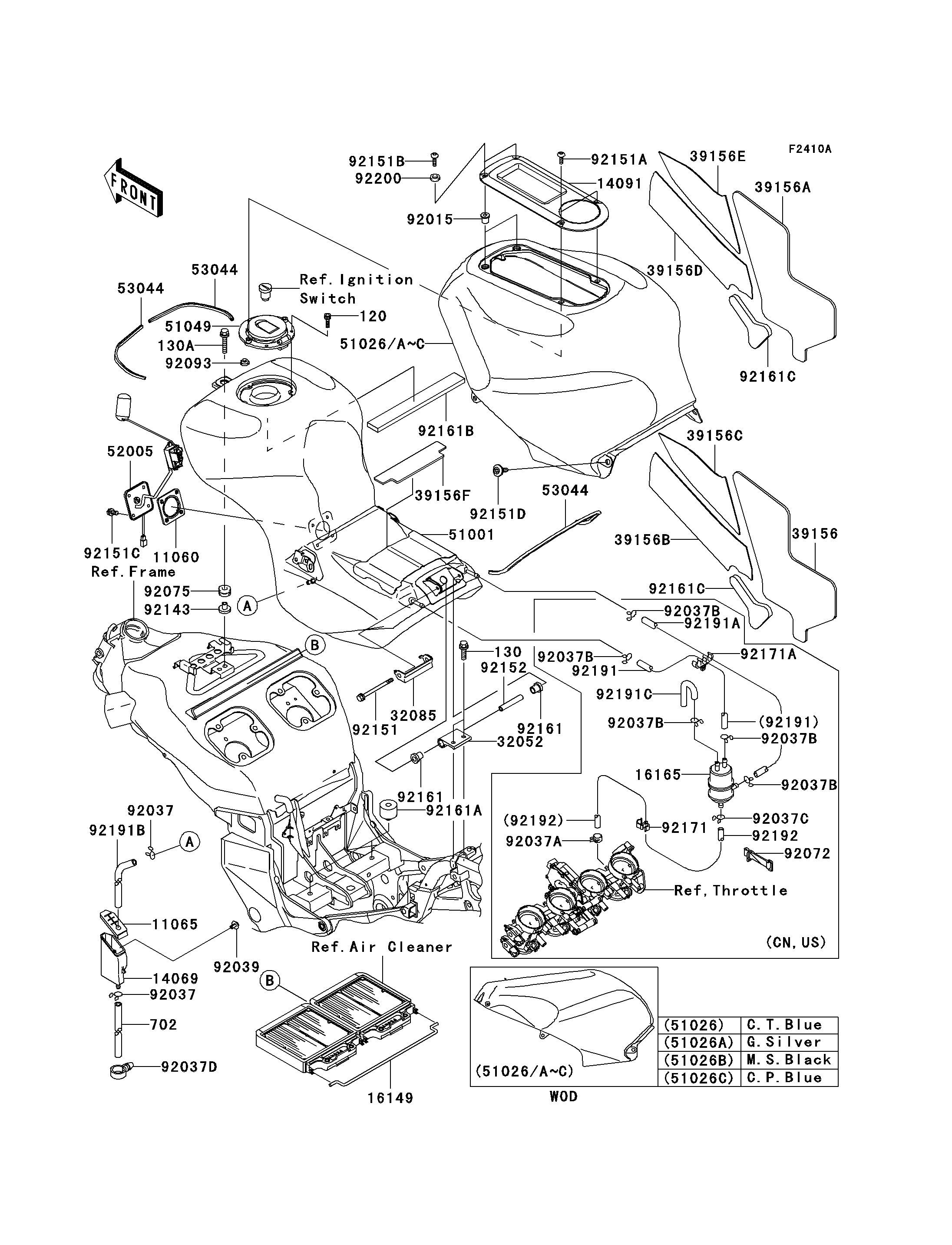

2004 Ninja® ZX™-12R - Fuel Tank(B3/B4)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11065
11065
14069
14069
14091
14091
16149
16149
32052
32052
32085
32085
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
51001
51001
51026
51026
51026A
51026A
51049
51049
52005
52005
53044
53044
53044
53044
53044
53044
92015
92015
92037
92037
92037
92037
92037D
92037D
92039
92039
120
120
130
130
130A
130A
702
702
92075
92075
92093
92093
92143
92143
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92151D
92151D
92152
92152
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92191B
92191B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
CAP,BREATHER 11065 11065-1179 1
BREATHER,FUEL TANK DRAIN 14069 14069-1065 1
COVER,FUEL TANK COVER CAP 14091 14091-1145 1
BAR,FUEL TANK 16149 16149-1119 1
BRACKET-TANK,RR 32052 32052-1500 1
STOPPER,FUEL TANK,RR 32085 32085-1507 1
PAD,FUEL TANK COVER,RR,UPP,LH 39156 39156-1627 1
PAD,FUEL TANK COVER,RR,UPP,RH 39156A 39156-1628 1
PAD,FUEL TANK COVER,FR,LWR,LH 39156B 39156-1688 1
PAD,FUEL TANK COVER,FR,UPP,LH 39156C 39156-1689 1
PAD,FUEL TANK COVER,FR,LWR,RH 39156D 39156-1690 1
PAD,FUEL TANK COVER,FR,UPP,RH 39156E 39156-1691 1
PAD,FUEL TANK 39156F 39156-1695 1
TANK-COMP-FUEL,M.GRAYSTONE 51001 51001-1666-713 1
COVER TANK,FUEL,C.T.BLUE 51026 51026-1051-235 1
COVER TANK,FUEL,G.SILVER 51026A 51026-1051-474 1
CAP-TANK,FUEL 51049 51049-1145 1
GAUGE,FUEL 52005 52005-1158 1
TRIM 53044 53044-1296 3
NUT 92015 92015-1700 2
CLAMP,TUBE 92037 92037-010 2
CLAMP,HOSE 92037D 92037-1827 1
RIVET 92039 92039-1256 1
BOLT-SOCKET 120 120S0512 3
BOLT-FLANGED 130 130J0620 2
BOLT-FLANGED,6X30,BLACK 130A 130J0630 1
TUBE-RUBBER,6X9X420 702 702A06420 1
DAMPER 92075 92075-1690 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR 92143 92143-1515 1
BOLT,6X80 92151 92151-1200 1
BOLT,SOCKET,6X10 92151A 92151-1449 2
BOLT,SOCKET,6X14 92151B 92151-1554 2
BOLT,5X12 92151C 92151-1599 4
BOLT,SOCKET,6MM 92151D 92151-1866 2
COLLAR,6.8X10X60 92152 92152-1182 1
DAMPER 92161 92161-1070 2
DAMPER 92161A 92161-1116 2
DAMPER 92161B 92161-1117 1
DAMPER,FUEL TANK COVER,RR,LWR 92161C 92161-1153 2
TUBE 92191B 92191-1468 1
WASHER,6.2X10X1 92200 92200-1465 2
SEPARATOR 16165 16165-1001 1 CNUS
COVER TANK,FUEL,M.S.BLACK 51026B 51026-1051-660 1 CN
CLAMP,TUBE 92037A 92037-1461 1 CNUS
CLAMP,TUBE 92037B 92037-147 5 CNUS
CLAMP 92037C 92037-1712 1 CNUS
BAND 92072 92072-1085 1 CNUS
CLAMP 92171 92171-0354 1 CNUS
CLAMP 92171A 92171-1213 1 CNUS
TUBE,SEPARATOR,BLUE 92191 92191-1381 1 CNUS
TUBE,SEPARATOR,RED 92191A 92191-1382 1 CNUS
TUBE,SEPARATOR 92191C 92191-1654 1 CNUS
TUBE,SEPARATOR,WHITE 92192 92192-0127 1 CNUS
