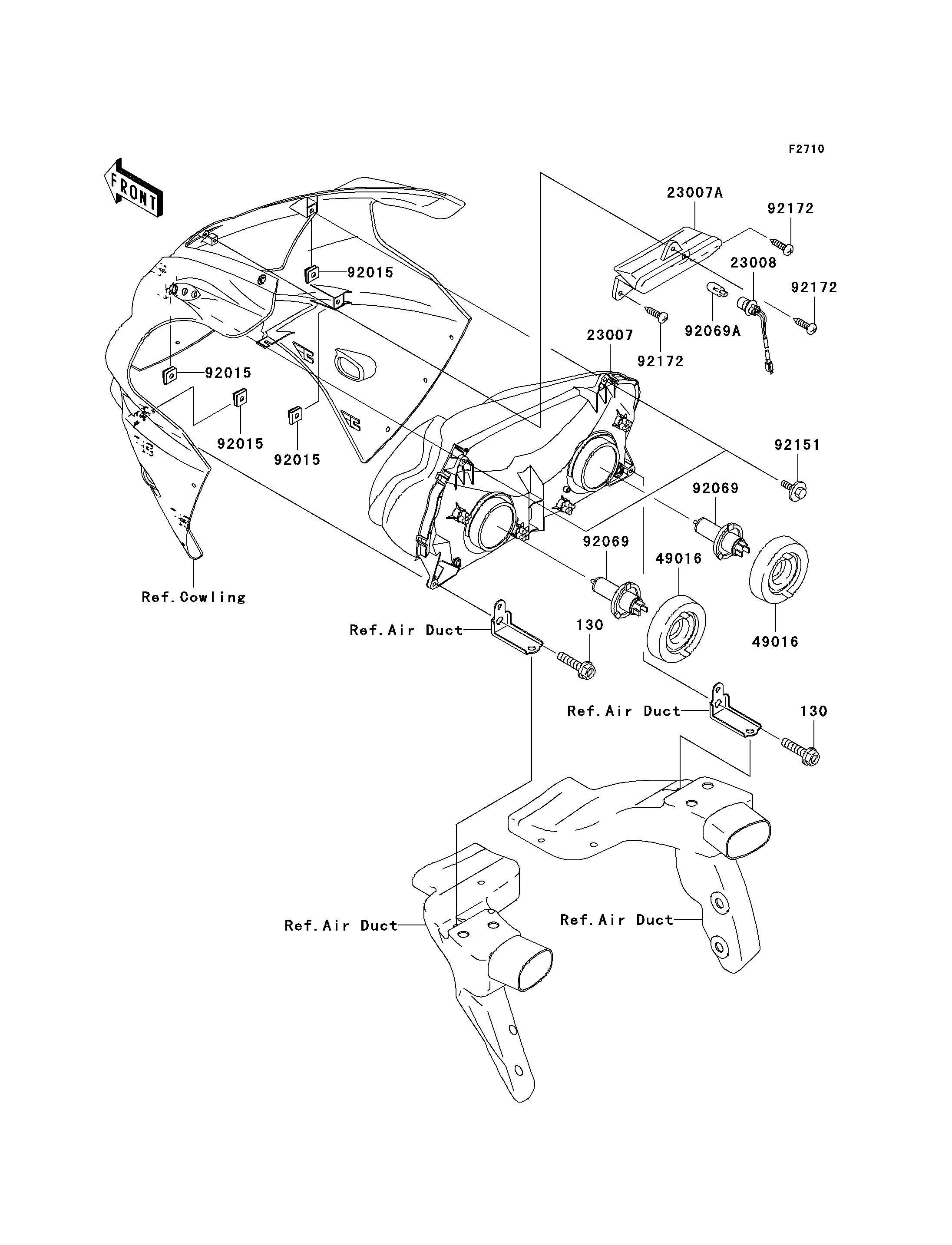

Parts Diagrams |
130
130
23007
23007A
23008
49016
49016
92015
92015
92015
92015
92069
92069
92069A
92151
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X25 | 130 | 130J0625 | 2 | ||
| LENS-COMP,HEAD LAMP | 23007 | 23007-1419 | 1 | ||
| LENS-COMP,POSITION LAMP | 23007A | 23007-1421 | 1 | ||
| SOCKET-ASSY,POSITION LAMP | 23008 | 23008-1615 | 1 | ||
| COVER-SEAL,HEAD LAMP | 49016 | 49016-1209 | 2 | ||
| NUT,6MM | 92015 | 92015-1094 | 4 | ||
| BULB,12V 60/55W,H4 | 92069 | 92069-1002 | 2 | ||
| BULB,12V 5W | 92069A | 92069-1016 | 1 | ||
| BOLT,6X25 | 92151 | 92151-1241 | 2 | ||
| SCREW,TAPPING,5X14 | 92172 | 92172-0006 | 3 |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS-COMP,HEAD LAMP | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-COMP,POSITION LAMP | |
| REF # | 23007A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,POSITION LAMP | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,HEAD LAMP | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 60/55W,H4 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 5W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
