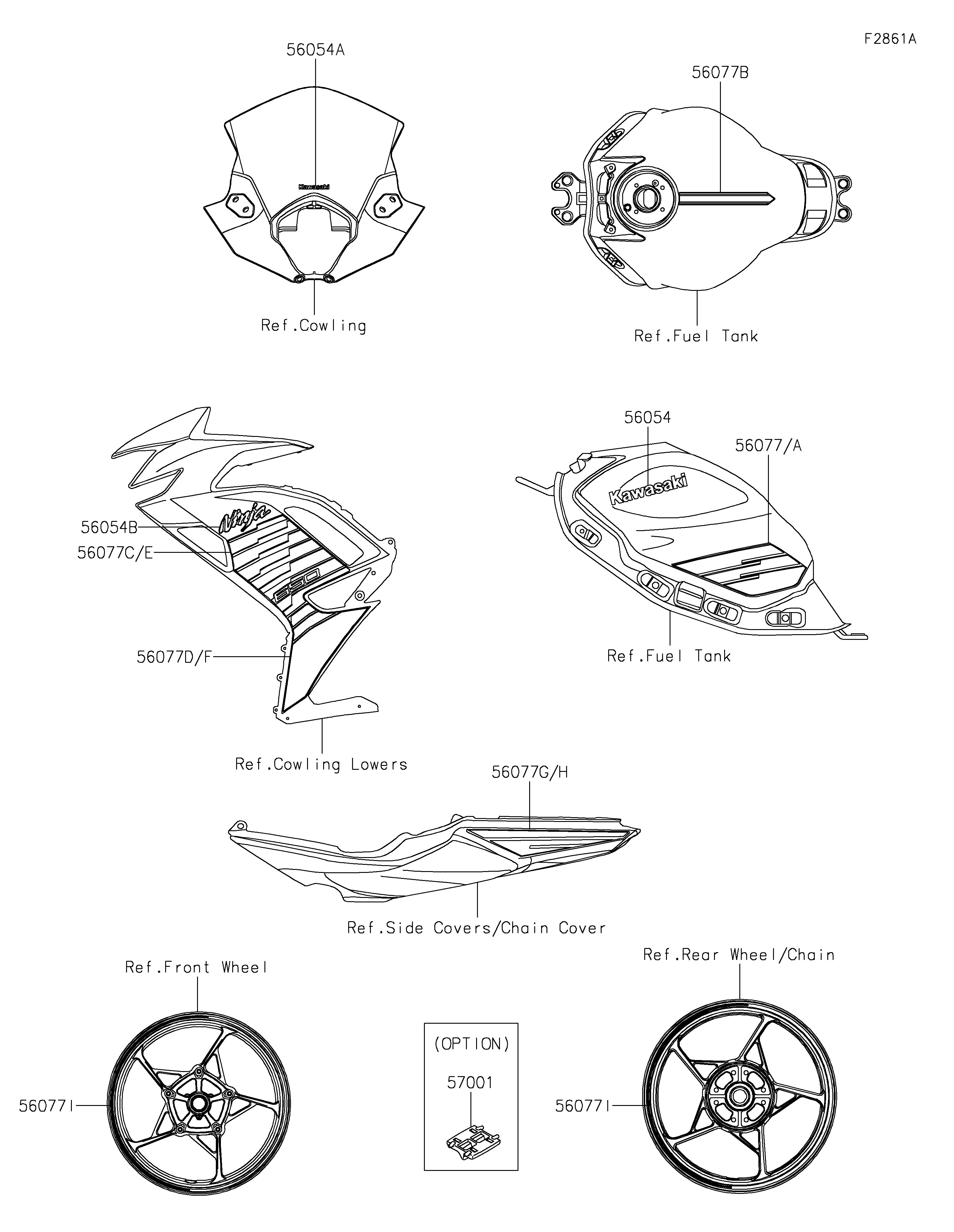

2025 Ninja 650 KRT Edition - Decals(Orange)(RSFAN)
56054
56054A
56054B
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077I
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,KAWASAKI | 56054 | 56054-1477 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2261 | 1 | ||
| MARK,SIDE COWL.,NINJA | 56054B | 56054-4264 | 2 | ||
| PATTERN,FUEL TANK,LH | 56077 | 56077-2085 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077A | 56077-2086 | 1 | ||
| PATTERN,FUEL TANK | 56077B | 56077-2087 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56077C | 56077-2088 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56077D | 56077-2089 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56077E | 56077-2090 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56077F | 56077-2091 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077G | 56077-2092 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077H | 56077-2093 | 1 | ||
| PATTERN,WHEEL,YEL/BLK,6X700 | 56077I | 56077-2094 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
