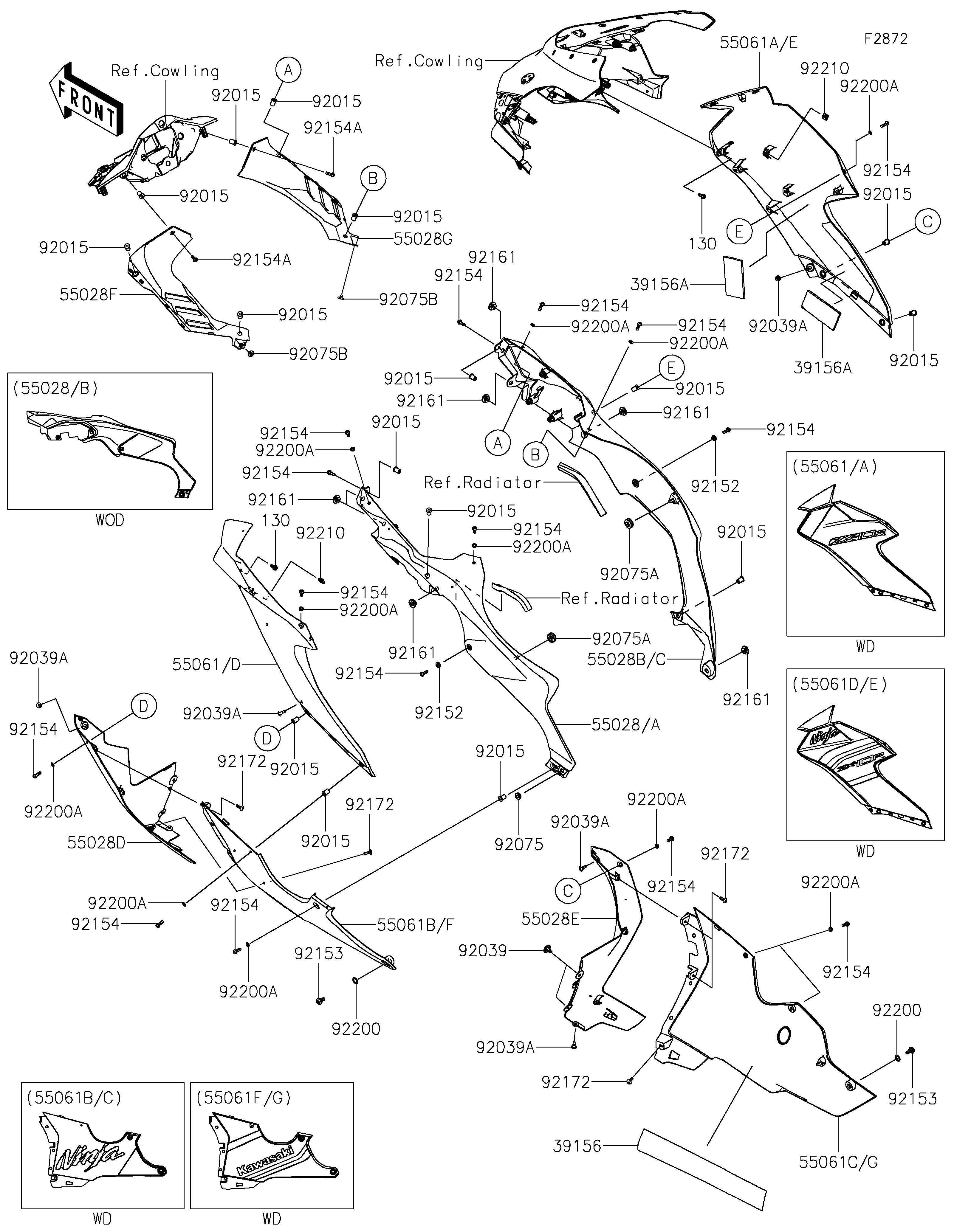

2025 NINJA® ZX™-10R ABS - Cowling Lowers
39156
39156A
39156A
55028
55028A
55028B
55028C
55028D
55028E
55028F
55028G
55061
55061A
55061B
55061C
55061D
55061E
55061F
55061G
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039A
92039A
92039A
92039A
92039A
92075
92075A
92075A
92075B
92075B
92152
92152
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92161
92161
92161
92161
92161
92161
92172
92172
92172
92172
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,49X400X0.3 | 39156 | 39156-0753 | 1 | ||
| PAD,100X50X5 | 39156A | 39156-2543 | 2 | ||
| COWLING,SIDE,LH,L.GREEN | 55028 | 55028-0759-777 | 1 | ||
| COWLING,SIDE,LH,EBONY | 55028A | 55028-0759-H8 | 1 | ||
| COWLING,SIDE,RH,L.GREEN | 55028B | 55028-0760-777 | 1 | ||
| COWLING,SIDE,RH,EBONY | 55028C | 55028-0760-H8 | 1 | ||
| COWLING,FR,LWR,LH | 55028D | 55028-0765 | 1 | ||
| COWLING,FR,LWR,RH | 55028E | 55028-0766 | 1 | ||
| COWLING,INNER,LH | 55028F | 55028-0767 | 1 | ||
| COWLING,INNER,RH | 55028G | 55028-0768 | 1 | ||
| COWLING,WINGLET,LH,M.F.S.BLACK | 55061 | 55061-5100-739 | 1 | ||
| COWLING,WINGLET,RH,M.F.S.BLACK | 55061A | 55061-5101-739 | 1 | ||
| COWLING,LWR,LH,M.F.S.BLACK | 55061B | 55061-5102-739 | 1 | ||
| COWLING,LWR,RH,M.F.S.BLACK | 55061C | 55061-5103-739 | 1 | ||
| COWLING,WINGLET,LH,L.GREEN | 55061D | 55061-5317-777 | 1 | ||
| COWLING,WINGLET,RH,L.GREEN | 55061E | 55061-5318-777 | 1 | ||
| COWLING,LWR,LH,EBONY | 55061F | 55061-5319-H8 | 1 | ||
| COWLING,LWR,RH,EBONY | 55061G | 55061-5320-H8 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 16 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 2 | ||
| RIVET | 92039A | 92039-0068 | 5 | ||
| DAMPER,6X16X7 | 92075 | 92075-1011 | 1 | ||
| DAMPER | 92075A | 92075-1067 | 2 | ||
| DAMPER,BOOST SENSOR | 92075B | 92075-2113 | 2 | ||
| COLLAR | 92152 | 92152-2740 | 2 | ||
| BOLT,SOCKET,6MM | 92153 | 92153-0489 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 16 | ||
| BOLT,SOCKET,5X16 | 92154A | 92154-1701 | 2 | ||
| DAMPER,6X20X7.5 | 92161 | 92161-1937 | 7 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 6 | ||
| WASHER,10.4X15.9X0.5 | 92200 | 92200-0157 | 2 | ||
| WASHER,5.2X10X1.0 | 92200A | 92200-1820 | 12 | ||
| NUT | 92210 | 92210-0571 | 2 | ||
| BOLT-FLANGED,5X12 | 130 | 130BA0512 | 2 |
