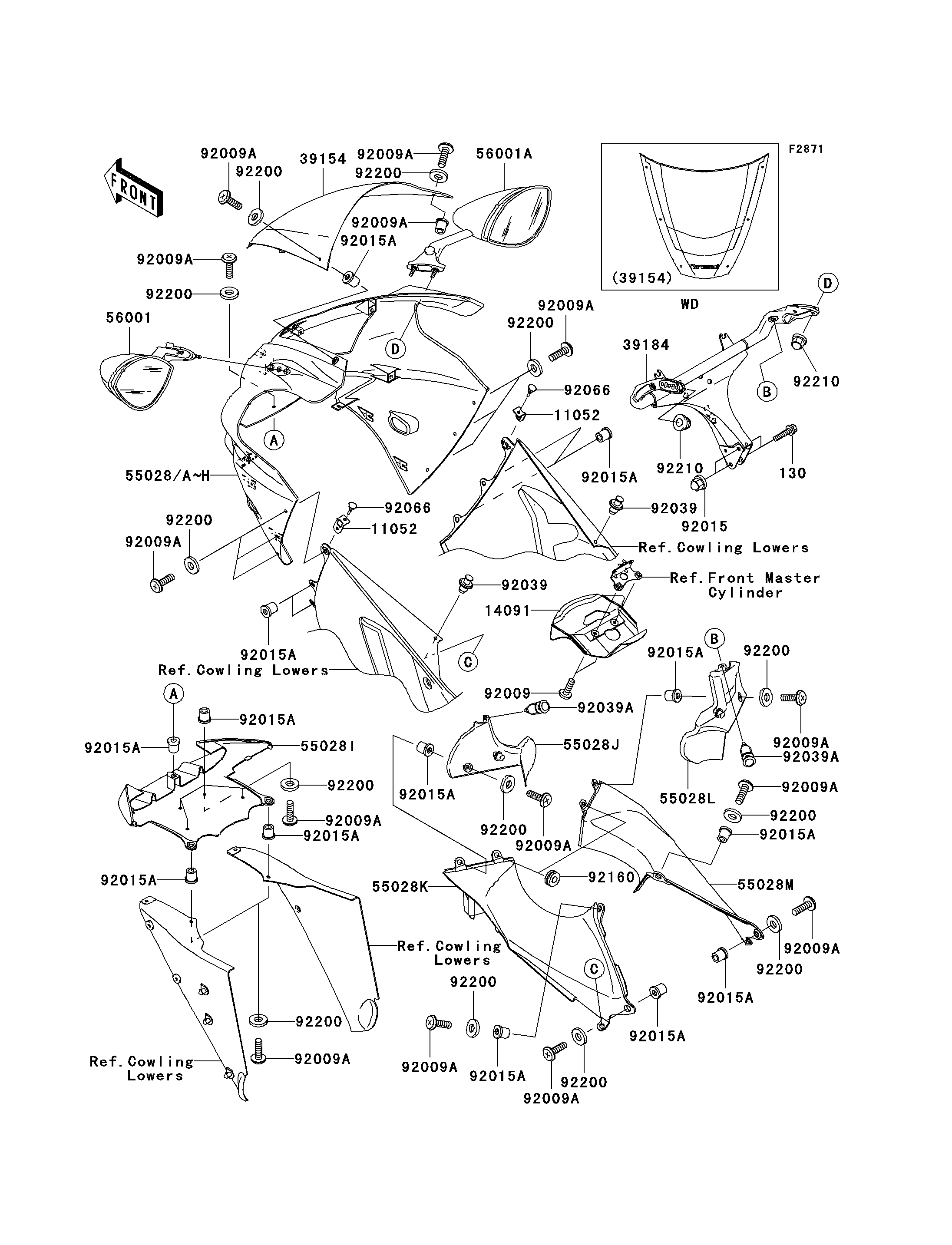

Parts Diagrams |
130
11052
11052
14091
39154
39184
55028C
55028E
55028I
55028J
55028K
55028L
55028M
56001
56001A
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92039
92039
92039A
92039A
92066
92066
92160
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X40 | 130 | 130J0840 | 2 | ||
| BRACKET | 11052 | 11052-1657 | 2 | ||
| COVER,UNDER BRACKET | 14091 | 14091-1211 | 1 | ||
| WINDSHIELD | 39154 | 39154-5018 | 1 | ||
| BRACKET-ASSY,MIRROR&METER | 39184 | 39184-1089 | 1 | ||
| COWLING,UPP,C.T.BLUE | 55028C | 55028-1425-235 | 1 | ||
| COWLING,UPP,G.SILVER | 55028E | 55028-1425-474 | 1 | ||
| COWLING,DUCT,M.F.C.GRAY | 55028I | 55028-1426-263 | 1 | ||
| COWLING,INNER,LH,FR,M.F.C.GRAY | 55028J | 55028-1434-263 | 1 | ||
| COWLING,INNER,LH,RR,M.F.C.GRAY | 55028K | 55028-1435-263 | 1 | ||
| COWLING,INNER,RH,FR,M.F.C.GRAY | 55028L | 55028-1436-263 | 1 | ||
| COWLING,INNER,RH,RR,M.F.C.GRAY | 55028M | 55028-1437-263 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-1574 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1575 | 1 | ||
| SCREW,6X10 | 92009 | 92009-1661 | 2 | ||
| SCREW,5X16 | 92009A | 92009-1909 | 21 | ||
| NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 2 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 19 | ||
| RIVET | 92039 | 92039-1227 | 2 | ||
| RIVET | 92039A | 92039-1286 | 2 | ||
| PLUG | 92066 | 92066-1576 | 2 | ||
| DAMPER | 92160 | 92160-1278 | 2 | ||
| WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 21 | ||
| NUT,CAP,6MM | 92210 | 92210-0003 | 4 | ||
| COWLING,UPP,M.S.BLACK | 55028F | 55028-1425-660 | 1 | CN |
| BOLT-FLANGED,8X40 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,UNDER BRACKET | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WINDSHIELD | |
| REF # | 39154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ASSY,MIRROR&METER | |
| REF # | 39184 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,C.T.BLUE | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,G.SILVER | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,DUCT,M.F.C.GRAY | |
| REF # | 55028I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,LH,FR,M.F.C.GRAY | |
| REF # | 55028J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,LH,RR,M.F.C.GRAY | |
| REF # | 55028K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,RH,FR,M.F.C.GRAY | |
| REF # | 55028L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,RH,RR,M.F.C.GRAY | |
| REF # | 55028M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MIRROR-ASSY,LH | |
| REF # | 56001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MIRROR-ASSY,RH | |
| REF # | 56001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 21 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 21 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,M.S.BLACK | |
| REF # | 55028F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
