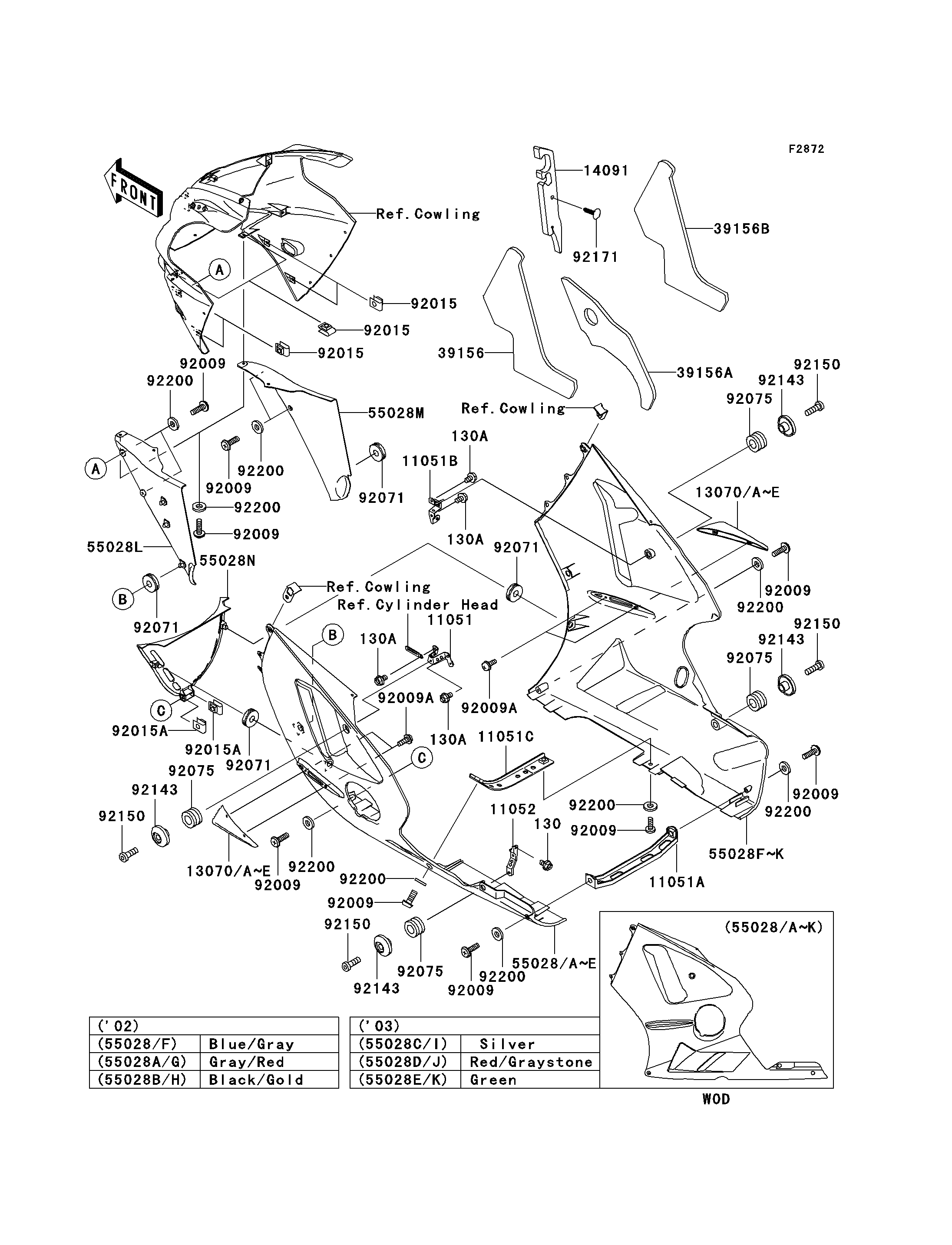

2003 Ninja® ZX™-12R - Cowling Lowers(B1/B2)
11051
11051
11051A
11051A
11051B
11051B
11051C
11051C
11052
11052
13070
13070
13070
13070
13070E
13070E
13070E
13070E
14091
14091
39156
39156
39156A
39156A
39156B
39156B
55028D
55028D
55028E
55028E
55028J
55028J
55028K
55028K
55028L
55028L
55028M
55028M
55028N
55028N
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92071
92071
92071
92071
92071
92071
92071
92071
92075
92075
92075
92075
92075
92075
92075
92075
92143
92143
92143
92143
92143
92143
92143
92143
130
130
130A
130A
130A
130A
130A
130A
130A
130A
92150
92150
92150
92150
92150
92150
92150
92150
92171
92171
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,LWR COWLING,LH,UPP | 11051 | 11051-1365 | 1 | ||
BRACKET,LWR COWLING,LH&RH,RR | 11051A | 11051-1368 | 1 | ||
BRACKET,LWR COWLING,RH,UPP | 11051B | 11051-1369 | 1 | ||
BRACKET,LWR COWLING,LWR,CNT | 11051C | 11051-1878 | 1 | ||
BRACKET,LWR COWLING,LH,LWR | 11052 | 11052-1829 | 1 | ||
GUIDE,WING,C.S.RED | 13070 | 13070-1341-ED | 2 | ||
GUIDE,WING,L.GREEN | 13070E | 13070-1341-7F | 2 | ||
COVER | 14091 | 14091-1272 | 1 | ||
PAD,LWR COWLING,LH,FR | 39156 | 39156-1716 | 1 | ||
PAD,LWR COWLING,LH,UPP | 39156A | 39156-1717 | 1 | ||
PAD,LWR COWLING,RH,FR | 39156B | 39156-1718 | 1 | ||
COWLING,LWR,LH,RED/GRAYSTONE | 55028D | 55028-1427-477 | 1 | ||
COWLING,LWR,LH,L.GREEN | 55028E | 55028-1427-7F | 1 | ||
COWLING,LWR,RH,RED/GRAYSTONE | 55028J | 55028-1428-477 | 1 | ||
COWLING,LWR,RH,L.GREEN | 55028K | 55028-1428-7F | 1 | ||
COWLING,FR,LH | 55028L | 55028-1429 | 1 | ||
COWLING,FR,RH | 55028M | 55028-1430 | 1 | ||
COWLING,FR,LWR | 55028N | 55028-1431 | 1 | ||
SCREW,5X16 | 92009 | 92009-1909 | 12 | ||
SCREW,5X14 | 92009A | 92009-1975 | 4 | ||
NUT,5MM | 92015 | 92015-1569 | 6 | ||
NUT,5MM | 92015A | 92015-1573 | 2 | ||
GROMMET | 92071 | 92071-056 | 4 | ||
DAMPER | 92075 | 92075-1634 | 4 | ||
COLLAR,BLACK | 92143 | 92143-1226 | 4 | ||
BOLT-FLANGED | 130 | 130S0610 | 1 | ||
BOLT-FLANGED,6X10 | 130A | 130V0610 | 4 | ||
BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
CLAMP | 92171 | 92171-1280 | 1 | ||
WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 12 | ||
GUIDE,WING,M.SILVER | 13070D | 13070-1341-473 | 2 | CN | |
COWLING,LWR,LH,M.SILVER | 55028C | 55028-1427-473 | 1 | CN | |
COWLING,LWR,RH,M.SILVER | 55028I | 55028-1428-473 | 1 | CN |
