Parts Diagrams

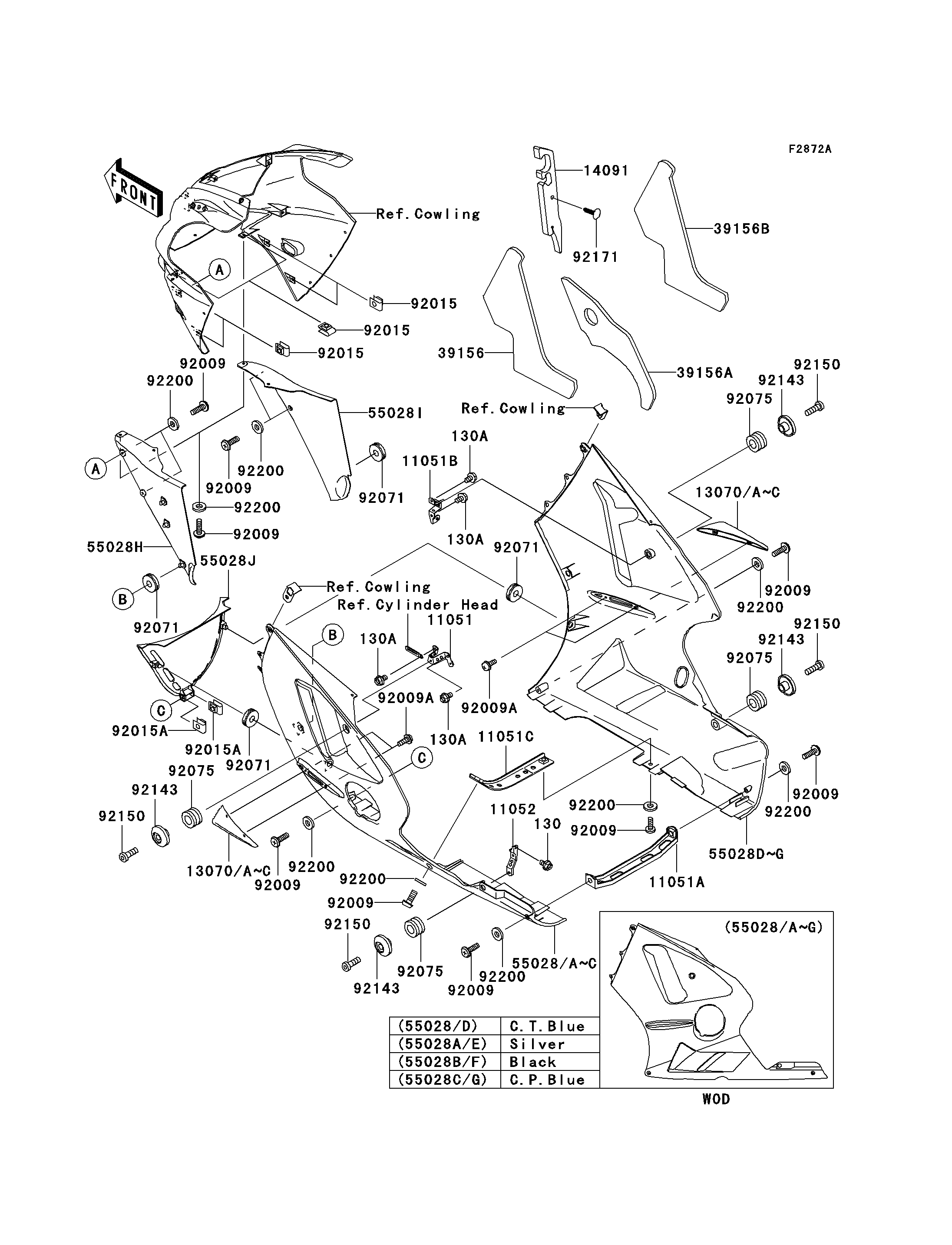

2004 Ninja® ZX™-12R - Cowling Lowers(B3/B4)

DOWNLOAD PDF

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

11051

11051A

11051B

11051C

11052

13070

13070A

14091

39156

39156A

39156B

55028

55028A

55028D

55028E

55028H

55028I

55028J

92009

92009A

92015

92015A

92071

92075

92143

92150

92171

92200

130

130A

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY	DESTINATION
BRACKET,LWR COWLING,LH,UPP	11051	11051-1365	1
BRACKET,LWR COWLING,LH&RH,RR	11051A	11051-1368	1
BRACKET,LWR COWLING,RH,UPP	11051B	11051-1369	1
BRACKET,LWR COWLING,LWR,CNT	11051C	11051-1878	1
BRACKET,LWR COWLING,LH,LWR	11052	11052-1829	1
GUIDE,WING,C.T.BLUE	13070	13070-1341-235	2
GUIDE,WING,G.SILVER	13070A	13070-1341-474	2
COVER	14091	14091-1272	1
PAD,LWR COWLING,LH,FR	39156	39156-1716	1
PAD,LWR COWLING,LH,UPP	39156A	39156-1717	1
PAD,LWR COWLING,RH,FR	39156B	39156-1718	1
COWLING,LWR,LH,C.T.BLUE	55028	55028-1427-235	1
COWLING,LWR,LH,G.SILVER	55028A	55028-1427-474	1
COWLING,LWR,RH,C.T.BLUE	55028D	55028-1428-235	1
COWLING,LWR,RH,G.SILVER	55028E	55028-1428-474	1
COWLING,FR,LH	55028H	55028-1429	1
COWLING,FR,RH	55028I	55028-1430	1
COWLING,FR,LWR	55028J	55028-1431	1
SCREW,5X16	92009	92009-1909	12
SCREW,5X14	92009A	92009-1975	4
NUT,5MM	92015	92015-1569	6
NUT,5MM	92015A	92015-1573	2
GROMMET	92071	92071-056	4
DAMPER	92075	92075-1634	4
COLLAR,BLACK	92143	92143-1226	4
BOLT,SOCKET,6X18	92150	92150-1553	4
CLAMP	92171	92171-1280	1
WASHER,NYLON,5.3X11.5X0.5	92200	92200-1480	12
BOLT-FLANGED	130	130S0610	1
BOLT-FLANGED,6X10	130A	130V0610	4
GUIDE,WING,M.S.BLACK	13070B	13070-1341-660	2	CN
COWLING,LWR,LH,M.S.BLACK	55028B	55028-1427-660	1	CN
COWLING,LWR,RH,M.S.BLACK	55028F	55028-1428-660	1	CN

BRACKET,LWR COWLING,LH,UPP
BRACKET,LWR COWLING,LH,UPP
REF #	11051
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,LWR COWLING,LH&RH,RR
BRACKET,LWR COWLING,LH&RH,RR
REF #	11051A
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,LWR COWLING,RH,UPP
BRACKET,LWR COWLING,RH,UPP
REF #	11051B
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,LWR COWLING,LWR,CNT
BRACKET,LWR COWLING,LWR,CNT
REF #	11051C
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,LWR COWLING,LH,LWR
BRACKET,LWR COWLING,LH,LWR
REF #	11052
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

GUIDE,WING,C.T.BLUE
GUIDE,WING,C.T.BLUE
REF #	13070
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

GUIDE,WING,G.SILVER
GUIDE,WING,G.SILVER
REF #	13070A
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

COVER
COVER
REF #	14091
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

PAD,LWR COWLING,LH,FR
PAD,LWR COWLING,LH,FR
REF #	39156
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

PAD,LWR COWLING,LH,UPP
PAD,LWR COWLING,LH,UPP
REF #	39156A
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

PAD,LWR COWLING,RH,FR
PAD,LWR COWLING,RH,FR
REF #	39156B
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,LWR,LH,C.T.BLUE
COWLING,LWR,LH,C.T.BLUE
REF #	55028
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,LWR,LH,G.SILVER
COWLING,LWR,LH,G.SILVER
REF #	55028A
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,LWR,RH,C.T.BLUE
COWLING,LWR,RH,C.T.BLUE
REF #	55028D
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,LWR,RH,G.SILVER
COWLING,LWR,RH,G.SILVER
REF #	55028E
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,FR,LH
COWLING,FR,LH
REF #	55028H
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,FR,RH
COWLING,FR,RH
REF #	55028I
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,FR,LWR
COWLING,FR,LWR
REF #	55028J
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

SCREW,5X16
SCREW,5X16
REF #	92009
PART NUMBER
QUANTITY	12
DESTINATION
REMARKS

SCREW,5X14
SCREW,5X14
REF #	92009A
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

NUT,5MM
NUT,5MM
REF #	92015
PART NUMBER
QUANTITY	6
DESTINATION
REMARKS

NUT,5MM
NUT,5MM
REF #	92015A
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

GROMMET
GROMMET
REF #	92071
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

DAMPER
DAMPER
REF #	92075
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

COLLAR,BLACK
COLLAR,BLACK
REF #	92143
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

BOLT,SOCKET,6X18
BOLT,SOCKET,6X18
REF #	92150
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

CLAMP
CLAMP
REF #	92171
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

WASHER,NYLON,5.3X11.5X0.5
WASHER,NYLON,5.3X11.5X0.5
REF #	92200
PART NUMBER
QUANTITY	12
DESTINATION
REMARKS

BOLT-FLANGED
BOLT-FLANGED
REF #	130
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BOLT-FLANGED,6X10
BOLT-FLANGED,6X10
REF #	130A
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

GUIDE,WING,M.S.BLACK
GUIDE,WING,M.S.BLACK
REF #	13070B
PART NUMBER
QUANTITY	2
DESTINATION	CN
REMARKS

COWLING,LWR,LH,M.S.BLACK
COWLING,LWR,LH,M.S.BLACK
REF #	55028B
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

COWLING,LWR,RH,M.S.BLACK
COWLING,LWR,RH,M.S.BLACK
REF #	55028F
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS
