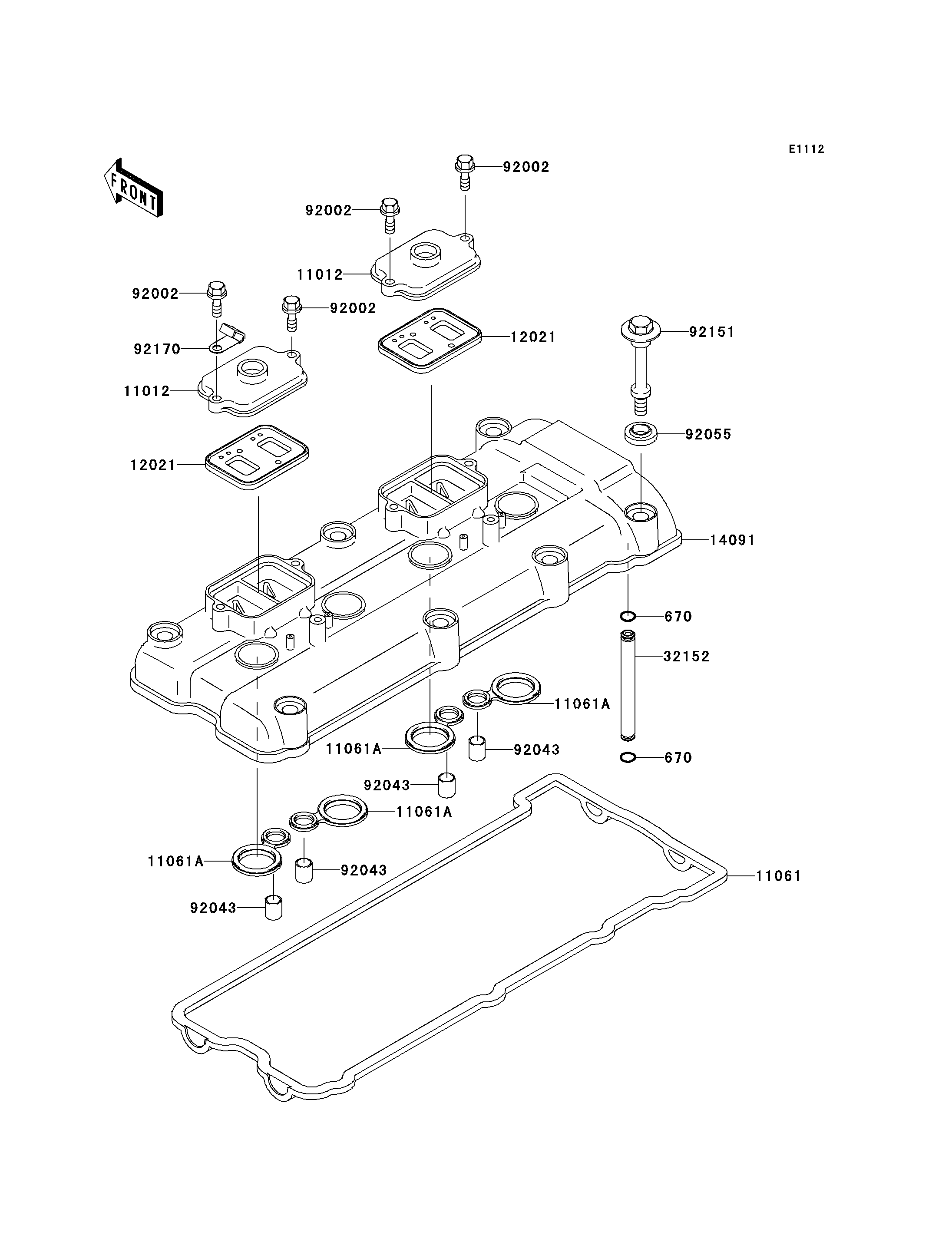

2006 Ninja® ZX™-12R (European) - Cylinder Head Cover
670
670
11012
11012
11061
11061A
11061A
11061A
11061A
12021
12021
14091
32152
92002
92002
92002
92002
92043
92043
92043
92043
92055
92151
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| O RING,7MM | 670 | 670D1507 | 2 | ||
| CAP,REED VALVE | 11012 | 11012-1758 | 2 | ||
| GASKET,HEAD COVER | 11061 | 11061-0090 | 1 | ||
| GASKET,SPARK PLUG HOLE | 11061A | 11061-0105 | 4 | ||
| VALVE-ASSY-REED | 12021 | 12021-1129 | 2 | ||
| COVER,HEAD | 14091 | 14091-0228 | 1 | ||
| PIPE,OIL | 32152 | 32152-1544 | 1 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 4 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-1352 | 7 | ||
| BOLT,HEAD COVER | 92151 | 92151-1221 | 7 | ||
| CLAMP,HARNESS | 92170 | 92170-1900 | 1 |
