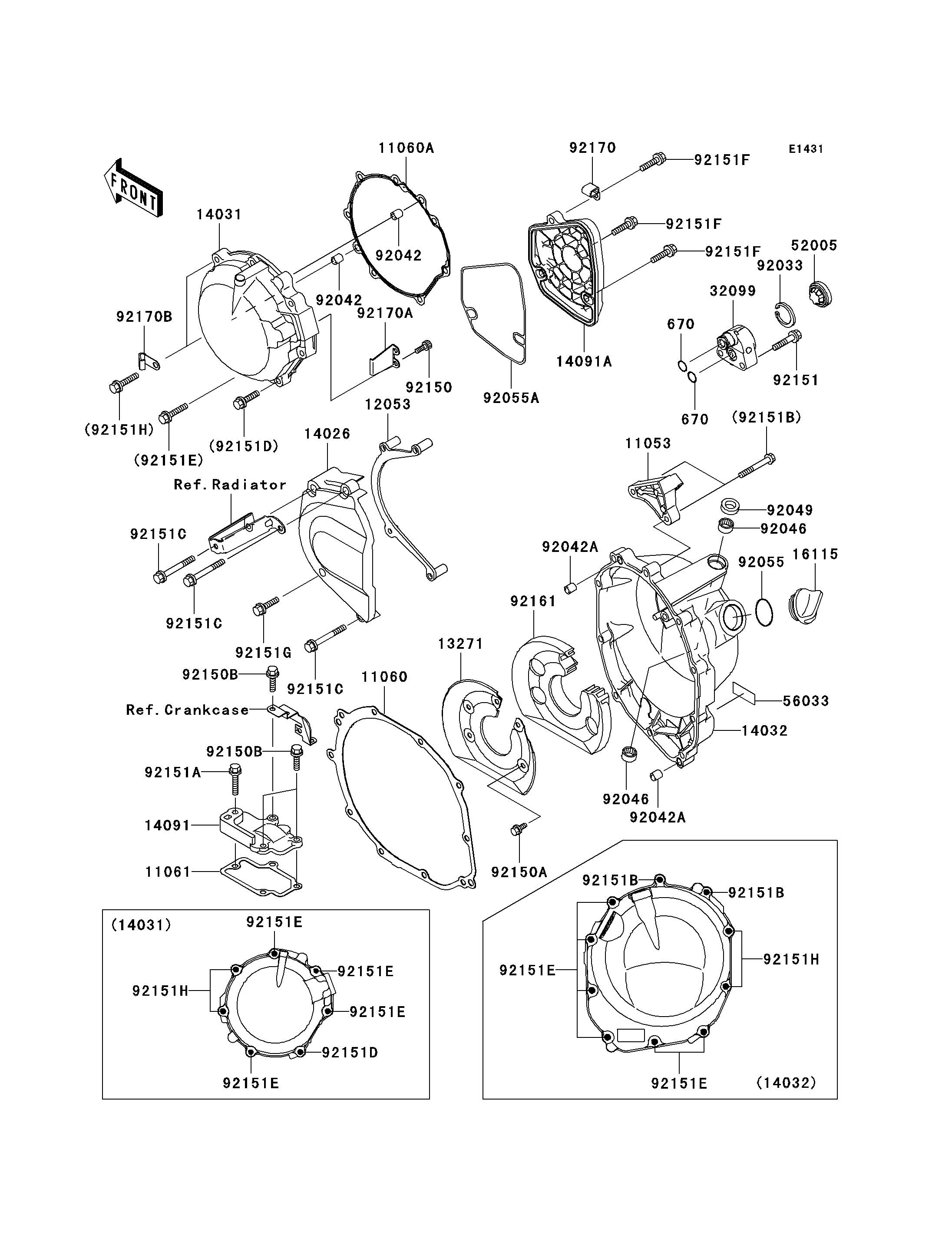

2006 Ninja® ZX™-12R (European) - Engine Cover(s)
670
670
11053
11060
11060A
11061
12053
13271
14026
14031
14032
14091
14091A
16115
32099
52005
56033
92033
92042
92042
92042A
92042A
92046
92046
92049
92055
92055A
92150
92150A
92150B
92150B
92151
92151A
92151B
92151B
92151C
92151C
92151C
92151D
92151E
92151E
92151E
92151E
92151E
92151E
92151F
92151F
92151F
92151G
92151H
92151H
92161
92170
92170A
92170B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
O RING,12MM | 670 | 670D2012 | 2 | ||
BRACKET,CABLE | 11053 | 11053-1283 | 1 | ||
GASKET,CLUTCH COVER | 11060 | 11060-1910 | 1 | ||
GASKET,GENERATOR COVER | 11060A | 11060-1911 | 1 | ||
GASKET,BREATHER COVER | 11061 | 11061-1087 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-1434 | 1 | ||
PLATE,SOUND ARRESTER | 13271 | 13271-1229 | 1 | ||
COVER-CHAIN | 14026 | 14026-1266 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1404 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1498 | 1 | ||
COVER,BREATHER | 14091 | 14091-1129 | 1 | ||
COVER,PULSING | 14091A | 14091-1446 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
CASE,OIL GAUGE | 32099 | 32099-1213 | 1 | ||
GAUGE | 52005 | 52005-1120 | 1 | ||
LABEL-MANUAL,OIL CAPACITY | 56033 | 56033-1203 | 1 | ||
RING-SNAP | 92033 | 92033-1305 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 2 | ||
PIN,DOWEL,8X22 | 92042A | 92042-044 | 2 | ||
BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 2 | ||
SEAL-OIL,CLUTCH RELEASE | 92049 | 92049-1475 | 1 | ||
RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
RING-O | 92055A | 92055-1601 | 1 | ||
BOLT,SOCKET,5X14 | 92150 | 92150-1180 | 2 | ||
BOLT,5X8 | 92150A | 92150-1406 | 5 | ||
BOLT,6X22 | 92150B | 92150-1846 | 3 | ||
BOLT,6X30 | 92151 | 92151-1134 | 2 | ||
BOLT,6X30 | 92151A | 92151-1139 | 1 | ||
BOLT,6X45 | 92151B | 92151-1521 | 2 | ||
BOLT,6X50 | 92151C | 92151-1545 | 3 | ||
BOLT,FLANGED,6X25 | 92151D | 92151-1546 | 1 | ||
BOLT,6X30 | 92151E | 92151-1547 | 10 | ||
BOLT,6X25 | 92151F | 92151-1556 | 3 | ||
BOLT | 92151G | 92151-1773 | 1 | ||
BOLT,6X30 | 92151H | 92151-1883 | 4 | ||
DAMPER,SOUND ARRESTER | 92161 | 92161-1056 | 1 | ||
CLAMP | 92170 | 92170-1577 | 1 | ||
CLAMP | 92170A | 92170-1579 | 1 | ||
CLAMP,HARNESS | 92170B | 92170-1900 | 2 |
