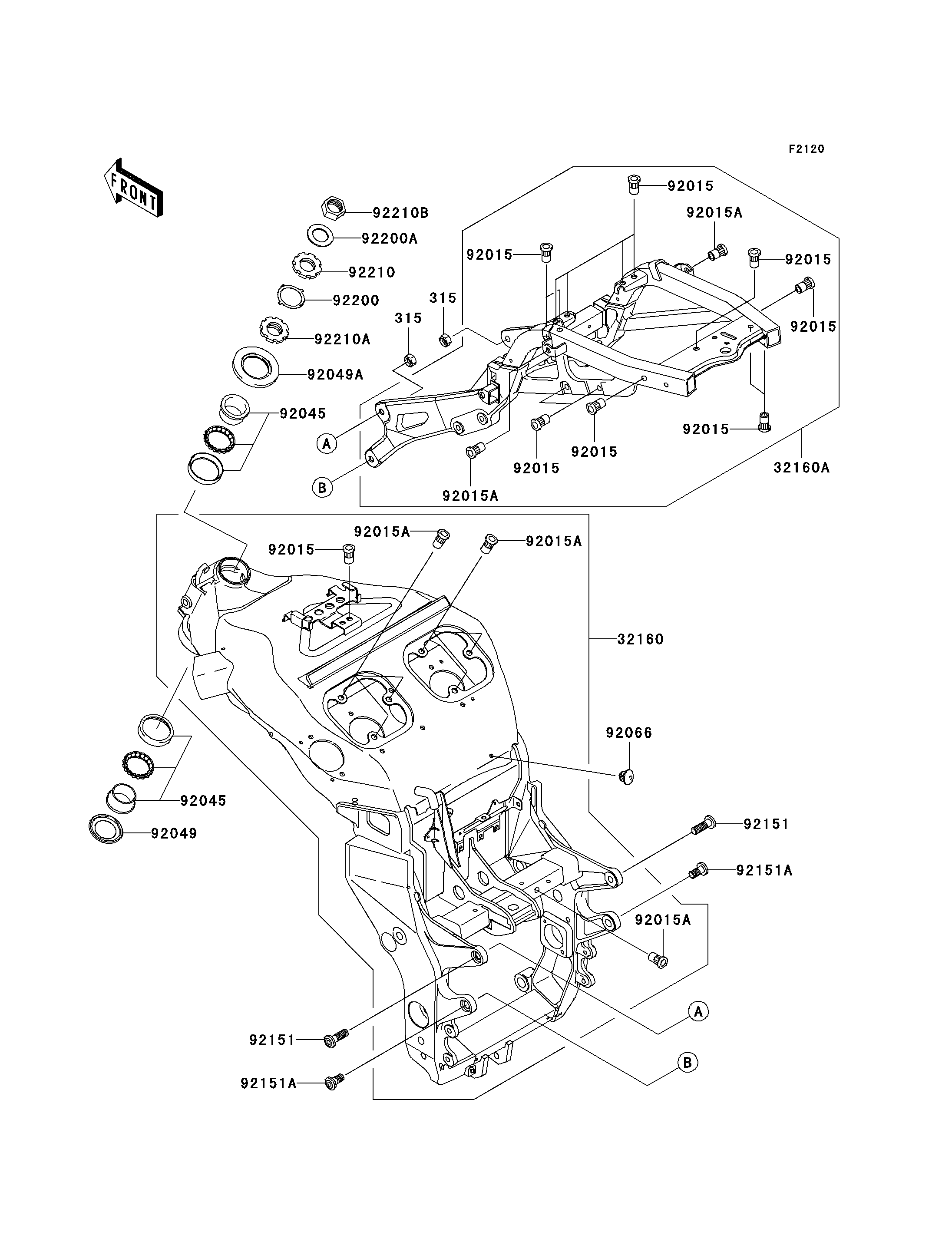

2006 Ninja® ZX™-12R (European) - Frame
315
315
32160
32160A
92015
92015
92015
92015
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92045
92045
92049
92049A
92066
92151
92151
92151A
92151A
92200
92200A
92210
92210A
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX-FINE,10MM | 315 | 315G1000 | 2 | ||
FRAME-COMP,AL,FR,F.S.BLACK | 32160 | 32160-1774-8F | 1 | ||
FRAME-COMP,AL,RR,F.S.BLACK | 32160A | 32160-1778-8F | 1 | ||
NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 14 | ||
NUT,POP,6MM,L=16.5 | 92015A | 92015-1792 | 9 | ||
BEARING-BALL,SF07A17PX1V1 | 92045 | 92045-1384 | 2 | ||
SEAL-OIL,DS35X55X4 | 92049 | 92049-0022 | 1 | ||
SEAL-OIL,XMH 43 75 6.4J | 92049A | 92049-1382 | 1 | ||
PLUG | 92066 | 92066-1547 | 1 | ||
BOLT,SOCKET,10X30 | 92151 | 92151-1372 | 2 | ||
BOLT,SOCKET,10X20 | 92151A | 92151-1557 | 2 | ||
WASHER | 92200 | 92200-0036 | 1 | ||
WASHER,25.5X42X2.3 | 92200A | 92200-1084 | 1 | ||
NUT,STEERING STEM 35MM | 92210 | 92210-0062 | 1 | ||
NUT,STEERING STEM,35MM | 92210A | 92210-0077 | 1 | ||
NUT,25MM | 92210B | 92210-1334 | 1 |
