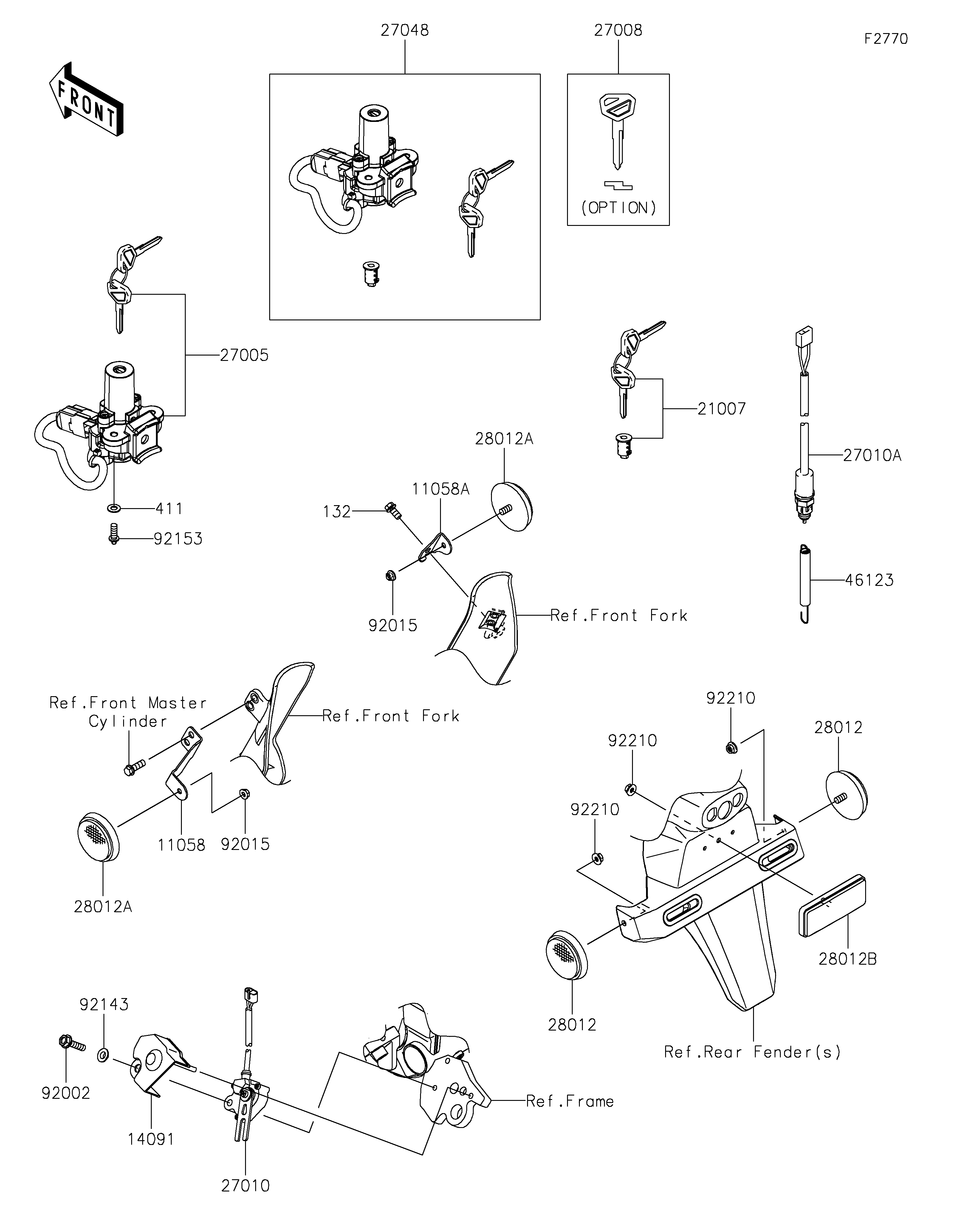

2024 KLX®300 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
14091
21007
27005
27008
27010
27010A
27048
28012
28012
28012A
28012A
28012B
46123
92002
92015
92015
92143
92153
92210
92210
92210
132
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,FR,LH 11058 11058-0865 1
BRACKET,REFLECTOR,FR,RH 11058A 11058-1055 1
COVER,SIDE STAND SWITCH 14091 14091-1553 1
ROTOR,LOCK,TANK CAP 21007 21007-5035 1
SWITCH-ASSY-IGNITION 27005 27005-0697 1
KEY-LOCK,BLANK 27008 27008-1170 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0097 1
SWITCH,REAR BRAKE 27010A 27010-1489 1
SWITCH-ASSY 27048 27048-5315 1
REFLECTOR-REFLEX 28012 28012-0002 2
REFLECTOR-REFLEX,FR 28012A 28012-016 2
REFLECTOR-REFLEX 28012B 28012-1077 1
SPRING-COMP,REAR BRAKE SWITCH 46123 46123-0008 1
BOLT,FLANGED,6X25 92002 92002-1582 1
NUT,FLANGED,5MM 92015 92015-1259 2
COLLAR 92143 92143-1331 1
BOLT,TORX,6X16 92153 92153-1426 2
NUT,FLANGED,5MM 92210 92210-0007 3
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
WASHER-PLAIN,6MM 411 411AA0600 2
