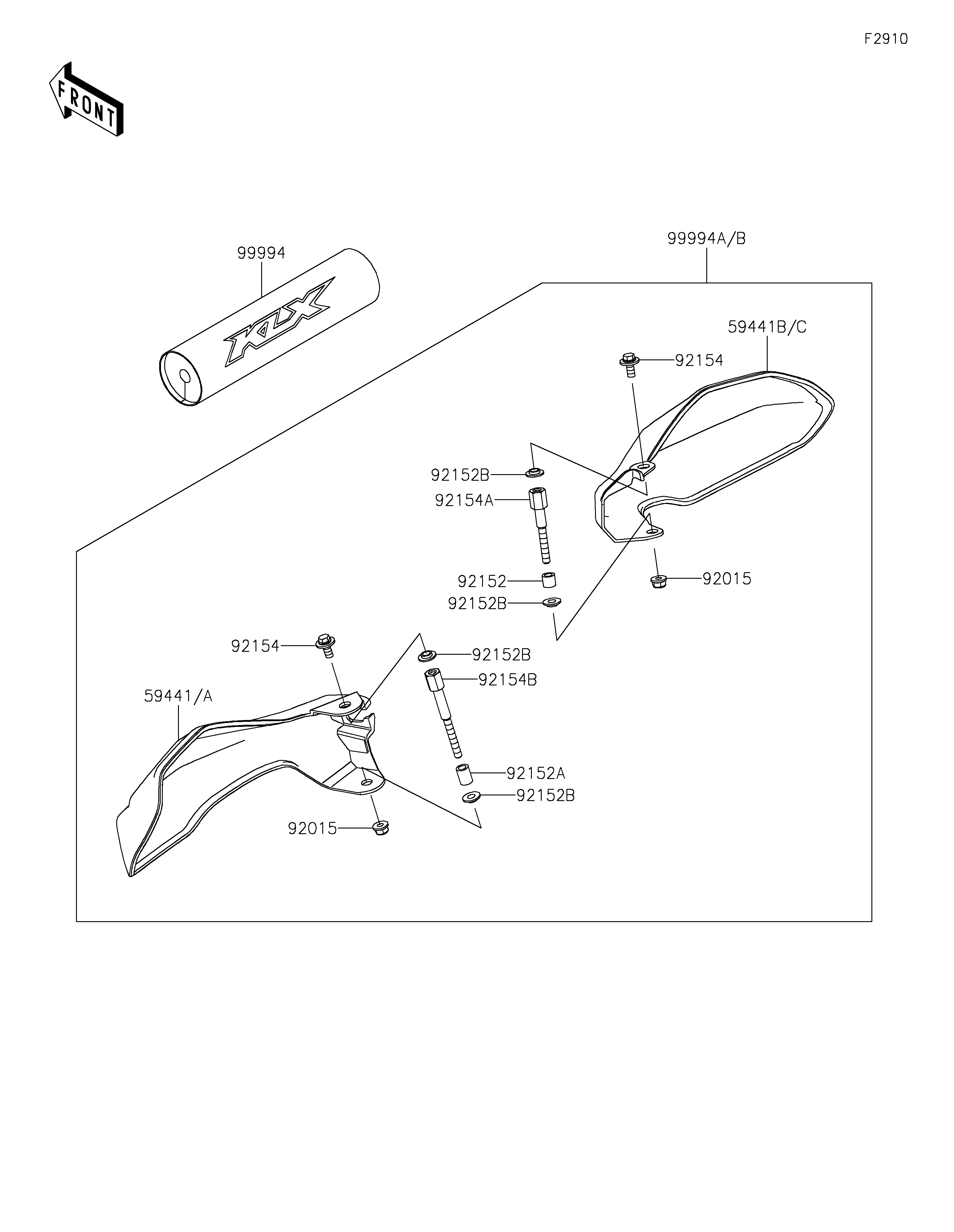

2024 KLX®300 - Accessory(Handle)

DOWNLOAD PDF
SELECT A NEW PART
59441
59441B
92015
92015
92152
92152A
92152B
92152B
92152B
92152B
92154
92154
92154A
92154B
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-HANDLE,LH,EBONY 59441 59441-0045-68L 1
COVER-HANDLE,RH,EBONY 59441B 59441-0050-68L 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
COLLAR,6.5X10.5X9.3 92152 92152-1992 1
COLLAR,6.5X10.5X14 92152A 92152-2302 1
COLLAR,6.5X15X3.4 92152B 92152-2314 4
BOLT,FLANGED-WP,6X14 92154 92154-1576 2
BOLT 92154A 92154-1670 1
BOLT 92154B 92154-2359 1
HANDLE-BAR PAD 99994 99994-1274 1
HAND COVER,EBONY 99994A 99994-1996-68L 1
