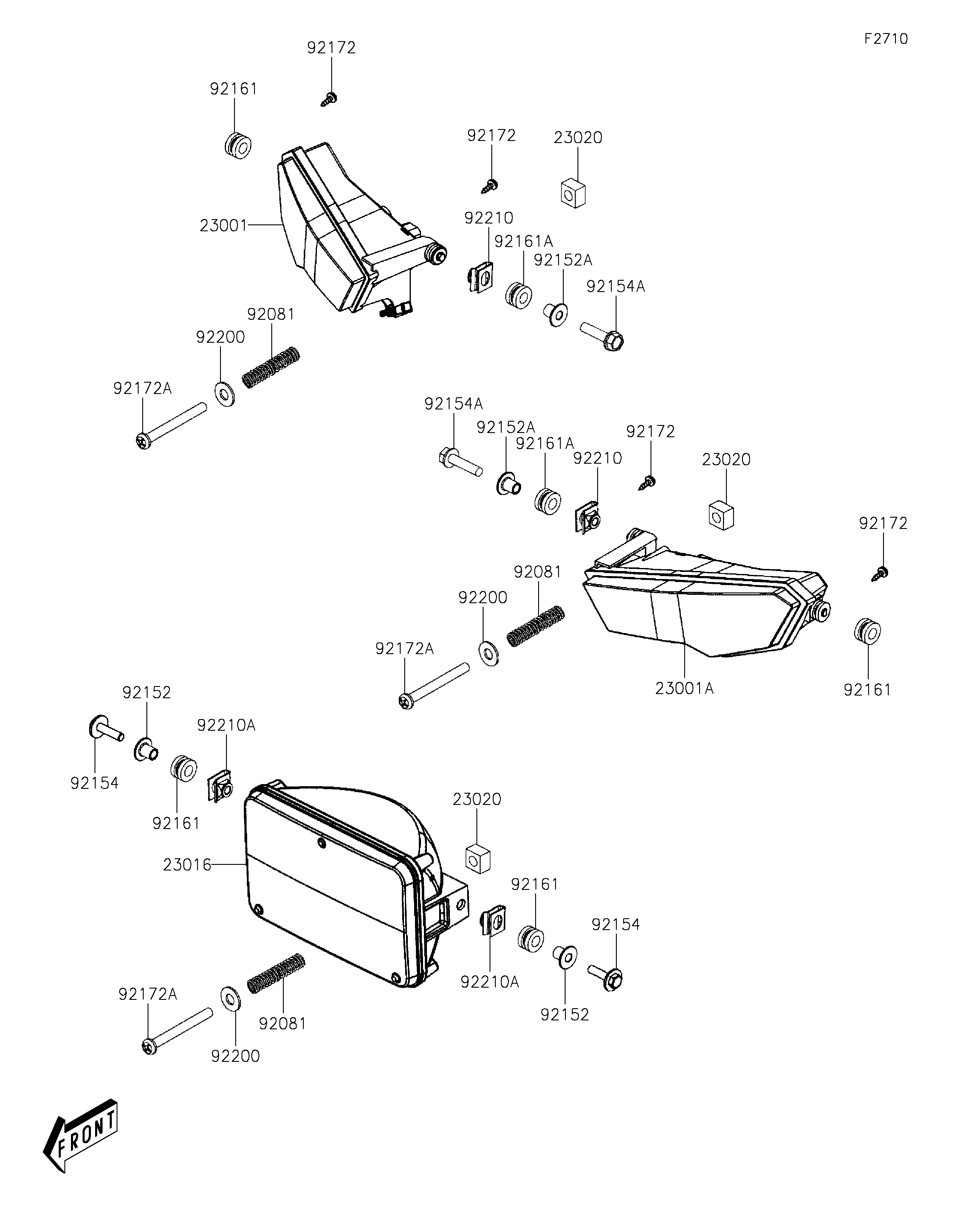

2025 BRUTE FORCE® 450 4x4 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
23001
23001A
23016
23020
23020
23020
92081
92081
92081
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92161
92161
92161
92161
92161A
92161A
92172
92172
92172
92172
92172A
92172A
92172A
92200
92200
92200
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY-HEAD,RH 23001 23001-Y005 1
LAMP-ASSY-HEAD,LH 23001A 23001-Y006 1
LAMP-ASSY,WORK 23016 23016-Y005 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 3
SPRING,FOCUS ADJUST 92081 92081-1896 3
COLLAR 92152 92152-Y013 2
COLLAR 92152A 92152-Y090 2
BOLT,6X25 92154 92154-Y099 2
BOLT,FLANGE,6X28 92154A 92154-Y244 2
DAMPER 92161 92161-Y006 4
DAMPER 92161A 92161-Y066 2
SCREW,TAPPING,5X12 92172 92172-Y038 4
SCREW,PAN,4X40 92172A 92172-Y098 3
WASHER,PLAIN,4.5X10X0.8 92200 92200-Y126 3
NUT,6MM 92210 92210-Y011 2
NUT,6MM 92210A 92210-Y089 2
