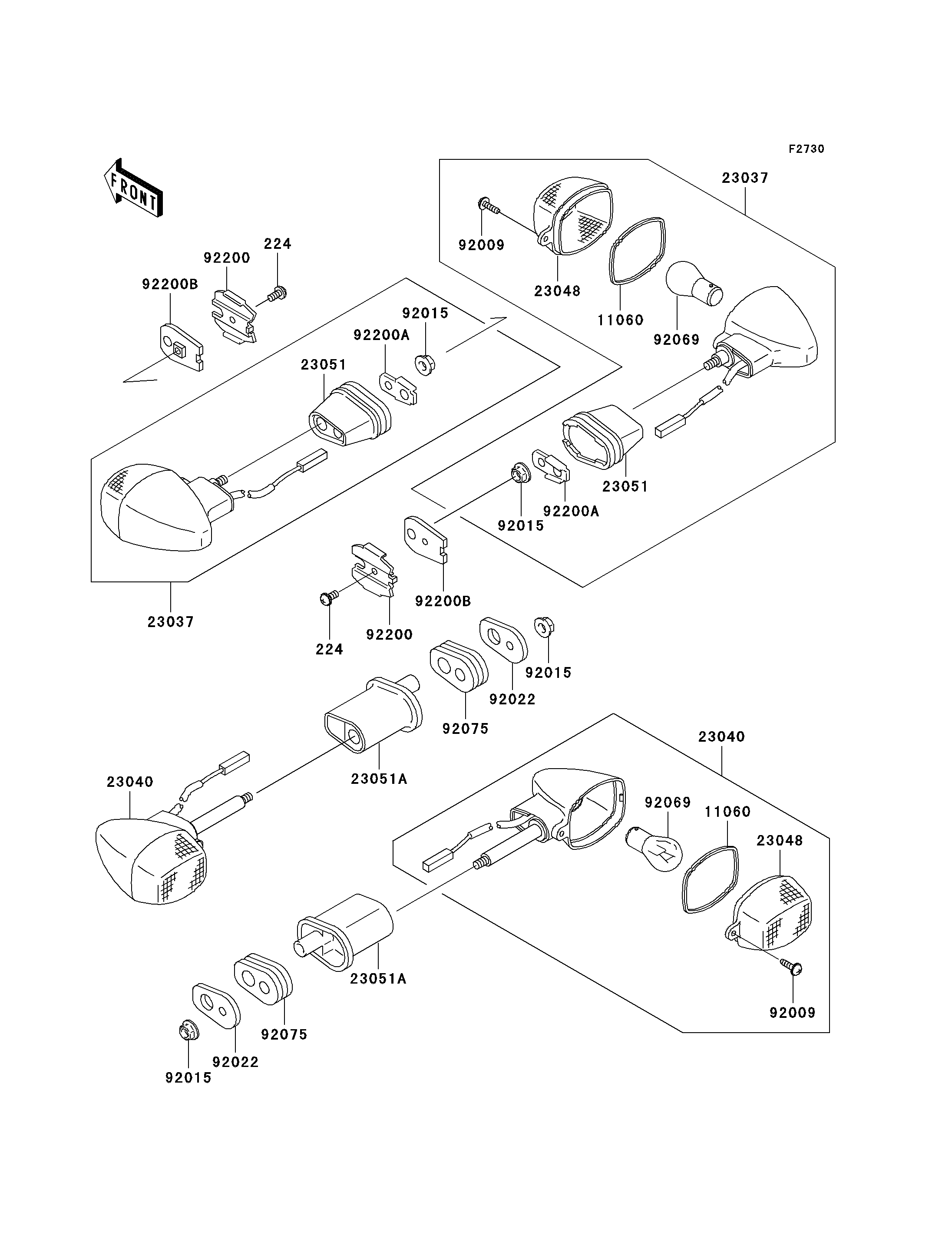

2006 Ninja® ZX™-12R (European) - Turn Signals
224
224
11060
11060
23037
23037
23040
23040
23048
23048
23051
23051
23051A
23051A
92009
92009
92015
92015
92015
92015
92022
92022
92069
92069
92075
92075
92200
92200
92200A
92200A
92200B
92200B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-WP-CROS,4X8 | 224 | 224C0408 | 2 | ||
GASKET,SIGNAL LAMP | 11060 | 11060-1826 | 4 | ||
LAMP-ASSY-SIGNAL,FR | 23037 | 23037-1392 | 2 | ||
LAMP-SIGNAL,RR | 23040 | 23040-1284 | 2 | ||
LENS-SIGNAL LAMP | 23048 | 23048-1168 | 4 | ||
BRACKET-SIGNAL LAMP,FR | 23051 | 23051-1207 | 2 | ||
BRACKET-SIGNAL LAMP | 23051A | 23051-1248 | 2 | ||
SCREW,TAPPING,4X12,BLACK | 92009 | 92009-1142 | 4 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
WASHER,SIGNAL LAMP | 92022 | 92022-1672 | 2 | ||
BULB,12V 21W | 92069 | 4 | (LOCAL PROCUREMENT ITEM) | ||
DAMPER,SIGNAL LAMP | 92075 | 92075-1698 | 2 | ||
WASHER,SIGNAL LAMP | 92200 | 92200-1016 | 2 | ||
WASHER | 92200A | 92200-1021 | 2 | ||
WASHER,SIGNAL LAMP | 92200B | 92200-1520 | 2 |
