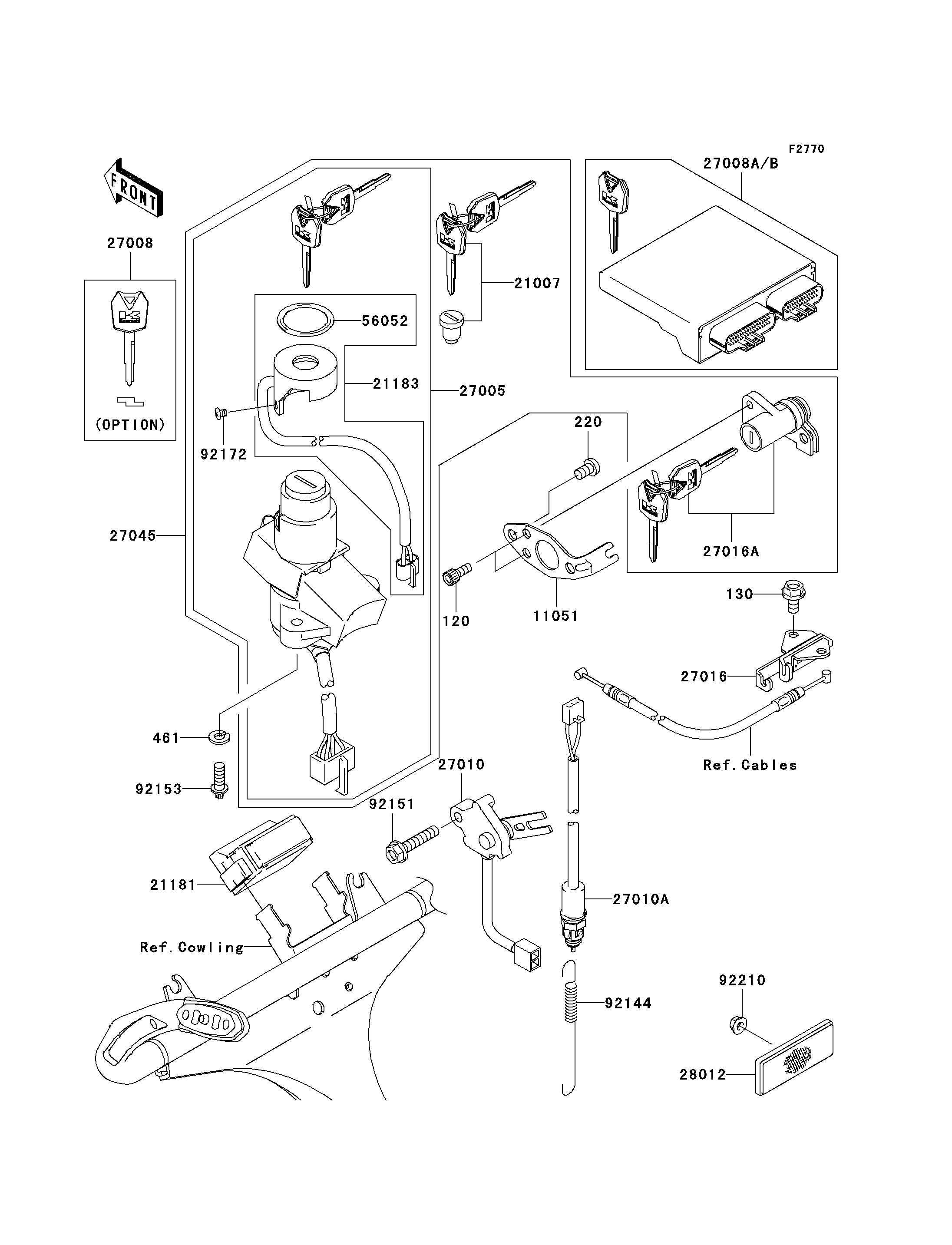

2006 Ninja® ZX™-12R (European) - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
130
220
461
11051
21007
21181
21183
27005
27008
27010
27010A
27016
27016A
27045
28012
56052
92144
92151
92153
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120S0512 2
BOLT-FLANGED,6X12 130 130J0612 2
SCREW-PAN-CROSS,6X10 220 220F0610 2
WASHER-SPRING 461 461L0600 2
BRACKET,SEAT LOCK 11051 11051-1370 1
ROTOR,LOCK,TANK CAP 21007 21007-5056 1
AMPLIFIER,IMMOBILIZER 21181 21181-0001 1
ANTENNA,IMMOBILIZER 21183 21183-0002 1
SWITCH-ASSY-IGNITION 27005 27005-5129 1
KEY-LOCK,BLANK,IMMOBILIZER,SUB 27008 27008-0029 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1461 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5310 1
SWITCH-ASSY 27045 27045-5237 1
REFLECTOR-REFLEX 28012 28012-1077 1
MARK,IMMOBILIZER 56052 56052-0292 1
SPRING,REAR BRAKE SWITCH 92144 92144-1753 1
BOLT,FLANGED,6X30 92151 92151-1216 1
BOLT,TORX,6X16 92153 92153-0967 2
SCREW,4X8 92172 92172-0188 2
NUT,FLANGED,5MM 92210 92210-0007 1
MASTER KEY SET(BLANK),IMMOBI 27008A 27008-5004 1 UKWV
MASTER KEY SET(BLANK),IMMOBI 27008B 27008-5006 1 FR
