Parts Diagrams |
132
132
172
172
410
410
411
411
670
670
670A
670A
670A
670A
670A
670A
11009
11009
11009
11009
11009
11009
11009
11009
12053
12053
14001
14001
14013
14013
14013
14013
14014
14014
14014A
14014A
32033
32033
32033A
32033A
32151
32151
39170
39170
39193
39193
92001
92001
92001
92001
92002
92002
92002A
92002A
92002B
92002B
92022
92022
92027
92027
92037
92037
92042
92042
92043
92043
92043
92043
92043A
92043A
92043B
92043B
92043C
92043C
92043C
92043C
92055
92055
92055A
92055A
92066
92066
92066A
92066A
92075
92075
92081
92081
92081A
92081A
92150
92150
92150A
92150A
92191
92191
92200
92200
670B
670B
670B
670B
670B
670B
670B
670B

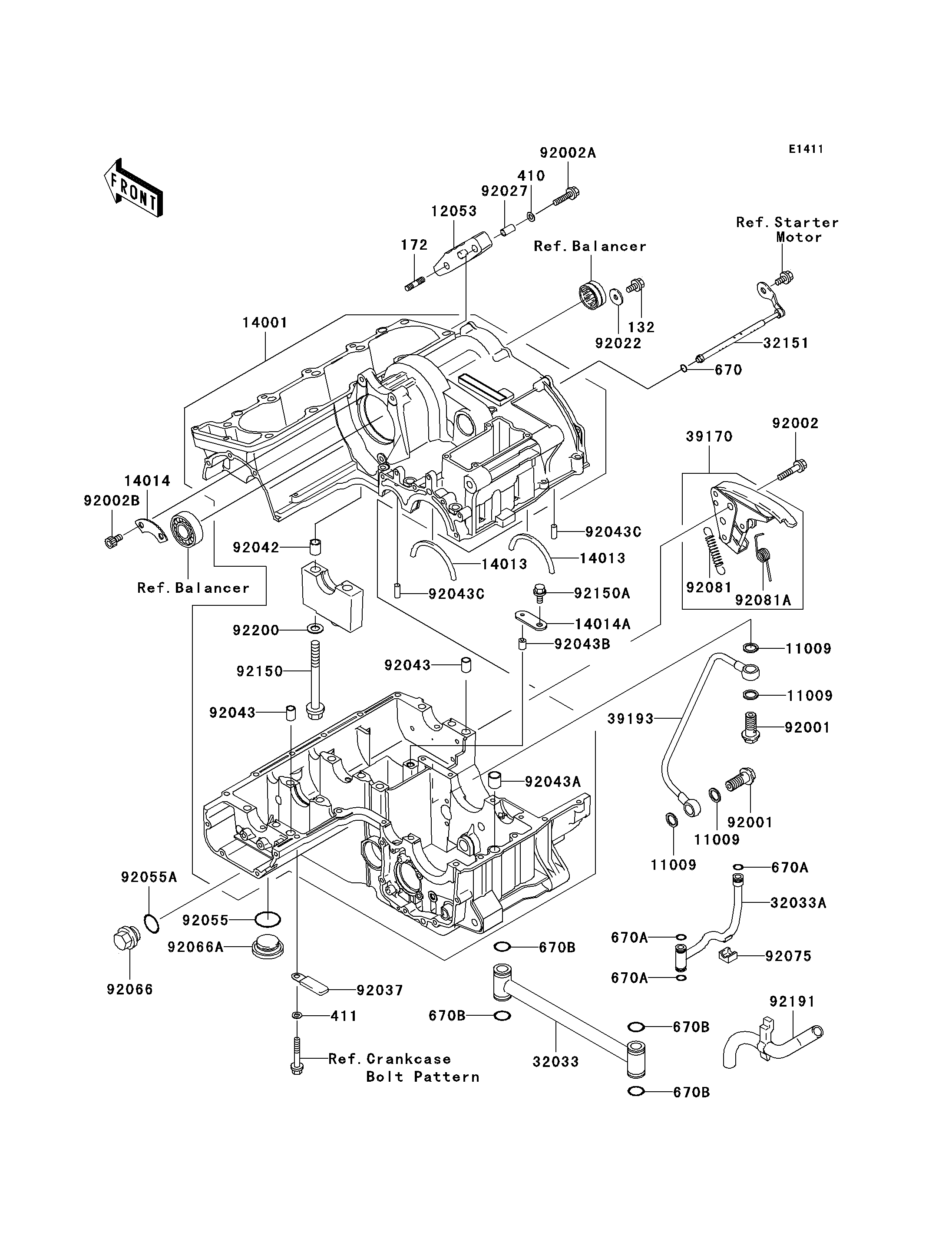

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0612 | 1 | ||
BOLT-STUD,6X16 | 172 | 172G0616 | 1 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
WASHER-PLAIN,6MM,BLACK | 411 | 411F0600 | 1 | ||
O RING,6MM | 670 | 670B1506 | 1 | ||
O RING,9MM | 670A | 670D1509 | 3 | ||
GASKET,12.5X18X1.5 | 11009 | 11009-1376 | 4 | ||
GUIDE-CHAIN | 12053 | 12053-1189 | 1 | ||
SET-CRANKCASE | 14001 | 14001-1301 | 1 | ||
RING-POSITION,T=1.98 | 14013 | 14013-1005 | 2 | ||
PLATE-POSITION | 14014 | 14014-1056 | 1 | ||
PLATE-POSITION | 14014A | 14014-1155 | 1 | ||
PIPE,MAIN GALLARY | 32033 | 32033-1201 | 1 | ||
PIPE | 32033A | 32033-1202 | 1 | ||
PIPE,OIL | 32151 | 32151-1482 | 1 | ||
TENSIONER-COMP | 39170 | 39170-1059 | 1 | ||
PIPE-OIL | 39193 | 39193-1044 | 1 | ||
BOLT,BANJO,12X23 | 92001 | 92001-1871 | 2 | ||
BOLT,6X30 | 92002 | 92002-1534 | 2 | ||
BOLT,6X25 | 92002A | 92002-1609 | 1 | ||
BOLT,SOCKET,6X12 | 92002B | 92002-1796 | 2 | ||
WASHER,6X19.5X2 | 92022 | 92022-1517 | 1 | ||
COLLAR,6.2X8.1X15 | 92027 | 92027-1079 | 1 | ||
CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
PIN,DOWEL,12X14 | 92042 | 92042-031 | 2 | ||
PIN,DOWEL,10X14 | 92043 | 92043-1037 | 2 | ||
PIN,11.5X14X14 | 92043A | 92043-1279 | 1 | ||
PIN,BALANCER | 92043B | 92043-1281 | 1 | ||
PIN,6X16 | 92043C | 92043-1690 | 2 | ||
RING-O | 92055 | 92055-091 | 1 | ||
RING-O | 92055A | 92055-1146 | 1 | ||
PLUG,MAIN GALLERY,18X9,BLACK | 92066 | 92066-1096 | 1 | ||
PLUG,25X8 | 92066A | 92066-1161 | 1 | ||
DAMPER,PIPE | 92075 | 92075-1785 | 1 | ||
SPRING | 92081 | 92081-1668 | 1 | ||
SPRING | 92081A | 92081-1971 | 1 | ||
BOLT,9X90 | 92150 | 92150-1364 | 2 | ||
BOLT,6X12 | 92150A | 92150-1868 | 1 | ||
TUBE,BREATHER | 92191 | 92191-1775 | 1 | ||
WASHER,9.5X18X1.2 | 92200 | 92200-1037 | 2 | ||
O RING,16MM | 670B | 670D2016 | 4 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-STUD,6X16 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,6MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,6MM,BLACK | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,6MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,9MM | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
GASKET,12.5X18X1.5 | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-POSITION,T=1.98 | |
REF # | 14013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,MAIN GALLARY | |
REF # | 32033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,OIL | |
REF # | 32151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TENSIONER-COMP | |
REF # | 39170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL | |
REF # | 39193 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BANJO,12X23 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X30 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X12 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6X19.5X2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,6.2X8.1X15 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,L=45 | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,12X14 | |
REF # | 92042 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,DOWEL,10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,11.5X14X14 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,BALANCER | |
REF # | 92043B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6X16 | |
REF # | 92043C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,MAIN GALLERY,18X9,BLACK | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,25X8 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,PIPE | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,9X90 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,9.5X18X1.2 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
O RING,16MM | |
REF # | 670B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
